Chapter 2 Installing the LCD TV

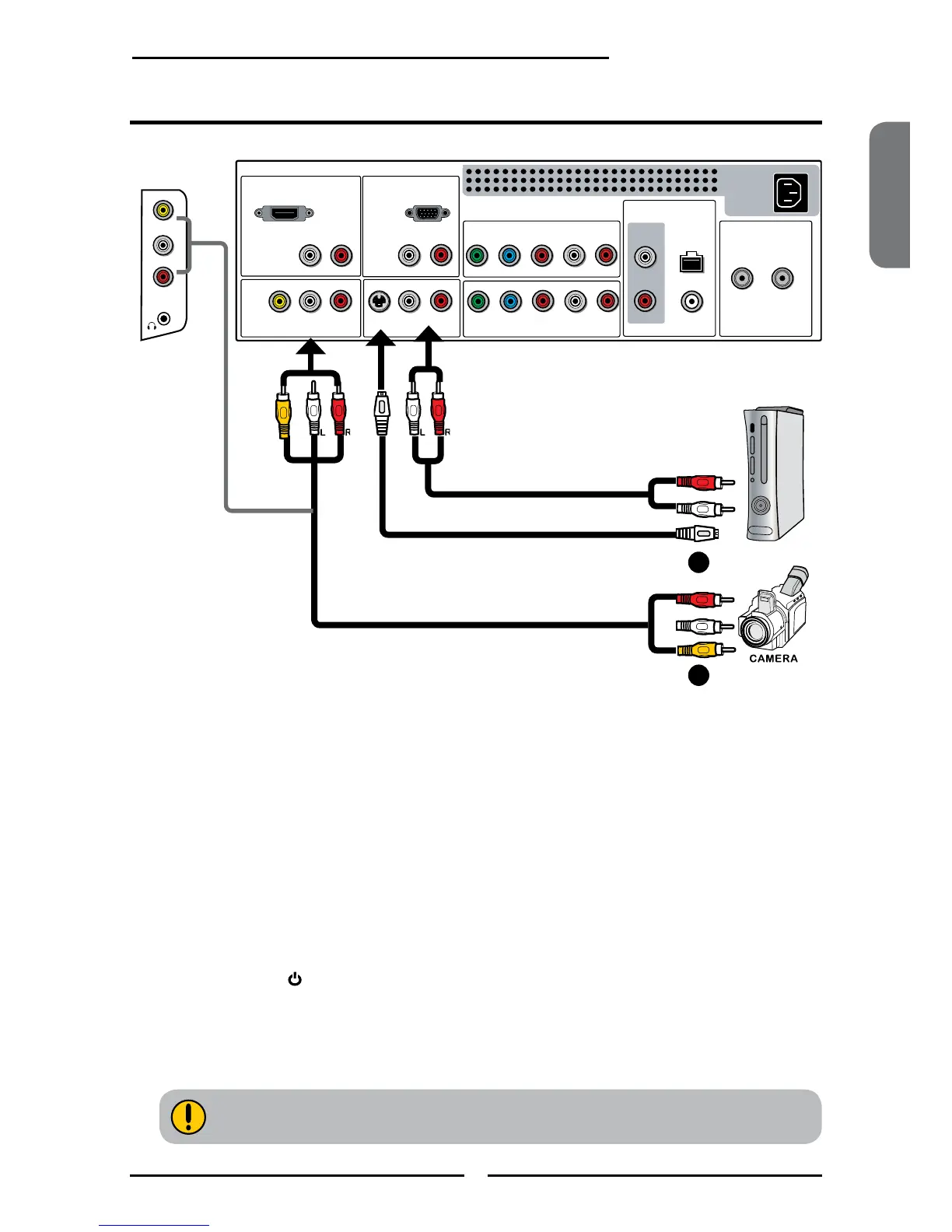

 METHOD A:
Use a composite cable to connect the video camera’s or play station’s composite video/
audio jacks to the LCD TV’s VIDEO2 IN jacks or VIDEO1 IN jacks.
METHOD B:
Use an audio cable to connect the video camera’s or play station’s audio output jacks to
the LCD TV’s audio inputs. Use a S-Video cable to connect the video camera’s or play
station’s s-video output jack to the LCD TV’s S-VIDEO IN input jack.
 Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
 Press the button on the remote to turn on the LCD TV.
 To watch a video vis camera or play station, press the Input button on the remote to
select VIDEO2/VIDEO1( METHOD A), or VIDEO3 (METHOD B).
Connecting a Video Camera or Play Station
Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility.
