A B
HDMI IN
AUD IO
LR
LR LR
LR
L
RLR
LR
AUD IO
VGA IN
VIDEO2 IN
VIDEO AUD IO
S-VIDEO IN
S-VIDEO AUD IO
YPbPr1 IN
AUD IO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
TV
CABLE
HDTV
AIR
VHF/UHF IN
Y Pb Pr AUD IO
YPbPr2 IN
Y Pb Pr AUD IO
Rear of TV
AUDIO Cable
S-VIDEO Cable
AV Cable
A
B
HDMI IN
AUD IO
LR
LR LR
LR
L
RLR
LR
AUD IO
VGA IN
VIDEO2 IN
VIDEO AUD IO
S-VIDEO IN
S-VIDEO AUD IO
YPbPr1 IN
AUD IO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
TV
CABLE
HDTV
AIR
VHF/UHF IN
YPbPr AUDIO
YPbPr2 IN
YPbPr AUDIO
Rear of TV
L
R
VIDEO1 IN
VIDEO
AUDI O
Right Side
or
AUDIO Cable
S-VIDEO Cable
AV Cable
18
Chapter 2 Installing the LCD TV
ENGLISH
19
Chapter 2 Installing the LCD TV

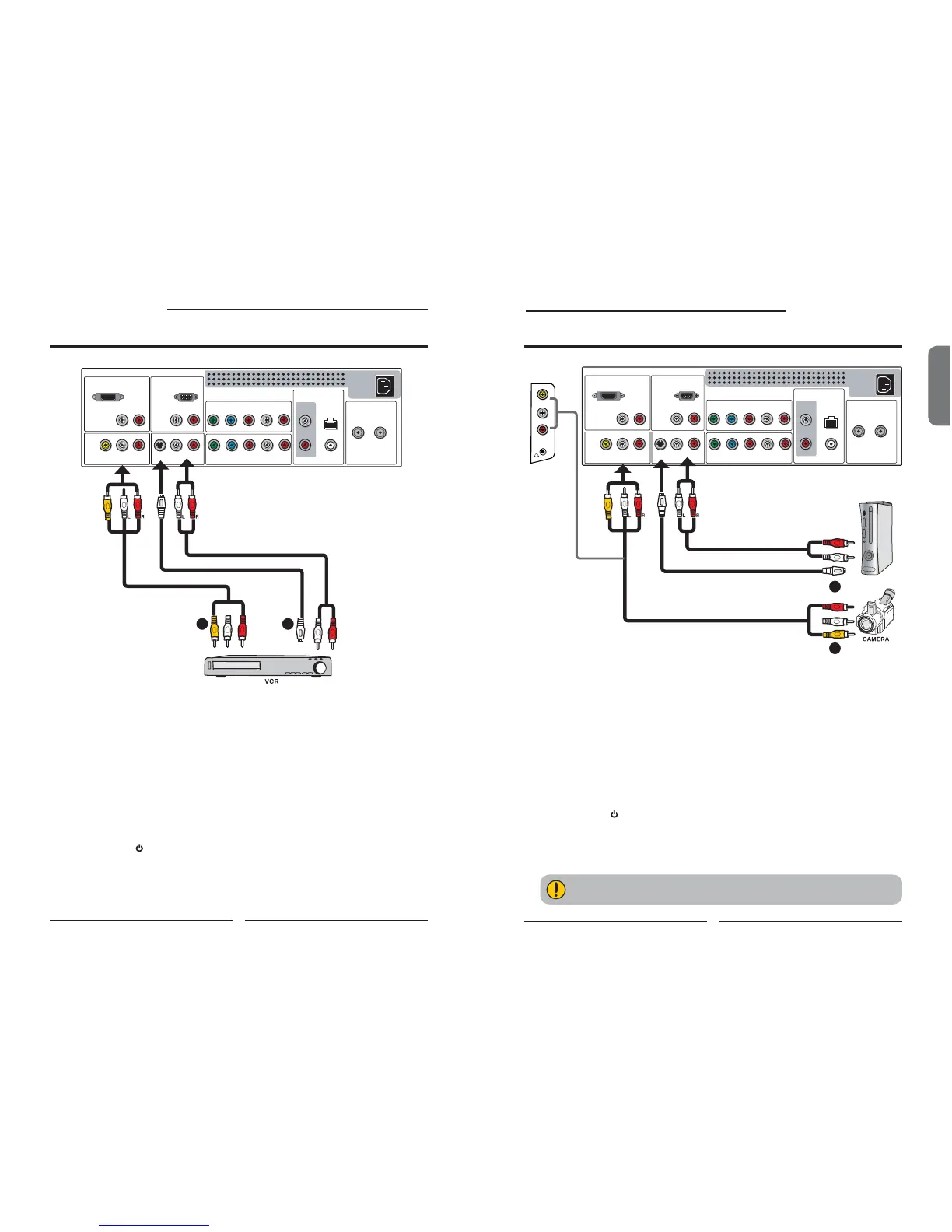

METHOD A:
Use a composite cable to connect the VCR’s composite video/audio jacks to the LCD TV’s
VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the VCR’s audio output jacks to the LCD TV’s audio
inputs. Use a S-Video cable to connect the VCR’s s-video output jack to the LCD TV’s
S-VIDEO IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a videotape, press the Input button on the remote to select
VIDEO2( METHOD A), or VIDEO3 (METHOD B).
Connecting a VCR
METHOD A:
Use a composite cable to connect the video camera’s or play station’s composite video/
audio jacks to the LCD TV’s VIDEO2 IN jacks or VIDEO1 IN jacks.
METHOD B:
Use an audio cable to connect the video camera’s or play station’s audio output jacks to
the LCD TV’s audio inputs. Use a S-Video cable to connect
the video camera’s or play
station’s s-video output jack to the LCD TV’s S-VIDEO IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a video vis camera or play station, press the Input button on the remote to
select VIDEO2/VIDEO1( METHOD A), or VIDEO3 (METHOD B).
Connecting a Video Camera or Play Station
Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility.
PLAY STATION
