English - 5 -
Stand Installation &
Wall Mounting
Assembling / Removing the stand
Preparations
Take out the stand(s) and the TV from the packing case
and put the TV onto a work table with the screen panel
down on a clean and soft cloth (blanket, etc.)
Do not hold the screen panel part.
Make sure not to scratch or break the TV.
Assembling the stand
1. Place the stand(s) on the stand mounting
pattern(s) on the rear side of the TV.
2. Insert the screws provided and tighten them gently
Removing the stand from the TV
Be sure to remove the stand in the following way when
using a wall mount bracket or repacking the TV.
Put the TV onto a work table with the screen panel
down on a clean and soft cloth. Leave the stand(s)
protruding over the edge of the surface.
Remove the stand(s).
When using the wall mount bracket
Your TV is also prepared for a VESA-compliant wall
mount bracket. If it is not supplied with your TV, contact
your local dealer to purchase the recommended wall
mount bracket.

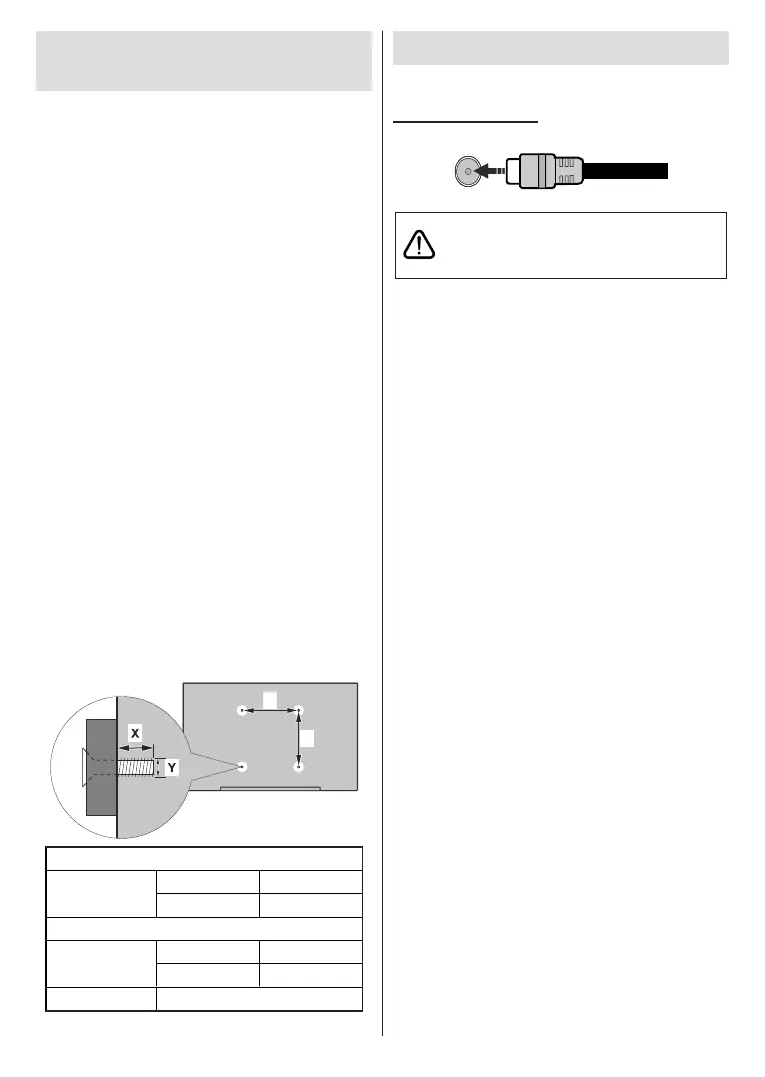

Holes and measurements for wall mount bracket
installation;
VESA WALL MOUNT MEASUREMENTS
Hole Paern
Sizes (mm)
W H
200 200
Screw Sizes
Length (X)
min. (mm) 10
max. (mm) 13
Thread (Y) M6
Antenna Connection
Connect the aerial TV plug to the AERIAL INPUT (ANT)
socket located on the rear side of the TV.
Rear side of the TV
If you want to connect a device to the TV, make
before making any connection. After the connection
is done, you can turn on the units and use them.
