Chapter 1 Introducing the LCD TV

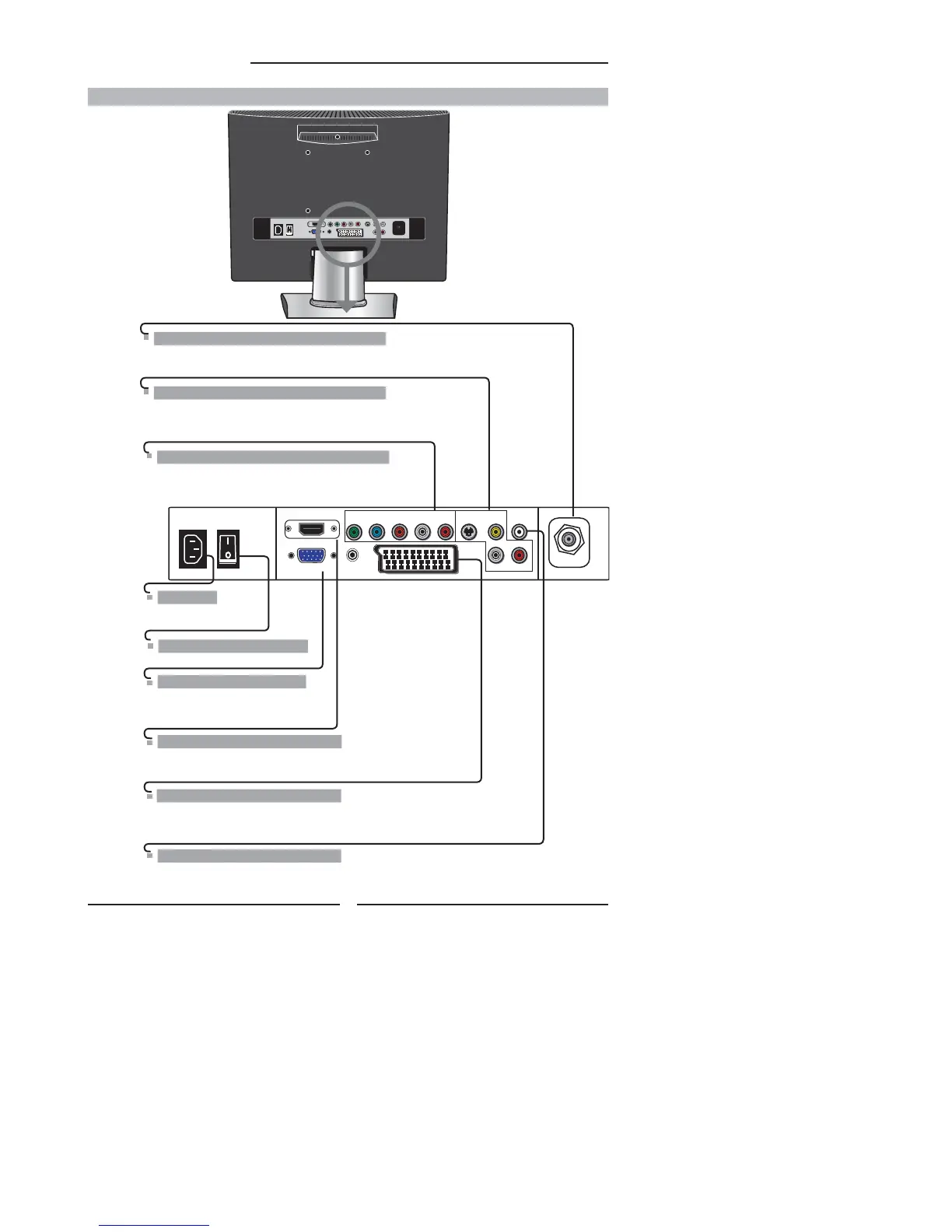

Rear View and Jacks
SPDIF OUT
Connects to the audio jack on the digital/standard 5.1 audio system.
HDMI IN
Connects the all digital AV equipment with HDMI connector.HDMI
supports enhanced, high-defi nition video and two-channel digital audio.
VGA IN/ VGA LINE IN
Connects the PC, or other AV
equipment with VGA and AUDIO
output jacks.
S-VIDEO/VIDEO/AUDIO(L/R) IN
Connects to the S-Video/Composite VIDEO and AUDIO(L/R) output
jacks on external video equipment. (S-VIDEO and Video have a
common audio input.)
YPbPr IN
Connects to the DVD player, Digital Set-Top-Box, or
other AV equipment with component(YPbPr) video
and audio output jacks.
AC IN
Connects to the AC
power cord.
VHF/UHF IN
Connects RF input from VHF/UHF antenna or cable
to receive standard defi nition television.
SCART IN
Connect to external equipment with scart socket. This scart input allows video/
audio in+RGB+video/audio out from an external devise to be shown on your TV.
POWER SWITCH
Turns the LCD TV on and off.
