HDMI
LR
LR
PC/VGA IN
PC AUDIO IN
SCAR T
VIDEOS-VIDEO
COAXIAL
AUD IO IN
VHF/UHF IN
YPbPr
AUD IO IN
Rear of TV
ENGLISH
19
Chapter 2 Installing the LCD TV

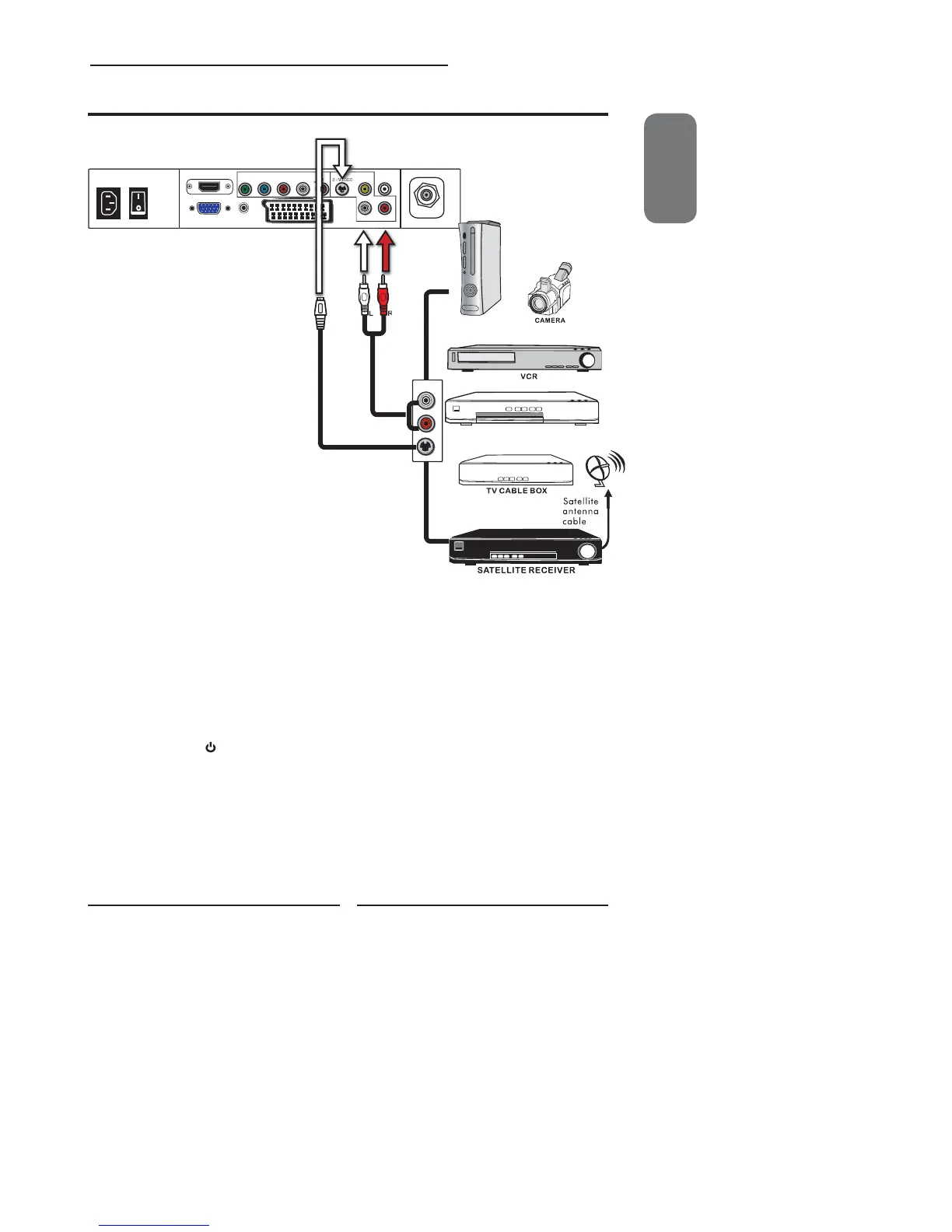

Use an audio cable to connect the external A/V device’s audio output jacks to the LCD
TV’s audio inputs. Use a S-Video cable to connect the external A/V device’s S-Video
output jack to the LCD TV’s S-Video IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the INPUT button on the remote
repeatedly to select S-VIDEO.
Connecting an A/V Device with S-Video Connector
GAME CONSOLE
DVD PLAYER
L
R
S-VIDEO OUT
AUDIO Cable
S-VIDEO Cable
To Next Page
