1. (-) Aux 2 output
2. (-) AUX 1 output
3. (-) Parking lights
1. GRAY/LIGHT BLUE ... (-) AUX 2 output
2. BLUE/WHITE ... (
-
) AUX 1 output
3. YELLOW/WHITE ....... ( PARKING LIGHTS
-)
12- YELLOW .......................... (+) Glow plug input
11- GREY ............................... (
-
) NEG. Door input
10- WHITE .............................. (
-
) GROUND when running
9- PURPLE ............................ (
-
) EXT. TRIGGER input
8- ORANGE ........................... (
-
) Parking Brakes input
7- WHITE/ORANGE ............... (
-
) Starter kill output
6- BLUE/WHITE ..................... (+) POS. Door input
5- WHITE/GREEN .................. (
-
) DISARM
4- WHITE/BROWN ................. (
-
) REARM
3- GREEN .............................. (
-
) UNLOCK
2- BROWN ............................. (
-
) LOCK
1- BLUE ................................. (
-
) TRUNK
Loop
LOOP
V1.00 SS - Feb. 18, 2009 -
Jumpers for second outputs
(Starter, Ignition, Accessories)
Starter 2 Jumper
Ignition 2 Jumper
Accessories 2 Jumper
INV-200 Connector
INV-200 CONNECTOR
(Door Lock pulse
inverter)
RS-232 Port
RS-232 port
Bypass/GPS port
Bypass/GPS port
Pager port
Pager port
REAR VIEW OF MODULE
PUSH-BUTTON
VALET SWITCH
(N/A)
GREEN ............ 5
th
RELAY
PURPLE ............. STARTER
ORANGE ...ACCESSORIES
(Heater Blower Motor)
YELLOW ........... IGNITION
RED ............+12V (Battery)
RED ..............12V (Battery)
30 A Fuse
30 A Fuse
1- BLACK ........................ GROUND (
-
)
2- PURPLE ........................... TACH (AC)
3- GREY ................. HOOD SWITCH (
-
)
4- ORANGE ........ BRAKE SWITCH (+)
5- YELLOW ....... PARKING LIGHTS (+)
15 A Fuse
85
87
(Solenoid Side)
86
30
STARTER WIRE
(Key Side)
IGNITION (+)
N/A
Start Kill Output (-)
87
A
STARTER WIRE
Optional Starter Kill Relay
N/A
TACH Threshold: HIGH
TACH Threshold: NORMAL
Programming
Assistance Button
(Hood Switch
Interrupt)
SIDE VIEW OF MODULE
NA

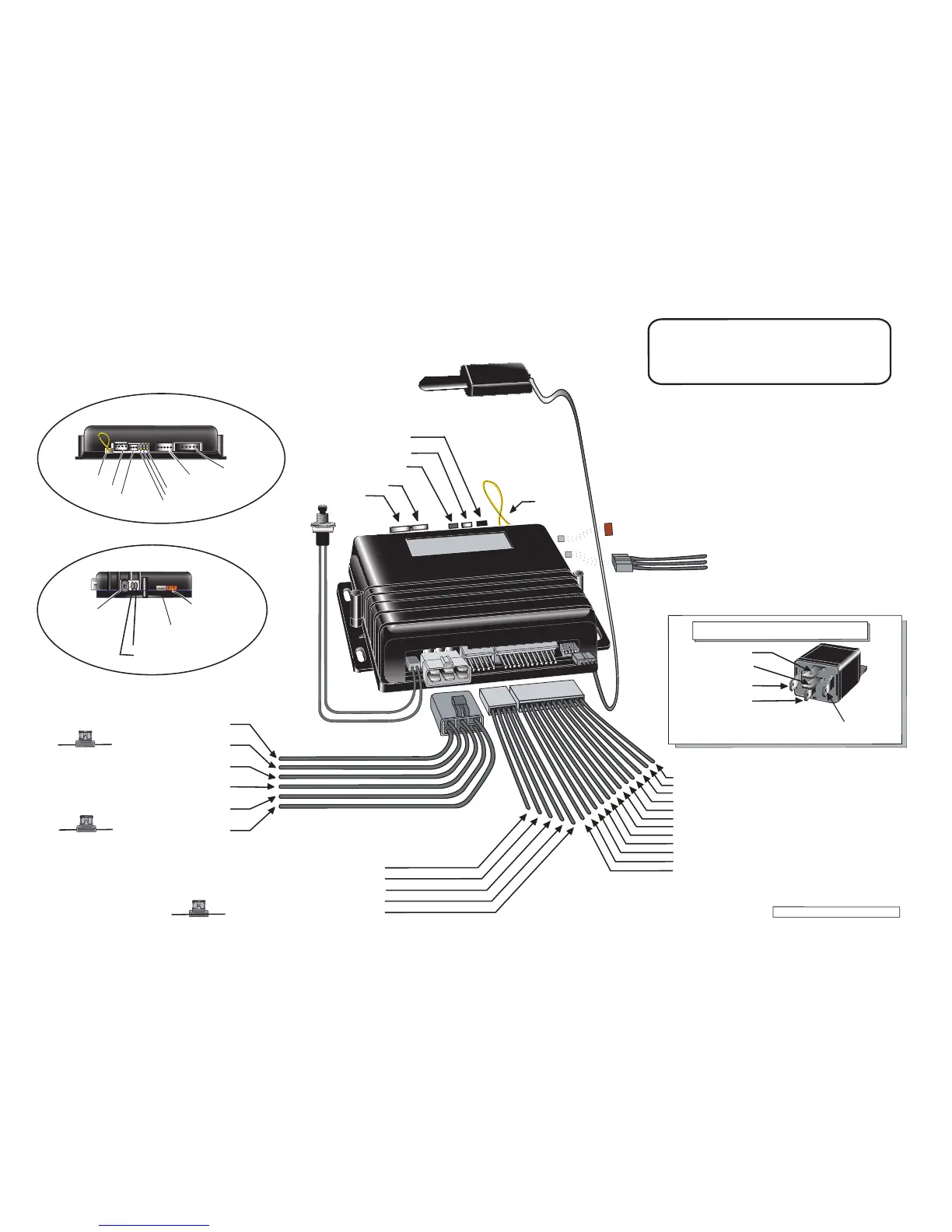

WIRING SCHEMATIC
For Automatic Transmissions
Cut the yellow loop before plugging
in the module.
:
