SELECTION OF INSTALLATION LOCATION (Fig.10)
the air outlets cannot be covered up. Place the unit no less
than 50cm away from a wall or other obstacle.
AIR EXHAUST HOSE MOUNTING METHOD
(Fig. 17)
● Fix the square end of the exhaust hose to the hot air outlet grill at the back of the appliance.
● Place the other end (discharge) to the nearest window. The length of the air exhaust hose is
between 600mm to1500mm; use the minimum length when working.
● When mounting, try to keep the air exhaust horizontal and not enlarge or connect it to other
discharge as this can cause malfunction.
13
Fig. 16
Fig. 17
50cm
50cm
Place the portable air conditioner in a flat location where
Fig. 5
Fig. 4
window
slider
window
adaptor
hose
outlet
hose hose
inlet

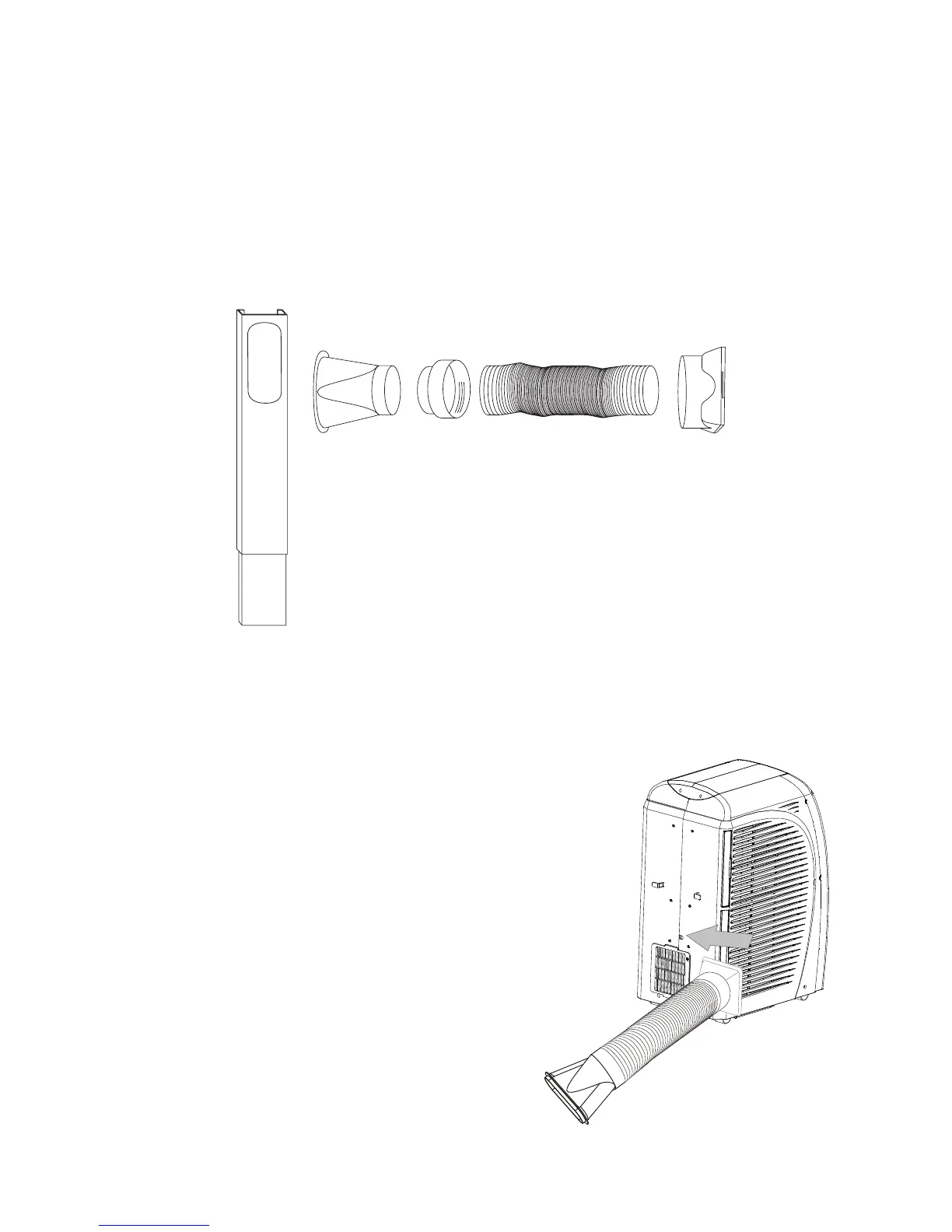

ASSEMBLY OF EXHAUST HOSE, HOSE INLET, HOSE OUTLET, WINDOW ADAPTOR
AND WINDOW SLIDER (Fig.4)
• Fullyextendeachendoftheexhausthosebyabout10cmandattachthehoseinletandhoseoutlettooppositeendsby
rotatingtheinlet/outletinacounterclockwisedirectionapproximately3to4turns,makingsurethatthehosewireis
wellthreadedintothehoseinletandoutlet.Thehoseinletandoutletcannotbeinstalledunlessthehoseendshavebeen
fullyextended.
• Attachthewindowadaptortothehoseoutletbypressuret.
• Clipthewindowadaptorintothewindowslider.Takecaretonotbreakthetabsonthewindowadaptorwhen
disconnectingfromthewindowslider.
MOUNTING OF ASSEMBLED AIR EXHAUST HOSE (Fig.5)
• Takecarenottodamagethehoseinletwhenattaching/detatchingattheback
oftheAirConditioner.
• Slidethehoseinlet(squareend)inthedirectionindicatedbythearrowonto
thexinglugsonhotairoutletgrillatthebackoftheappliance.Install
carefullyanddonotforce.
• Placethehoseoutlettothenearestwindow.Thelengthoftheairexhaust
hoseisbetween600mmto1500mm;usetheminimumlengthwhenworking.
• Whenmounting,trytokeeptheairexhausthosehorizontalanddonotextend
itslengthbyattachingittoanotherhoseasthisreducesthecoolingefciency
oftheappliance.Ifhoseneedstobeextended,useasfewbendsaspossible.
• Considerelevatingtheunitinordertokeepthehoseasstraightaspossible.
