Polycom KIRK 2010 - HANDSET COMPONENTS; Handset Components; Charger Unit Components

6

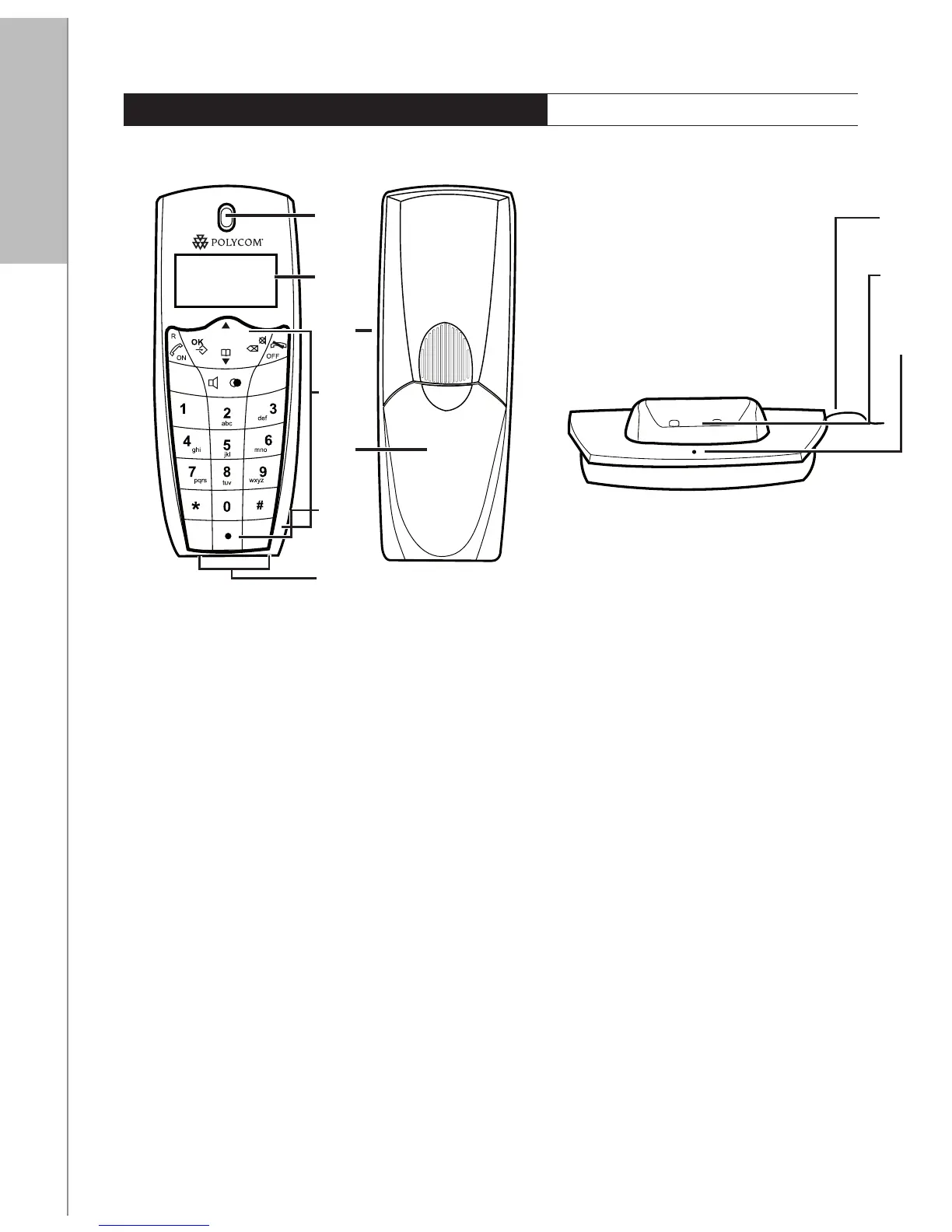

H A N D S E T C O M P O N E N T S
■ ■ ■ ■
Handset
1 Ear piece/Receiver
2 LCD Screen
3 Headset jack
(optional)
4 Function keys
5 Battery compartment
6 Mouth piece/ Microphone
7 Handset charge contacts
Charger Unit
8 Power supply unit
9 Charger contacts
10 Power indicator
Transmits communications and audio signals
Displays the current status and function of the handset
Connects to external headset
Dials numbers and accesses handset functions
Contains three rechargeable batteries
Transmits communications and audio signals
Receives charging power from charger unit
Connects to AC power source
Supplies charging power to the rechargeable batteries
Indicates power is applied to the charger unit
8
9
10
1
2
3
4
5
6
7
Handset
Charger Unit
