SYSTEM LAYOUT
The audio components for the room are 8 tabletop microphones, 1 EF2280, 1 VSX 8000 video
codec, 1 program audio source, and 4 ceiling loudspeakers. The video codec will use Input A /
Output A. The program audio will use Inputs C and D. The amplifier will use Output B.
On the VSX 8000, either the left or right input / outputs can be used for mono operation.
We will assume that the microphones, amplifier, program audio, and VSX 8000 have balanced
connections.

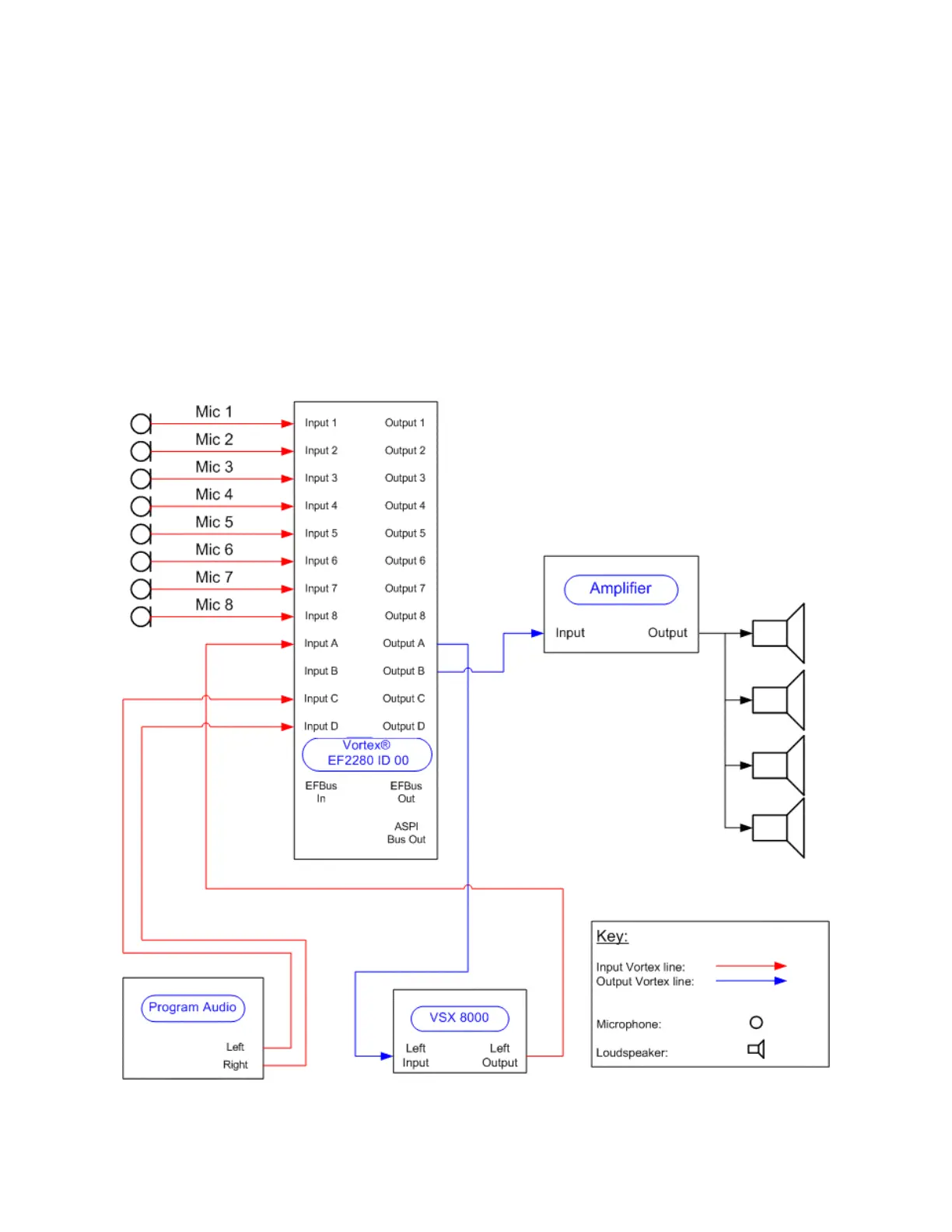

Figure 20. Vortex design with VSX 8000.
