Section 2 -- Overview
2.1 Contents
— Recirculating Chiller
— Operators Manual
— Warranty Card
— IEC Power Cord
— Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
2.2 Description
These Refrigerated Recirculating Chillers provide cooling power for demanding applications and
serve as an economical alternative to tap water cooling systems. All models feature a
microprocessor-based controller, digital temperature display (°C or °F), one-touch set point display,
and digital pressure/flow rate display (PSI, kPa, GPM, LPM) with push-button selection.
To optimize cooling efficiency and performance, these sophisticated Chillers also feature a
modulated refrigeration system. As a result, temperature stability is greatly enhanced and
compressor life extended.
Refrigerated Recirculating Chillers are equipped with either a centrifugal, positive displacement, or
regenerative turbine pump. Wetted parts within the recirculation system are brass, stainless steel,
polyethylene, EPDM rubber, and nylon.

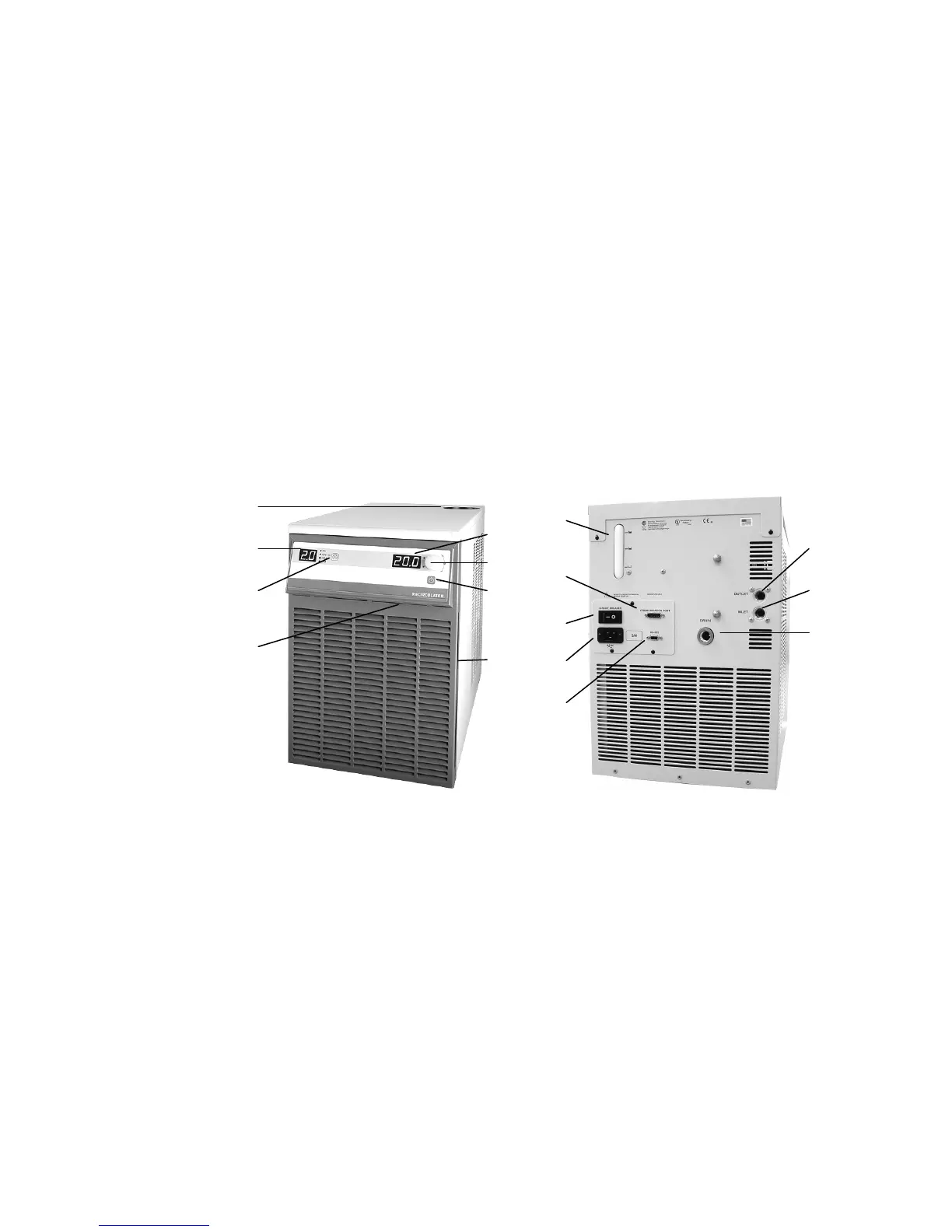

Front/Top Rear
1. Temperature Display 9. Fluid Outlet
2. Select/Set Knob 10. Fluid Inlet
3. Power Button 11. Drain
4. Reservoir Cap and Internal Fluid Filter (top) 12. Reservoir Fluid Level Gauge
5. Air Filter 13. Circuit Breaker / Power Switch
6. Pressure / Flow Rate Display 14. IEC Power Connection
7. Units / Menu Select Button 15. Remote I/O Connection (optional)
8. Ambient Tracking Probe Connection (optional) 16. RS232 / RS 485 Connection (optional)
