ACCESSORIES HOLDER
✓ Install the accessories holder after any other treatment device, cleaning or heating, at the middle of the
horizontal pipe of a minimal length of 40 cm. The arrow indicates the direction of passage of the water
and must be visible by the top.
✓ In case of pipe Ø 50 mm, stick 63/50 mm reducers side pursuit (not supplied).

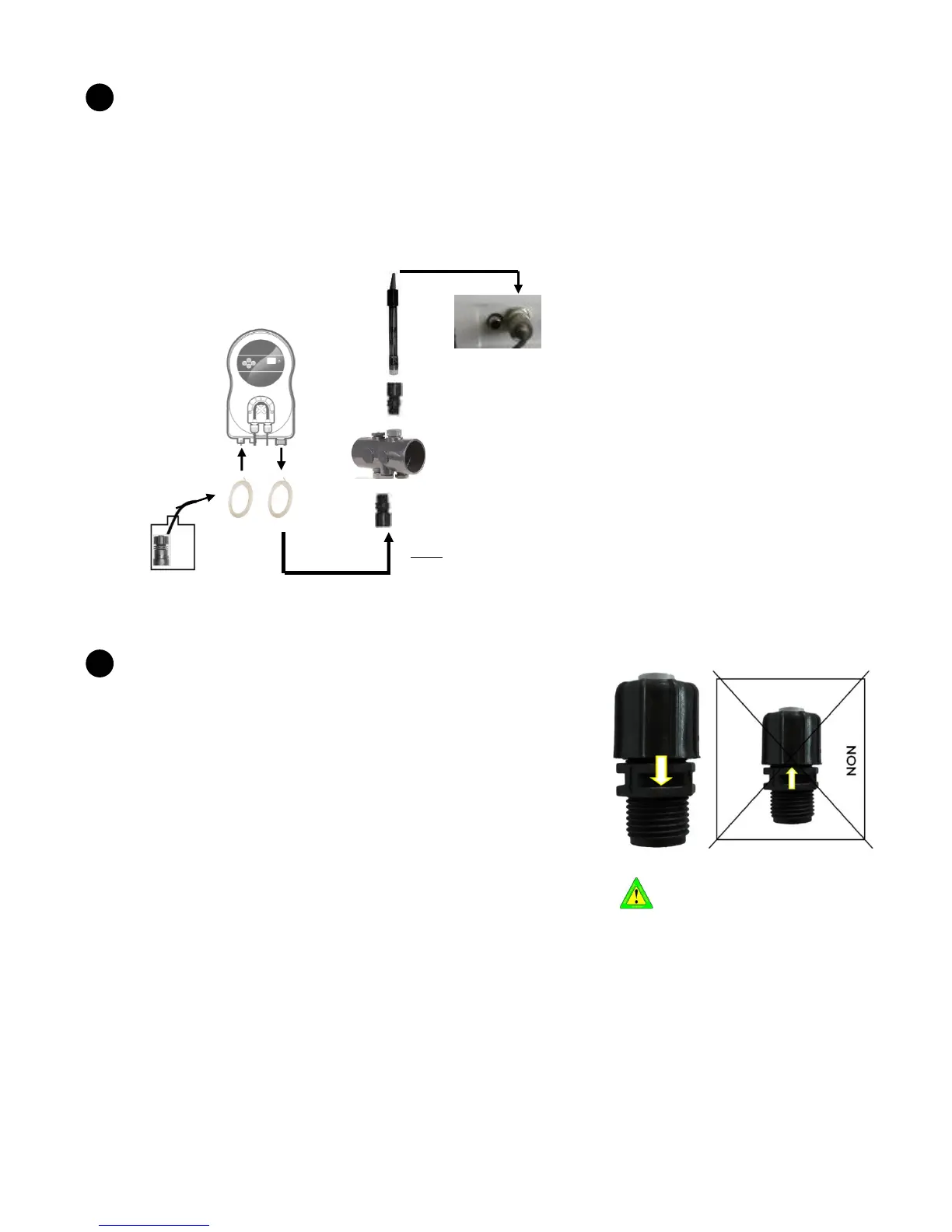

PH PROBE AND INJECTION SYSTEM
✓ Connect the suction strainer to the pH pump with a part of the
supplied pipe. Respect the sense of arrows representing on the
top of the pH pump.
✓ Screw the injection connector under the accessories holder and
connect the exit of the pH pump to the injection connector
with the rest of the supplied pipe.
✓ Screw the probe holder on the accessories holder with Teflon.
Remove the rubber protection at the end of the pH probe.
Screw the probe on the top of the accessories holder (make
sure that it is not in abutment with the waterworks).
✓ Connect the cable of the pH probe (BNC jack) under the controller box.
An incorrect positioning of
the injection connector can
entail the deterioration of
the pump.
