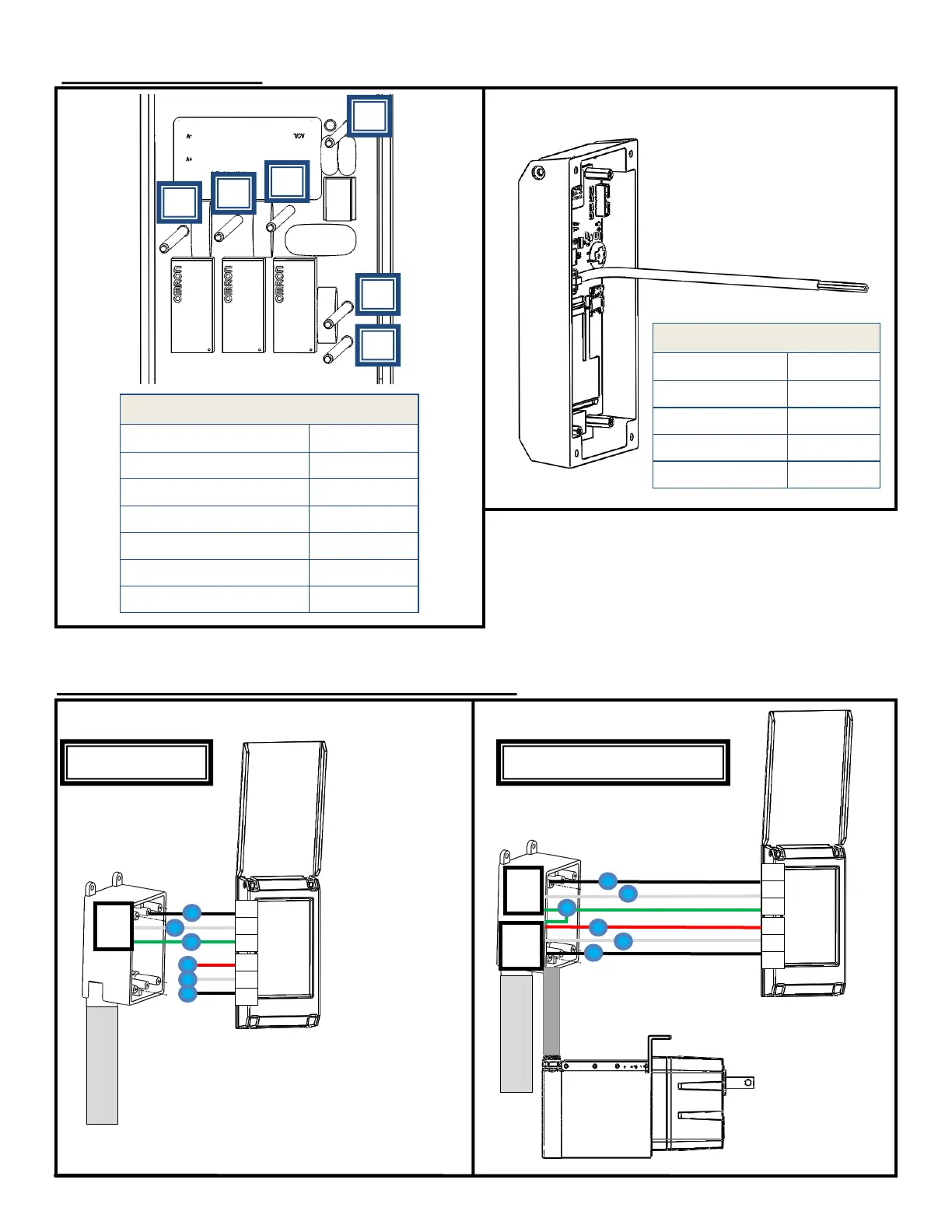

POOL Latham - Wiring Description; System Diagram and Configuration Options

L0311 Rev 3 6-21 © Latham Pool Products, Inc. 2021. All rights reserved. Page 3 of 9
High voltage wiring
Color
#1 Input Power Neutral White
#2 Input Power Line/Hot Black
#3 Earth Ground Green
#4 Motor Direction 2 Black
#5 Motor Neutral White
#6 Motor Direction 1 Red
#3
#4
#5
#6
#2
#1
Low voltage wiring
Color
5v DC+ Red
Gnd DC- Black
Control board Rx White
Control board Tx Green
Wiring Description:
System Diagram and Configuration Options:
Connect AC leads,
Cap Motor leads
To Breaker Panel
Opon 1: Remote Opon 2: High Voltage Motor
To Breaker Panel
Connect AC leads,
Match motor wiring,
Connect all grounds
#2
#1
#3
#6
#5
#4
AC
Leads
AC
Leads
Motor
Leads
#2
#1
#3
#6
#5
#4
