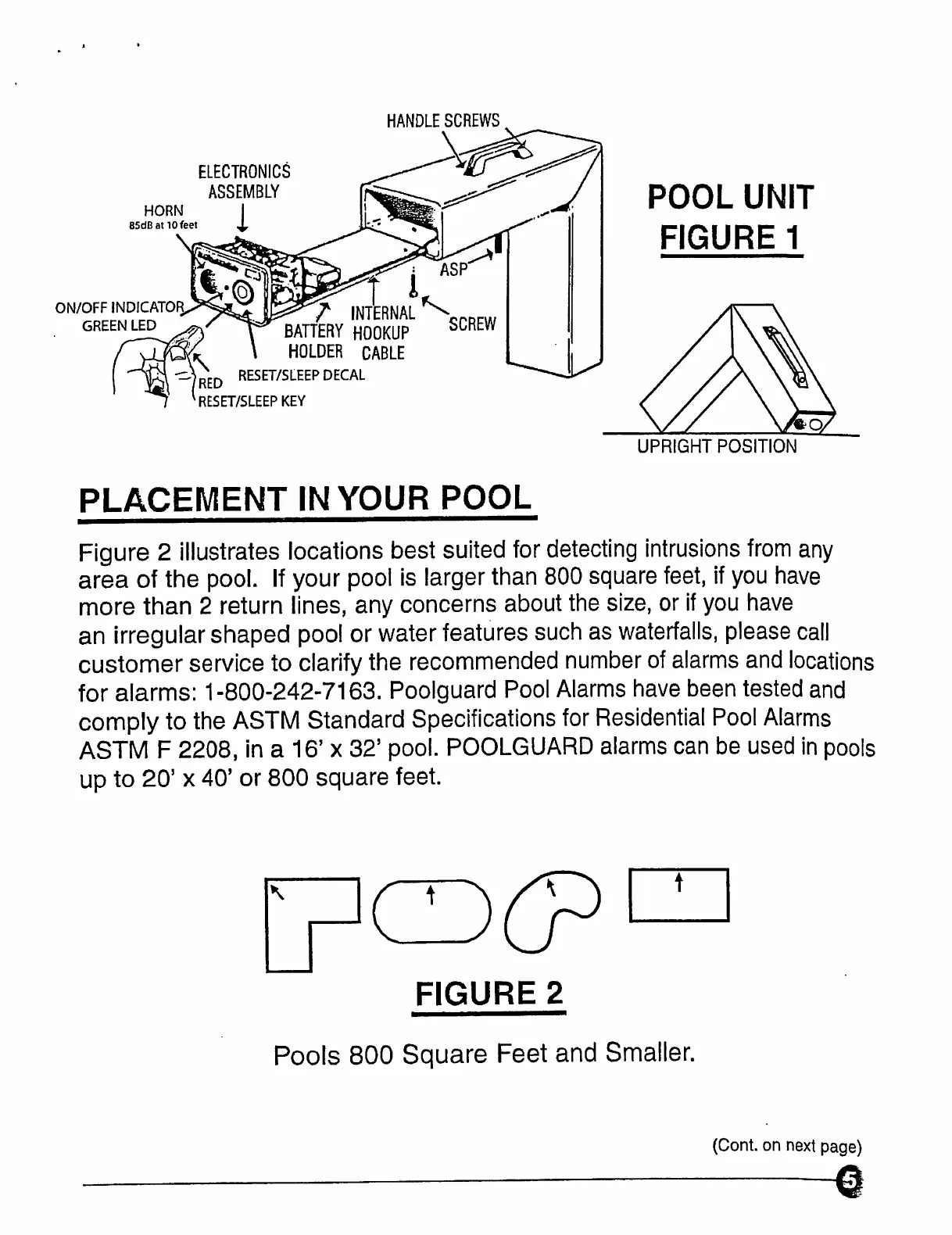

ELECTRONICS
ASSEMBLY
HORN
BSdBatlOfeet
ON/OFF
INDICATOR
GREEN
LED
N
RED
RESET/SLEEP KEY
HANDLE
SCREWS
7
INTERNAL
%
BATTERY
HOOKUP
SCREW
HOLDER
CABLE
RESET/SLEEP
DECAL
POOL
UNIT
FIGURE
1
UPRIGHT
POSITION
PLACEMENT
IN
YOUR
POOL
Figure 2 illustrates locations best suited
for
detecting
intrusions
from
any
area
of the
pool.
If
your
pool
is larger than 800square
feet,
if
you
have
more than 2 return lines, any concerns about the size, or
if
you
have
an irregularshaped
pool
or waterfeatures
such
as
waterfalls,
please
call
customer
service to clarify the recommended number
of
alarms and
locations
for alarms: 1-800-242-7163. Poolguard Pool
Alarms
have been tested and
comply to the
ASTM
Standard Specifications
for
Residential
Pool
Alarms
ASTM F 2208, in a 16' x 32' pool.
POOLGUARD
alarms can be used
in
pools
up to 20' x 40' or 800 square feet.
\
FIGURE
2
Pools 800
Square
Feet and Smaller.
(Cont.
on next page)
To Next Page
