PoolRite Xtreme Chlorinator - Parts

PART
NO
DESCRIPTION
PART
NO
DESCRIPTION
1 Rear Bracket 11 Mains Cable
2 Backing Plate 12 Label
3 15-35gr Transformer 13 Cell Housing
4 50gr Transformer 14 O-ring
5 75-l00gr Transformer 15 Housing Nut
6 Pump Outlet 16 Cell
7 Ribbon Cable 17 Sunshade
8 Display 18 Cover Seal
9 Power PCB 19 Retaining Clips
10 Plastic Cover

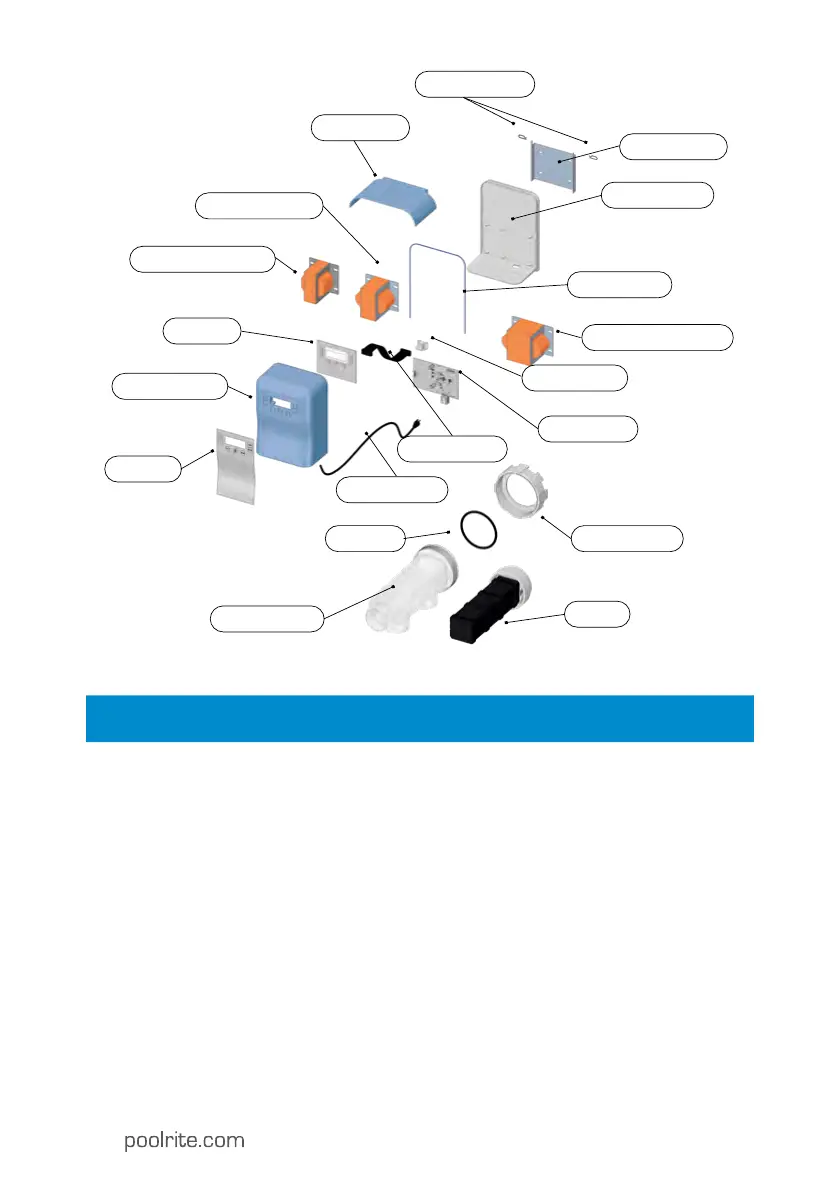

PARTS
17. Sunshade
4. 50g Transformer
3. 15-35g Transformer
8. Display
10. Plastic Cover
12. Label
11. Mains Cable
14. O-ring
13. Cell Housing
16. Cell
15. Housing Nut
9. Power PCB
7. Ribbon Cable
6. Pump Outlet
5. 75-100g Transformer
18. Cover Seal
2. Backing Plate
1. Rear Bracket
19. Retaining Clip
16
