348 Minor Repairs
Inflating tires on vehicles with air
suspension
The bag with the tire filling hose is located under
the loadspace floor in the spare-wheel recess.
1. Take tire filling hose out of the bag.
2. Remove cover in footwell of right front seat.

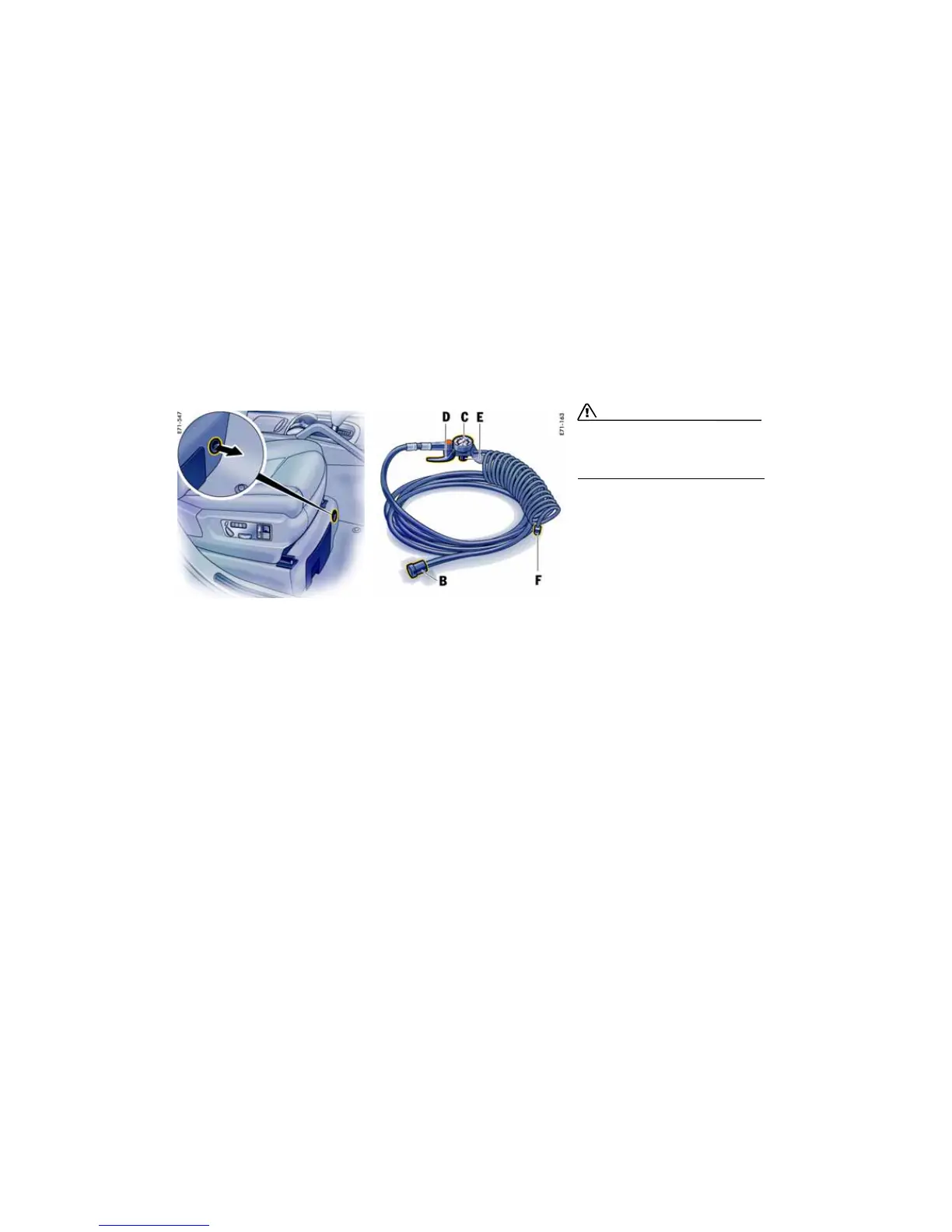

B - Screw coupling for compressor connection
C -Pressure tester
D - Hand valve for tire filling
E -Air bleed screw
F - Filler connection for tire valve
3.Screw screw coupling B into the compressor
connection (in footwell of the front passenger
seat).
4.Screw filler connection F onto the tire valve.
Warning!
Danger of injury and risk of damage if the
operating unit is used improperly.
f Use this operating unit only to inflate or to
bleed air from the tires of this vehicle.
5.Switch ignition on.
6.Press hand valve D until the correct tire pres-
sure is achieved.
Monitor the tire pressure with pressure tester
C during the inflation process.
7.Unscrew the screw coupling from the com-
pressor connection.
8.Unscrew filler connection from the tire valve.
9.Stow tire filler hose in the bag.
