Minor Repairs 387

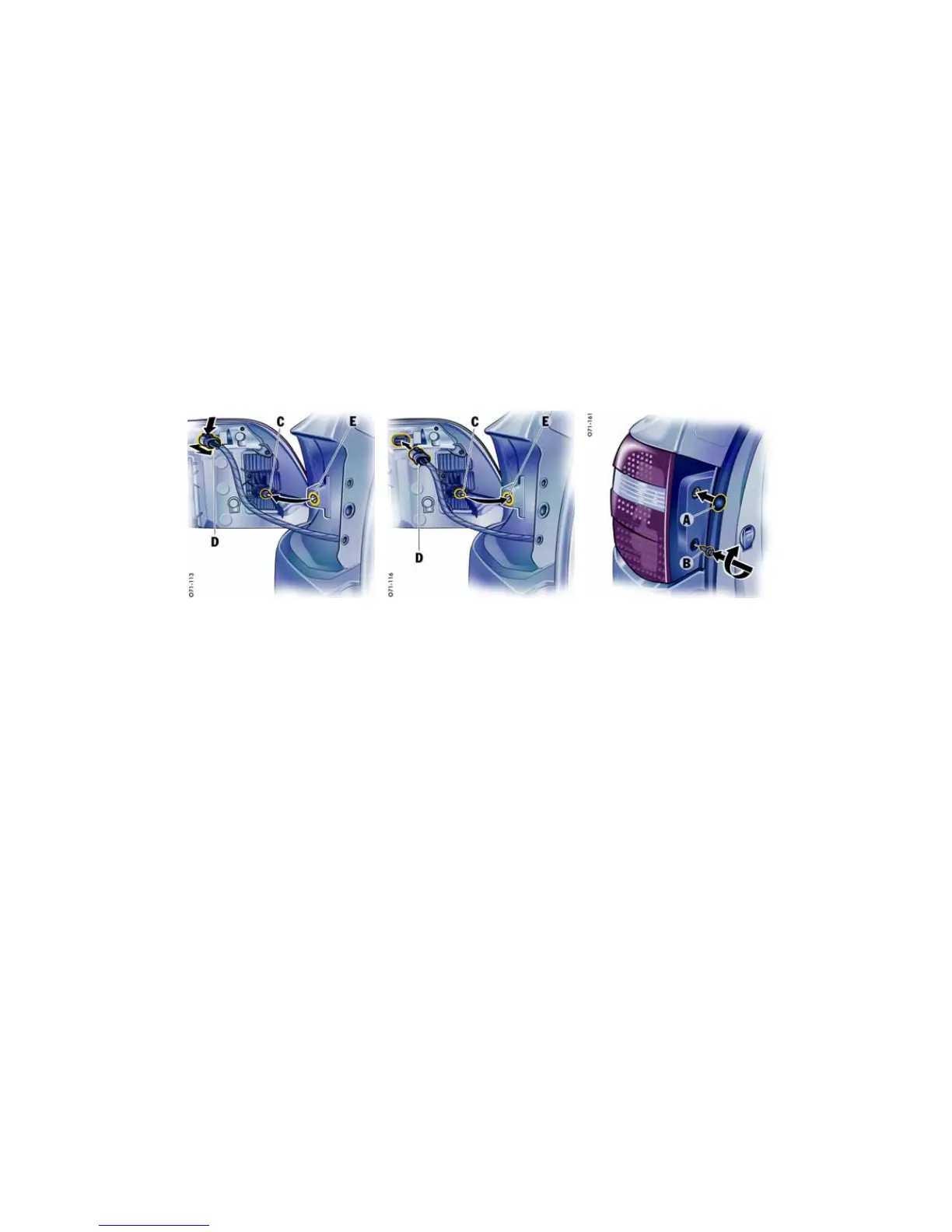

5. Pull out the light unit to the side in the direc-
tion of the arrow and additionally pull it out in
the area of the ball head C.
6. Disengage cable and then press on the plug
release (arrow) on the plug D and pull off the
plug.
Installing tail light
1. Push on plug D until the plug is felt to click into
place (arrow) and secure cable.
2. Insert ball head of tail light C into clip nut E and
fit the light unit into the body (arrow).
3. Screw in the fastening screws B.
When screwing in the fastening screws, make
sure that the tail light is flush with the body.
4. Press in caps A.
