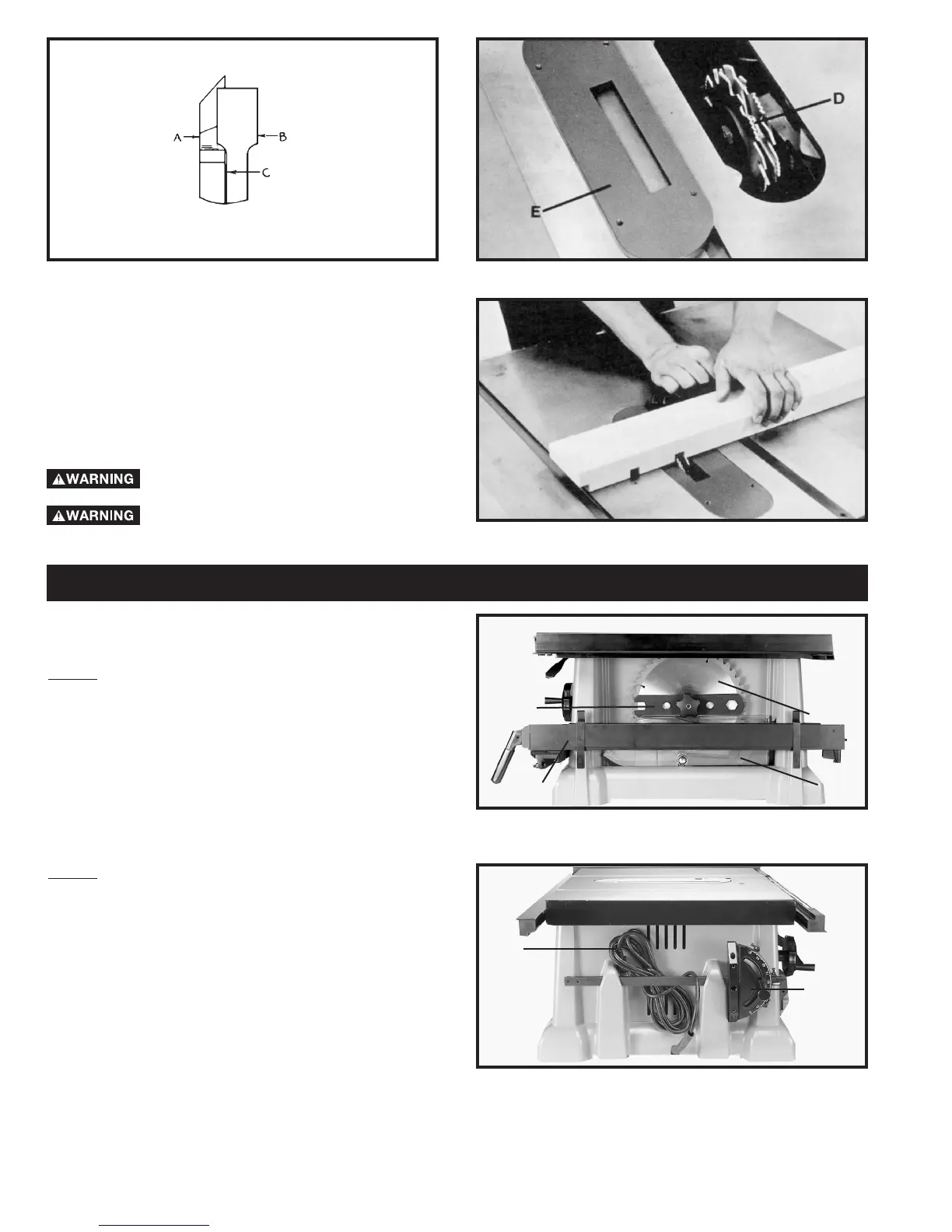

The dado head set (D) Fig. 40, is assembled to the saw
arbor as shown. IMPORTANT: The blade guard and
splitter assembly cannot be used when dadoing and
must be removed. Auxiliary jigs, fixtures, push sticks and
feather boards should also be used. Also, the accessory
dado head table insert Delta model 38122 (E) Fig. 40,
must be used in place of the standard table insert.
Fig. 41, shows a typical dado operation using the miter
gage as a guide.
NEVER USE THE DADO HEAD IN A
BEVEL POSITION.
ALWAYS INSTALL BLADE GUARD
AFTER OPERATION IS COMPLETED.
Fig. 40
Fig. 41
Fig. 39
STORAGE
For ease in storing and transporting, the saw can hold
the following accessories as shown in Figs. 42 and 43.
Fig. 42
A - Wrenches
B - Blade guard/Spreader assembly
C - Fence
D. - Extra Blade
Fig. 43
E - Miter gage
F - Cord
Fig. 42
A
B
C
D
Fig. 43
E
F
