MODEL 517 LOCK FACE TEMPLET
REQUIRED EQUIPMENT
Equipment required for use with Router and Lock Face Templet.
42024 Templet Guide
42237 Locknut
43440
5
/8" Diameter Straight Bit
SETTING UP TEMPLET
1. Loosen locking screw (A), Fig. 12.
2. Adjust side guides (C), Fig. 12, so the space between them is
1
/8" wider
than the lock face.
3. Firmly tighten screw (A).
4. Loosen locking screw (D), Fig. 12.
5. Adjust guide bar (E), Fig. 12, distance between (E) and (B) is
1
/8
" longer
than the lock face.
6. Firmly tighten screw (D).

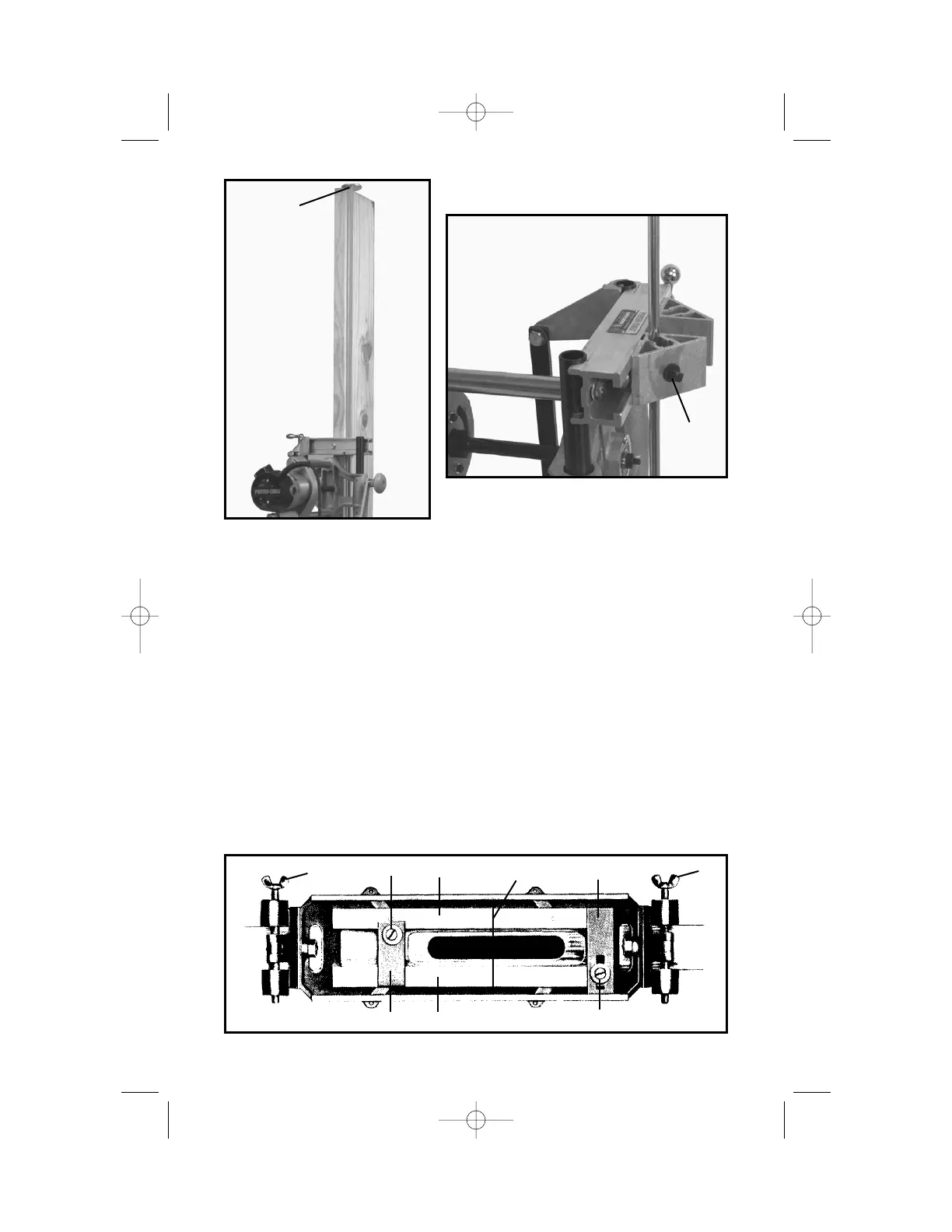

Fig. 11
Fig. 11A
G
H
Fig. 12
G
G
D
E
C
A
C
F
B
