9
REMOVING MOTOR FROM PLUNGE BASE
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
2. Remove clamp screw, flat
washer, lock washer, and clamp
locking nut.

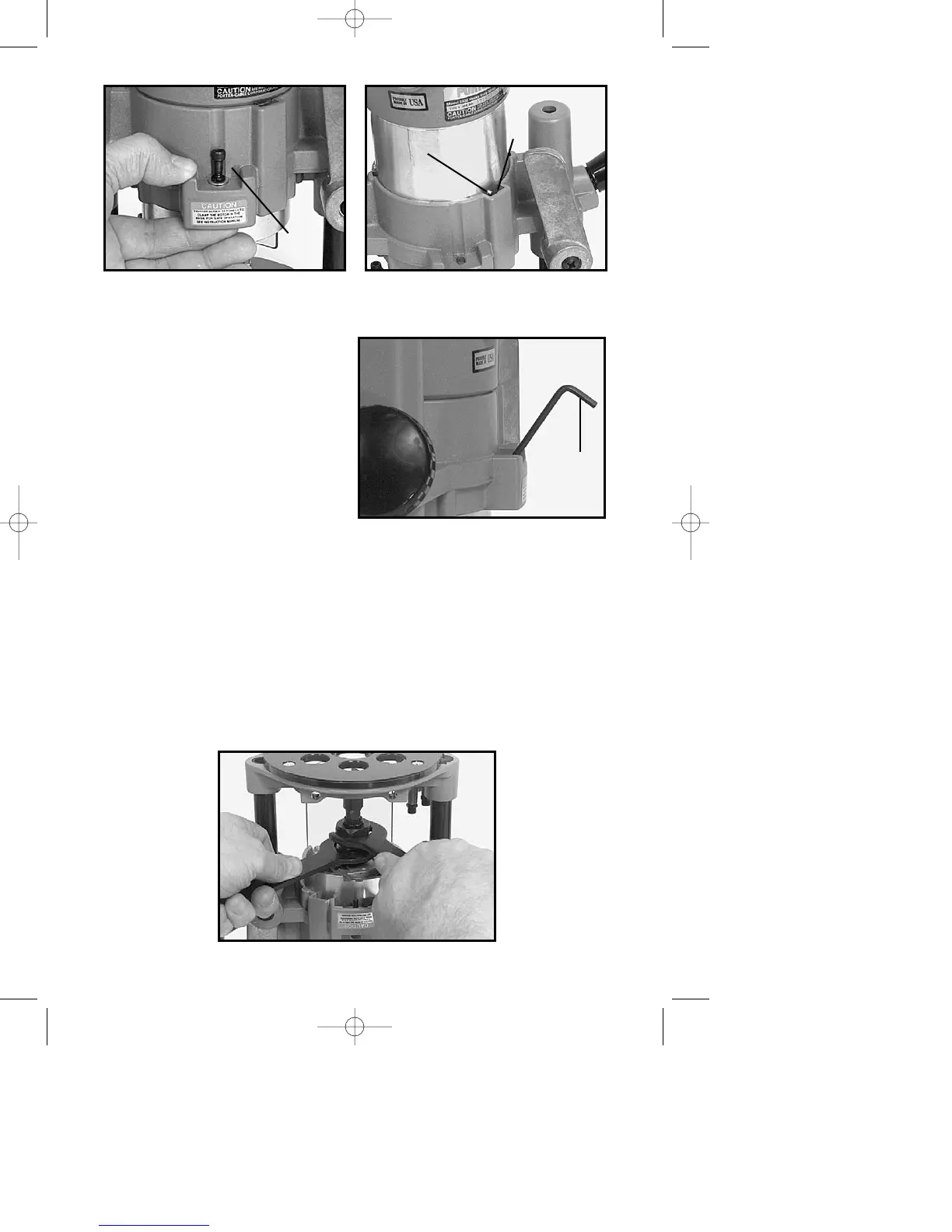

3. Insert allen wrench (A) Fig. 7, as
shown, to contact locking plate. Tap
lightly to release and remove locking
plate.
4. Slide motor out of base.
5. Reassemble clamp screw, lock
washer, flat washer, locking plate
and clamp locking nut to base and
tighten lightly to prevent loss.
INSTALLING AND REMOVING THE BIT
CAUTION: Be sure power switch is in the OFF position and tool is
disconnected from power source to avoid accidental starting of
motor which could result in personal injury.
1. Stand router upside down on its motor cap (see Fig. 8).
2. Clean and insert shank of bit into collet until shank bottoms. Then back it
out approximately
1
/16".
3. Place one wrench on flats on chuck and one wrench on collet nut (see
Fig. 8). Tighten firmly.
]
1
/2
"
A
B
Fig. 5 Fig. 6
Fig. 7
A
Fig. 8
