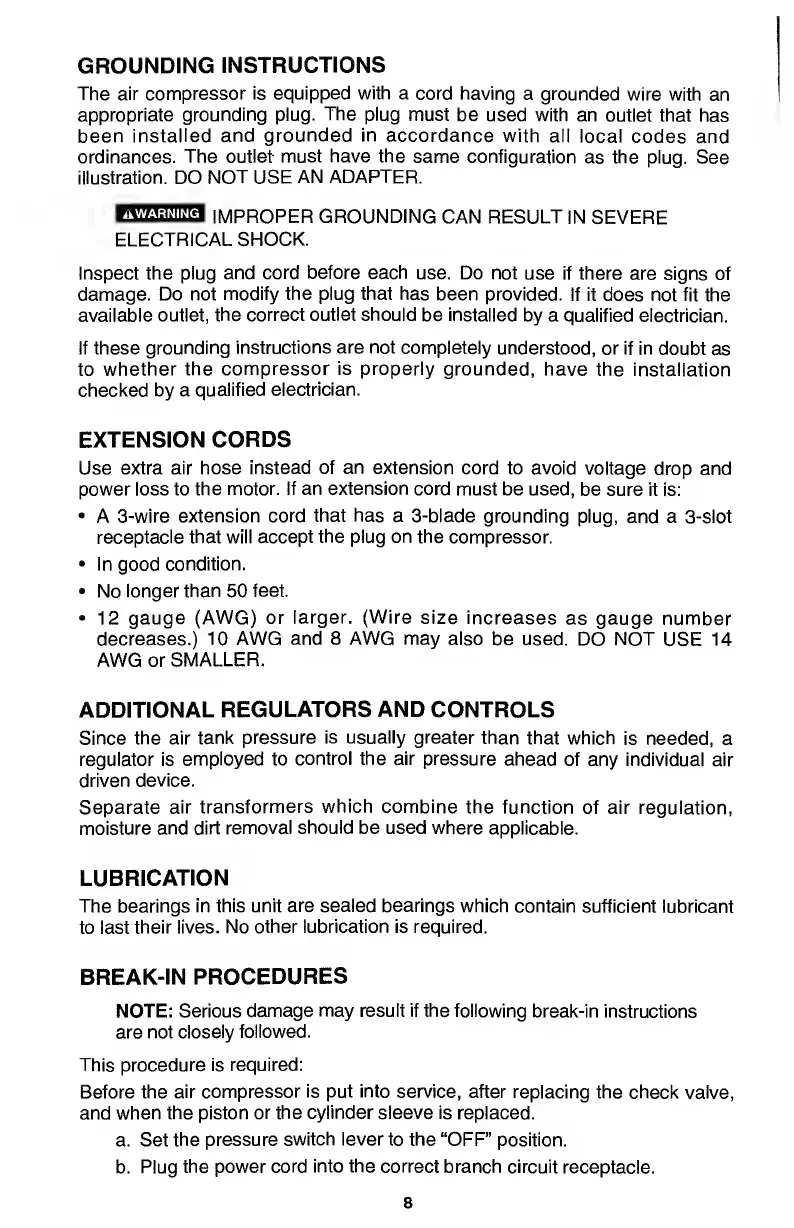

GROUNDING INSTRUCTIONS
The air compressor is equipped with a cord having a grounded wire with an
appropriate grounding plug. The plug must be used with an outlet that has
been installed and grounded in accordance with all local codes and
ordinances. The outlet must have the same configuration as the plug. See
illustration. DO NOT USE AN ADAPTER.
AWARNING
IMPROPER GROUNDING CAN RESULT IN SEVERE
ELECTRICAL SHOCK.
Inspect the plug and cord before each use. Do not use if there are signs of
damage. Do not modify the plug that has been provided. If it does not fit the
available outlet, the correct outlet should be installed by a qualified electrician.
If these grounding instructions are not completely understood, or if in doubt as
to whether the compressor is properly grounded, have the installation
checked by a qualified electrician.
EXTENSION CORDS
Use extra air hose instead of an extension cord to avoid voltage drop and
power loss to the motor. If an extension cord must be used, be sure it is:
• A 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot
receptacle that will accept the plug on the compressor.
• In good condition.
• No longer than 50 feet.
• 12 gauge (AWG) or larger. (Wire size increases as gauge number
decreases.) 10 AWG and 8 AWG may also be used. DO NOT USE 14
AWG or SMALLER.
ADDITIONAL REGULATORS AND CONTROLS
Since the air tank pressure is usually greater than that which is needed, a
regulator is employed to control the air pressure ahead of any individual air
driven device.
Separate air transformers which combine the function of air regulation,
moisture and dirt removal should be used where applicable.
LUBRICATION
The bearings in this unit are sealed bearings which contain sufficient lubricant
to last their lives. No other lubrication is required.
BREAK-IN PROCEDURES
NOTE: Serious damage may result if the following break-in instructions
are not closely followed.
This procedure is required:
Before the air compressor is put into service, after replacing the check valve,
and when the piston or the cylinder sleeve is replaced.
a. Set the pressure switch lever to the “OFF” position.
b. Plug the power cord into the correct branch circuit receptacle.
8
