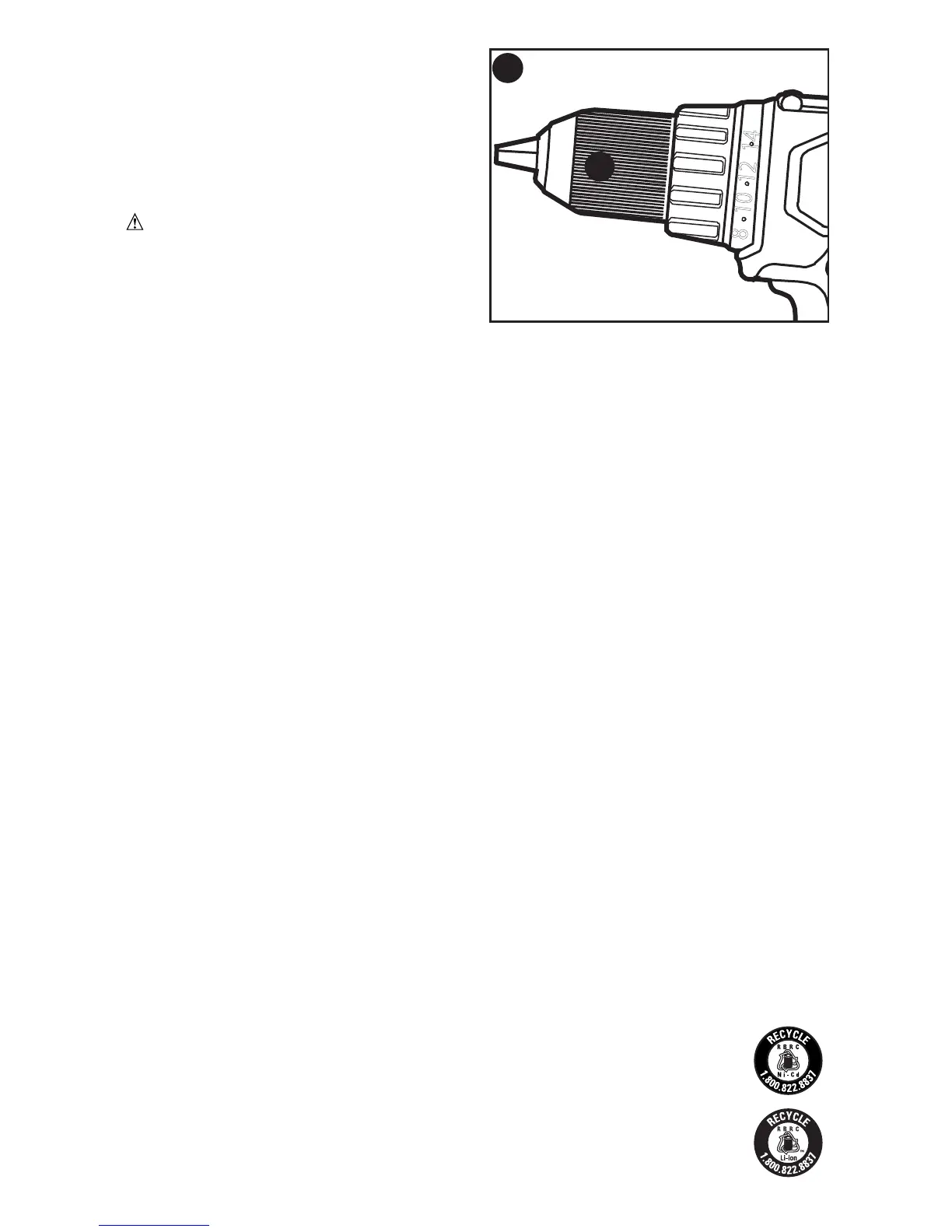

KEYLESS CHUCK - FIGURE H
To insert a drill bit or other accessory:
1. Grasp the chuck (5) and rotate it in the
counterclockwise direction, as viewed
from the chuck end.
2. Insert the bit or other accessory fully
into the chuck, and tighten securely
by rotating the chuck in the clockwise
direction as viewed from the chuck end.
WARNING: Do not attempt to tighten
drill bits (or any other accessory) by gripping
the front part of the chuck and turning the tool
on. Damage to the chuck and personal injury
may occur when changing accessories.
SCREW DRIVING
For driving fasteners, the reversing button should be pushed to the left. Use reverse
(button pushed to the right) for removing fasteners. When moving from forward to
reverse, or vice versa, always release the trigger switch first.
ON BOARD BIT STORAGE
Abitstorageslotisbuilt-intotheareajustabovethebattery.
DRILLING
•Usesharpdrillbitsonly.
•Supportandsecureworkproperly,asinstructedintheSafetyInstructions.
•Useappropriateandrequiredsafetyequipment,asinstructedintheSafetyInstructions.
•Secureandmaintainworkarea,asinstructedintheSafetyInstructions.
•Runthedrillveryslowly,usinglightpressure,untiltheholeisstartedenoughtokeep
the drill bit from slipping out of it.
•Applypressureinastraightlinewiththebit.Useenoughpressuretokeepthebitbiting
but not so much as to stall the motor or deflect the bit.
•Hold the drill firmly with one hand on the grip and the other hand on the bottom of the
battery pack to control its twisting action.
•DONOTCLICKTHETRIGGEROFASTALLEDDRILLOFFANDONINAN
ATTEMPT TO START IT. DAMAGE TO THE DRILL CAN RESULT.
•Minimizestallingonbreakthroughbyreducingpressureandslowlydrillingthroughthe
last part of the hole.
•Keepthemotorrunningwhilepullingthebitoutofadrilledhole.Thiswillhelpreduce
jamming.
•MAKE SURE SWITCH TURNS DRILL ON AND OFF.
DRILLING IN WOOD
Holes in wood can be made with the same twist drill bits used for metal or with spade
bits. These bits should be sharp and should be pulled out frequently when drilling to
clear chips from the flutes.
DRILLING IN METAL
Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass
which should be drilled dry. The cutting lubricants that work best are sulfurized cutting oil
or lard oil.
DRILLING IN MASONRY
Use carbide tipped masonry bits. Refer to Drilling section. Keep even force on the drill
but not so much that you crack the brittle material. A smooth, even flow of dust indicates
the proper drilling rate.
THE RBRC™ SEAL
The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the
NI-CDorLI-IONbattery(orbatterypack)indicatesthatthecoststorecyclethe
battery (or battery pack) at the end of its useful life have already been paid by
PORTER-CABLE.
RBRC™incooperationwithPORTER-CABLEandotherbatteryusers,has
established programs in the United States to facilitate the collection of spent
