Porter-Cable PCE605 - Components and Assembly; Tool Components Identification; Installing and Removing Accessories

ASSEMBLY
WARNING: Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
WARNING: Risk of lacerations or burns. Do not touch the sharp edges of
accessories at any time. Do not touch work piece or blade immediately after operating
the tool. They can become very hot. Handle carefully. Always allow accessories and
work piece to cool before handling.
CAUTION: This multi-tool is compatible only with DeWalt
®
Universal Fitment
TM
accessories and is not compatible with other Porter-Cable accessories.
INSTALLING/REMOVING
ACCESSORIES
The tool features an exclusive Tool Free System
for faster accessory changes and adjustments
without the need for wrenches or hex keys like
other oscillating tool systems.
•GraspthetoolandsqueezetheTool-Free
System’s accessory clamping lever as shown in
figure 2.
•Cleananyresidualdebrisfromthetoolshaftand
the accessory holder.
6
2

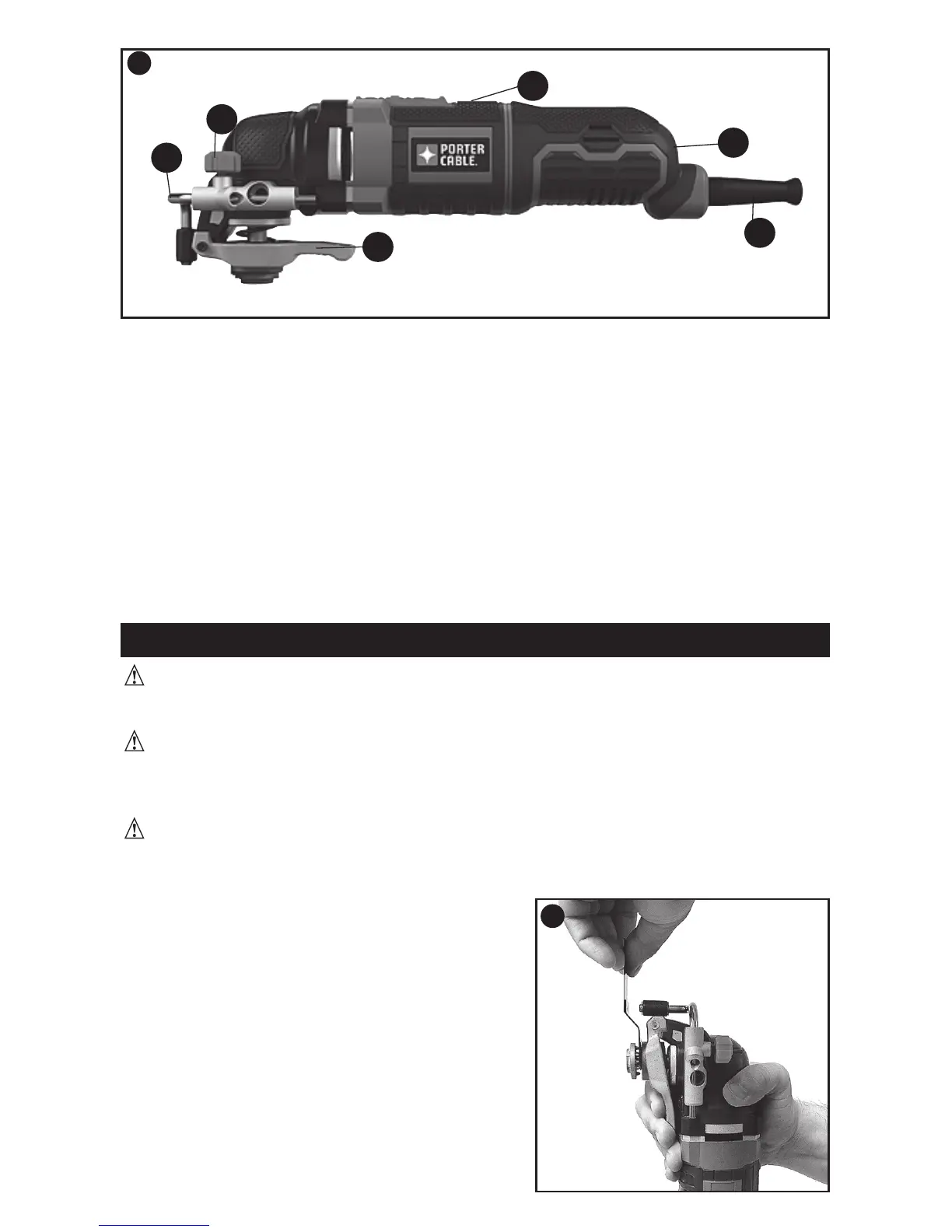

COMPONENTS
A.) On/Off switch
B.) Variable speed dial
C.) 10 foot cord
D.) Tool-Free accessory clamp
E.) Depth/Cut guide
*
F.)
Depth/Cut adjustment knob*
1
A
B
F
D
E
C
* Included with PCE605K only.
