5- ENG
D22721
ASSEMBLY
SPECIFICATIONS
OPERATION
Blows Per Minute 3,000 BPM
Maximum Working Pressure 90 PSI
Air Inlet 1/4" NPT
Recommended Hose Size 3/8" I.D.
Replacement Chisels PTA5 - 5 pc chisel set
(.401 Parker Taper chisels)
Air Consumption @ 90 PSI 3.8 SCFM
Accessories Required
IMPORTANT: Line pressure or hose inside diameter should be increased to compensate
for unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8” I.D. and
fittings should have 1/4” NPT thread.
Operation
Before each use:
●
Drain water from air compressor tank and condensation from air lines. See air
compressor’s operators manual.
Disconnect the tool from the air supply before lubricating.
●
Lubricate tool, see “Maintenance” section in this manual.
●

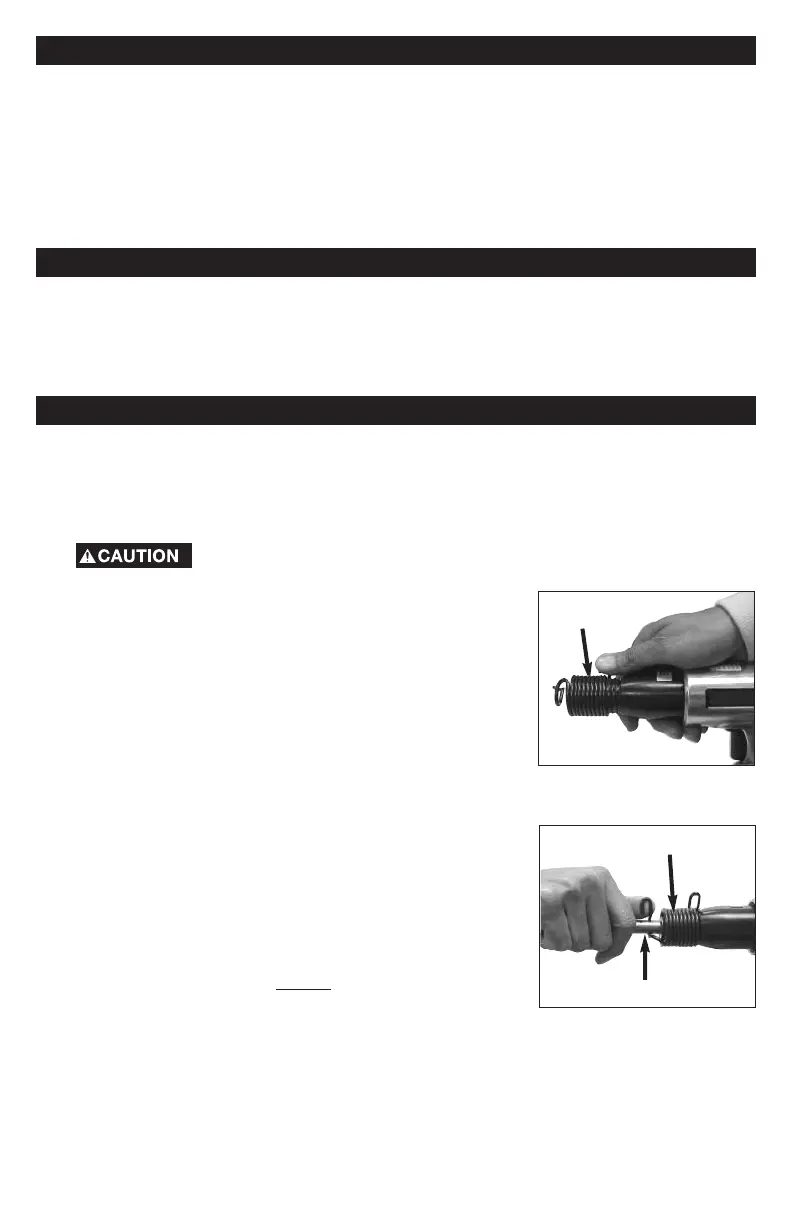

Using rear tab, as shown, remove spring retainer.
●
Place chisel into hammer.
●
Slide spring retainer over chisel.
●
Using front tab, as shown, tightly install spring retainer
over chisel. IMPORTANT: The spring retainer holds
chisel in place. It must be secure before the chisel can
operate properly.
●
Connect tool to air hose of recommended size. NOTE: The use of a quick connect
set makes connecting easier.
IMPORTANT: The use of air filters and air line
lubricators is recommended.
To use:
●
Turn air compressor on and allow air tank to fill.
●
Set the air compressor’s regulator to 90 PSI. This tool
operates at a maximum 90 PSI pressure.
●
Depress the trigger to operate tool.
●
Release trigger to stop tool.
Retaining Spring
Retaining Spring
Chisel
Remove
Install
To Next Page
