POSEIDON PE300-VE - Changing the Cartridge of the Filter Vessel

9.7.4 Changing the cartridge of the filter vessel
ü
Vacuum packing of the cartridge is undamaged.
ü
Special filter wrench (part of the scope of supply) is available
ü
A clean cloth is provided.
ü
A suitable lubricant is available, see Chapter 9.2 Resources for maintenance
and repairs, Page 122.
1.
De-pressurise the filter circuit, see Chapter 9.4 Depressurising the unit ,
Page 129.
2.
In case of filter systems with SECURUS filter monitoring: Disengage union nuts
detach the connector of the cable from the coupling.

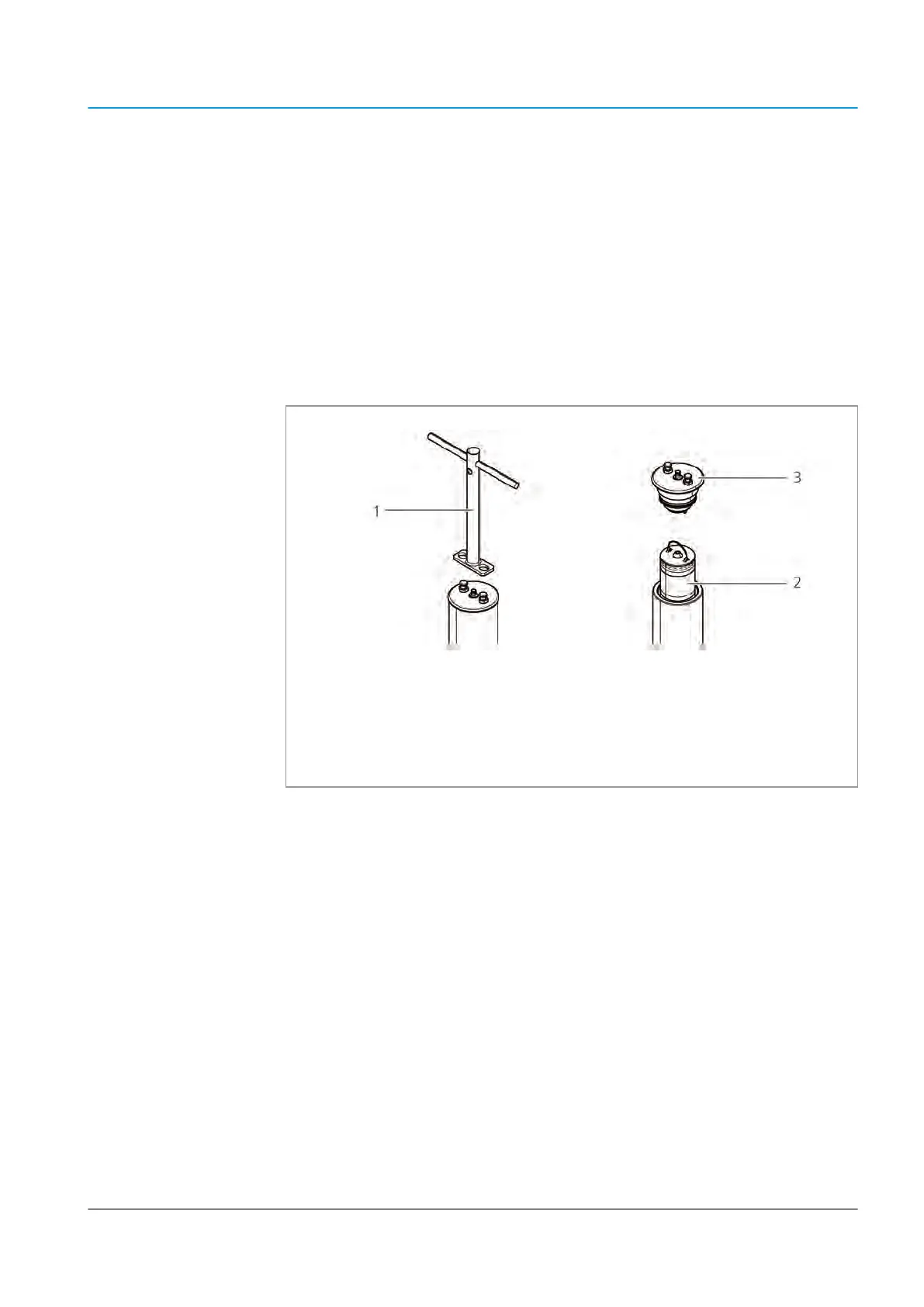

Fig. 53 Changing the cartridge in the cartridge filter
1 Special tool 3 Filter head
2 Cartridge
3.
Use the special filter spanner tool to unscrew and remove the filter head.
4.
Pull the cartridge out of the filter using the bracket.
5.
Wipe out the inside of the filter housing with a clean cloth. Check the filter
housing for corrosion and, if necessary, replace the defective parts.
6.
Remove the new cartridge from the vacuum packing, and remove the protec-
tion caps from both ends.
7.
Insert the cartridge into the filter and push it firmly down into the mounting.
8.
Clean and lightly lubricate the screwed fitting and thread of the filter head.
9.
Screw in the filter head manually, and use the special wrench to tighten it.
Maximum torque: 1 Nm
