Positron GAM-4-CRX User Manual

GAM Quick Installation Guide
Positron Access Solutions 10 Document 180-0212-001 R02
Each of the G.hn ports has two (2) status LEDs.

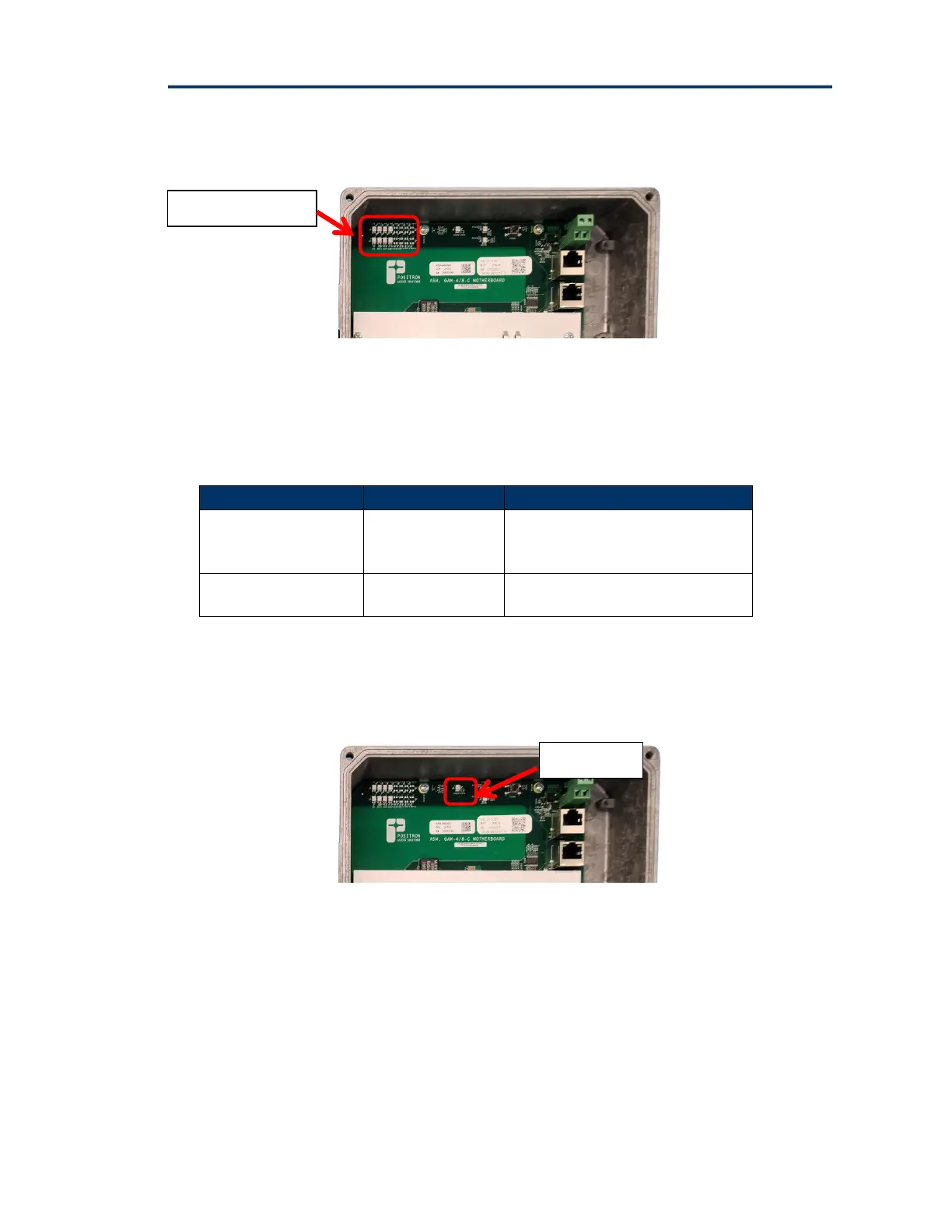

Figure 7: G.hn Ports LEDs
The top row of LEDs indicates the state of the G.hn link while the bottom row
indicates the presence of the Reverse Power Feed source (from a G1001-CR
device at the customer end).
LED
Condition
Function
G.hn ports
Off
Blinking
On
Disabled or Link Down
Bad or low speed G.hn link
Link is Up
G.hn port power
Off
Green
Always ON for the GAM-4-CX
since it is locally powered
Table 2: G.hn Ports LED indicators
The SFP+ port of the GAM has a dedicated status LED located near the top of the
PCB, to the right of the G.hn LEDs.
Figure 8: SFP+ LED
G.hn Port LEDs
SFP+ LED
