Potterton Paramount 40 - Section 6: Control Modules and Service

SECTION 6 POTTERTON COMMERCIAL PRODUCTS DIVISION
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
PAGE 28
PARAMOUNT
Heating Circuit Module HKM and Room Control Module (Optional Extra)

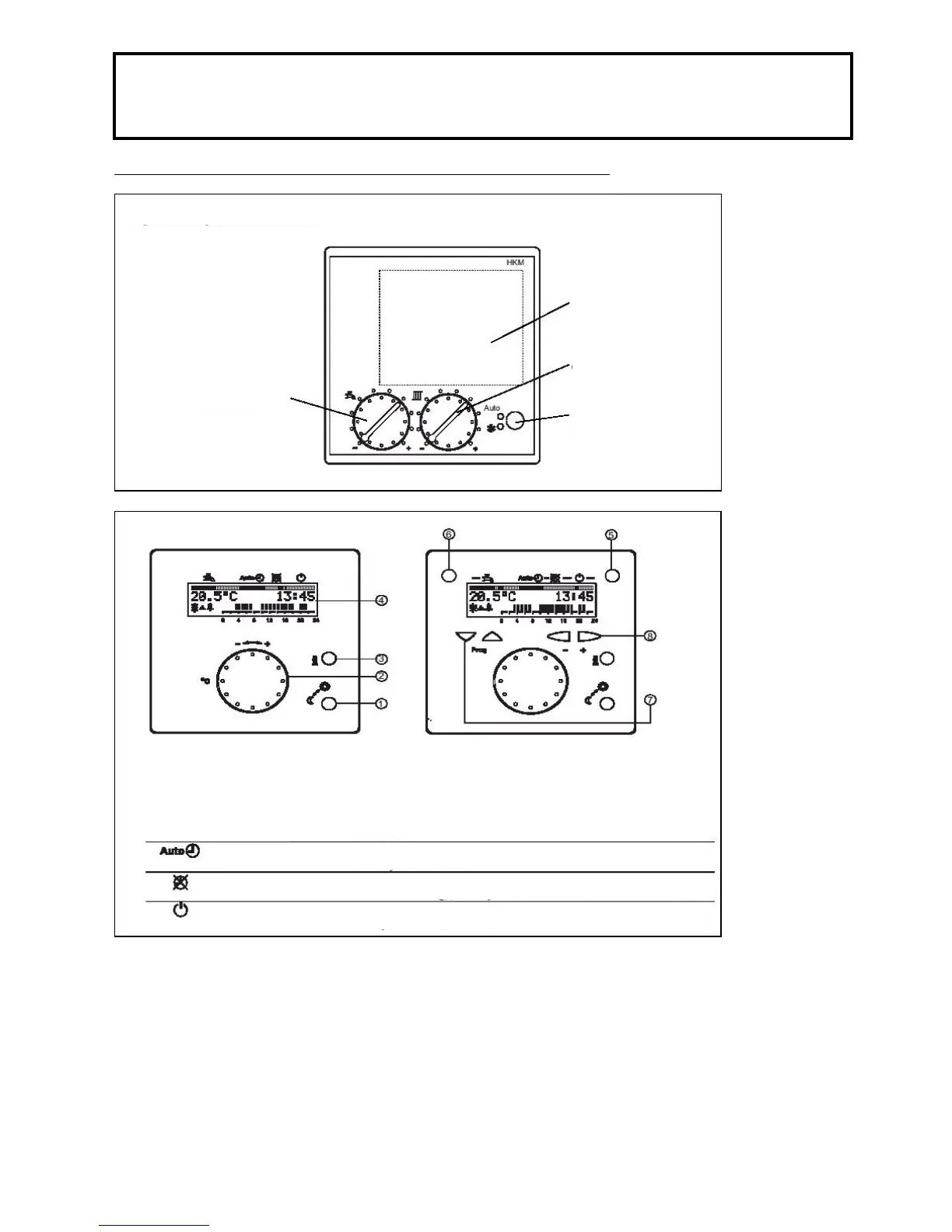

Fig. 7 Heating circuit module HKM
Automatic
summer/winter
changeover button
Heating control
Installation position
for EMS time clock
Hot water control
Fig. 8 Room control module RRG (Optional Extra)
Legend:
1 Presence button 3 Info button 5 Mode buttons 7 Program buttons
2 Temperature knob 4 Display field 6 Hot water button 8 Adjustment buttons
Operating modes:
Mode button
Function
Automatic operation
Heating function according to heating program
Holiday function effective
Continuous operation
Heating circuit continuous (according to room temp setting
Or reduced setting); holiday function not active
Stand
-
by
Heating circuit switched off Holiday function not effective;
Frost protection functions
active
