Assembly Instructions:

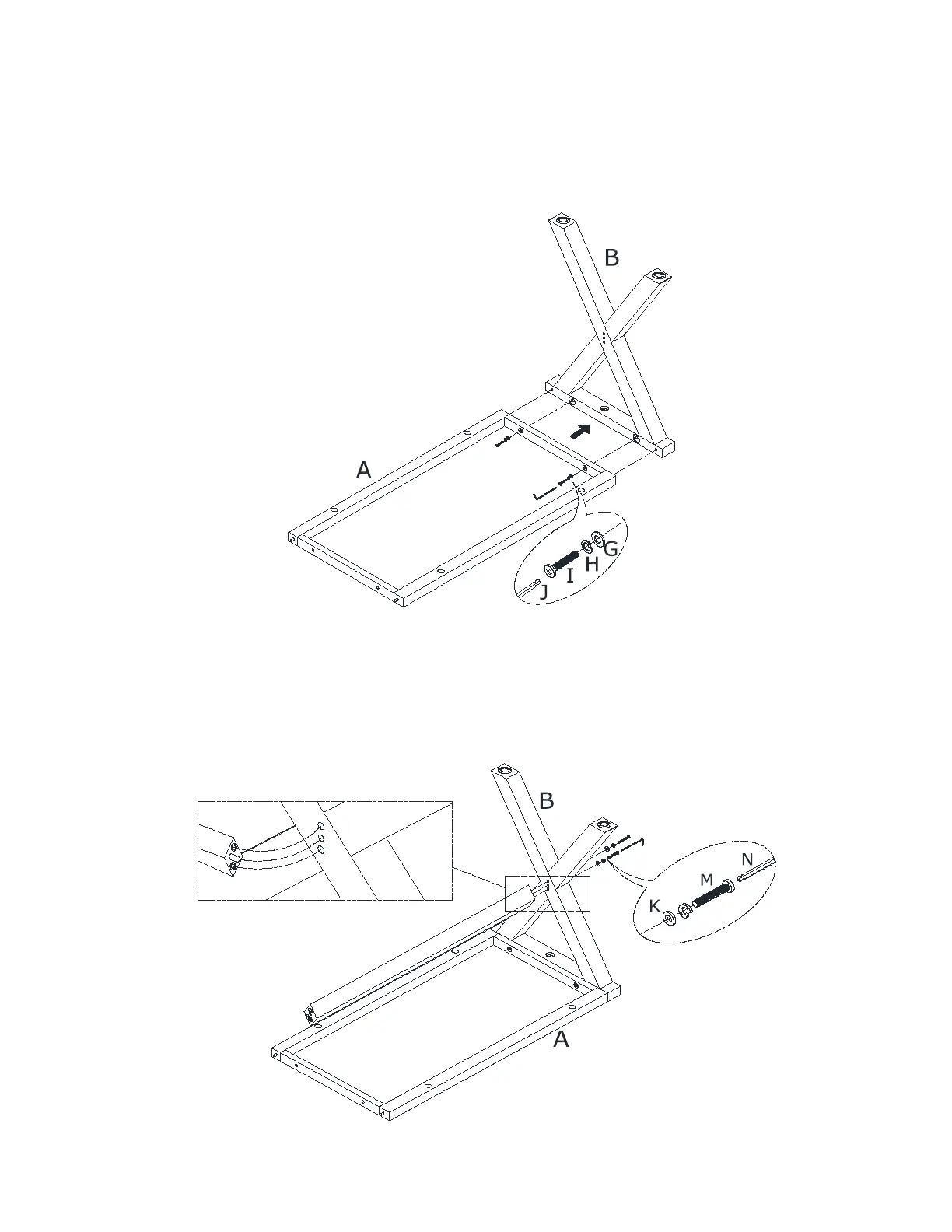

1. Place the Top Frame (A) upside down on a carpet, or on the foam from the shipping box. Attach the X-Bases
(B) to the Top Frame (A) by inserting the wood dowels (on the frame) into the pre-drilled holes on the X-Base.
Insert the Short Allen Bolt (I) through the Small Lock Washer (G), Small Flat Washer (F), and through the pre-
drilled holes on the frame. Use the Allen Key (J) to tighten the 2 bolts (I) into the nuts embedded in the X-
Base.
2. Attach the Stretcher (C) to the X-Base (B) by inserting the wood dowel, at the two ends of the stretcher, into
the pre-drilled hole at the center of the X- base. Insert the Long Allen Bolt (M) through Large Lock Washer (L),
Flat Washer (K), and pre- drilled holes on the X-Base (B). Use the Allen Key (N) to tighten the 2 bolts (M) into
the nuts embedded in the Stretcher. Hold the other end of the Stretcher for the next assembly.
