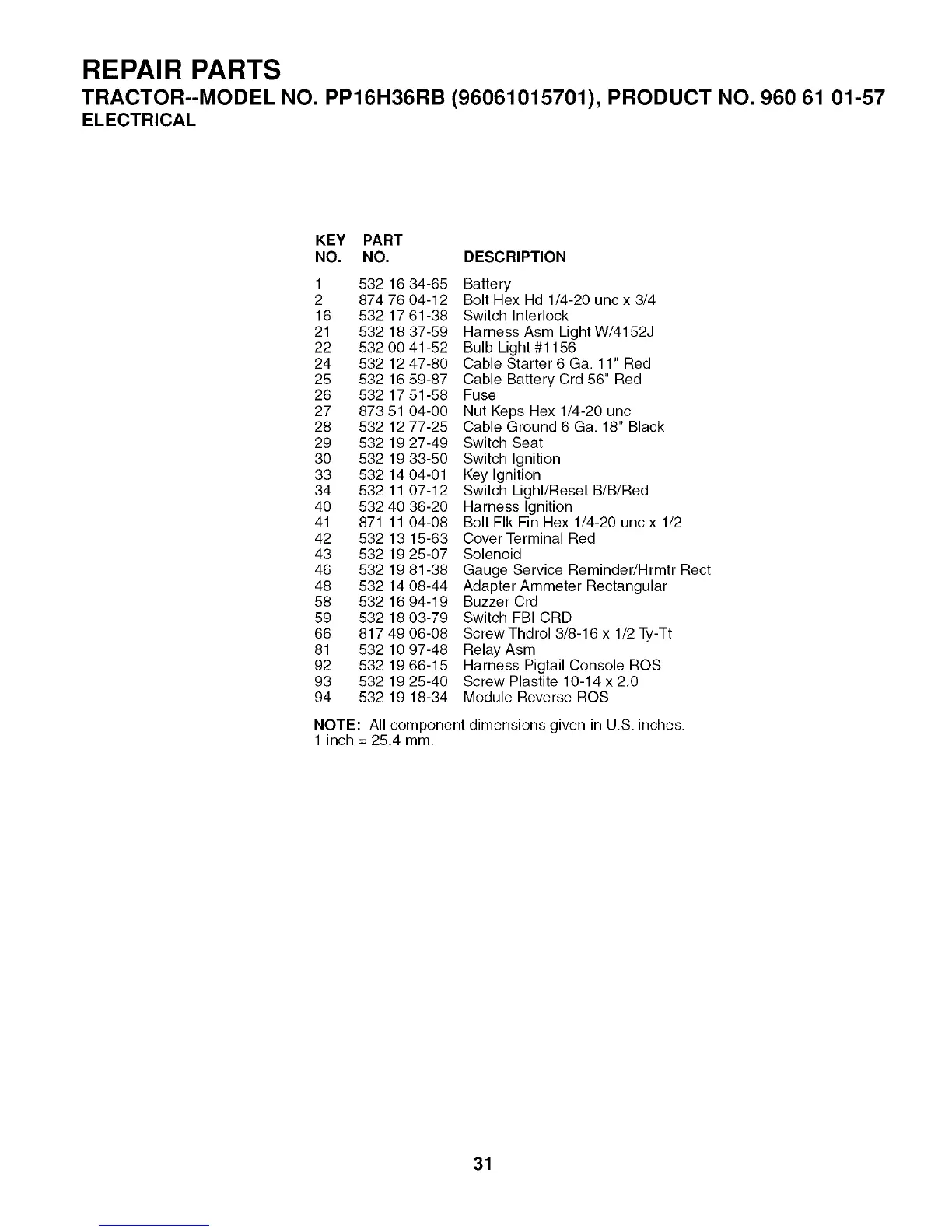

REPAIR PARTS
TRACTOR--MODEL NO. PP16H36RB (96061015701), PRODUCT NO. 960 61 01-57
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65
2 874 76 04-12
16 532 17 61-38
21 532 18 37-59
22 532 00 41-52
24 532 12 47-80
25 532 16 59-87
26 532 17 51-58
27 873 51 04-00
28 532 12 77-25
29 532 19 27-49
30 532 19 33-50
33 532 14 04-01
34 532 11 07-12
40 532 40 36-20
41 871 11 04-08
42 532 13 15-63
43 532 19 25-07
46 532 19 81-38
48 532 14 08-44
58 532 16 94-19
59 532 18 03-79
66 817 49 06-08
81 532 10 97-48
92 532 19 66-15
93 532 19 25-40
94 532 19 18-34
Battery
Bolt Hex Hd 1/4-20 unc x 3/4
Switch Interlock
Harness Asm Light W/4152J
Bulb Light #1156
Cable Starter 6 Ga. 11" Red
Cable Battery Crd 56" Red
Fuse
Nut Keps Hex 1/4-20 unc
Cable Ground 6 Ga, 18" Black
Switch Seat
Switch Ignition
Key Ignition
Switch Light/Reset B/B/Red
Harness Ignition
Bolt FIk Fin Hex 1/4-20 unc x 1/2
Cover Terminal Red
Solenoid
Gauge Service Reminder/Hrmtr Rect
Adapter Ammeter Rectangular
Buzzer Crd
Switch FBI CRD
Screw Thdrol 3/8-16 x 1/2 Ty-Tt
Relay Asm
Harness Pigtail Console ROS
Screw Plastite 10-14 x 2,0
Module Reverse ROS
NOTE: All component dimensions given in U.S. inches,
1 inch = 25,4 ram.
