Poulan Pro PP16H36RB - Mower Lift

REPAIR PARTS

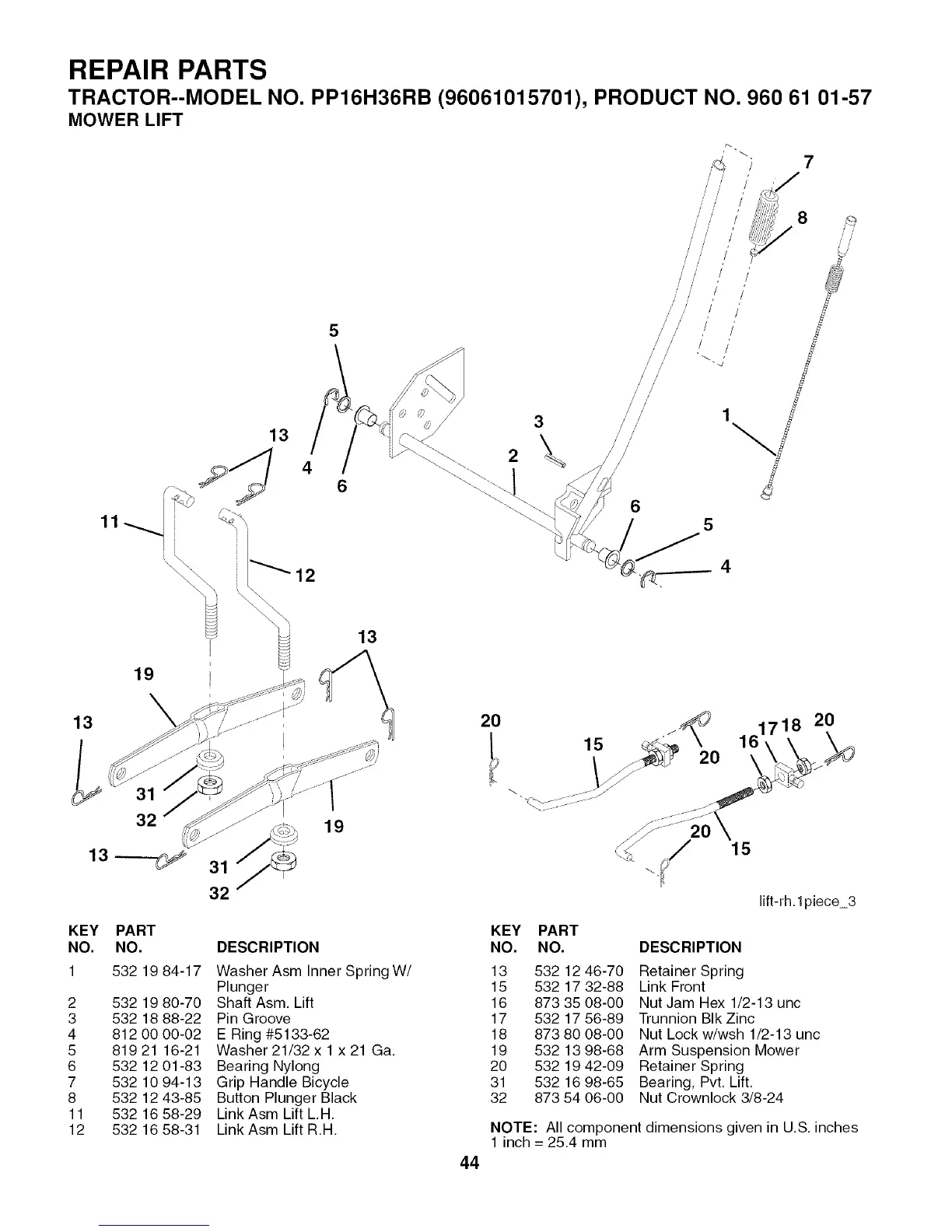

TRACTOR--MODEL NO. PP16H36RB (96061015701), PRODUCT NO. 960 61 01-57
MOWER LIFT
13
5
4
6
12
3
2
/
I
I I
]
I
/ '
I'
6
5
\
13
19
31
32
KEY PART
NO. NO.
1 532 19 84-17
2 532 19 80-70
3 532 18 88-22
4 812 00 00-02
5 819 21 16-21
6 532 12 01-83
7 532 10 94-13
8 532 12 43-85
11 532 16 58-29
12 532 16 58-31
32
19
DESCRIPTION
Washer Asm Inner Spring W/
Plunger
Shaft Asm, Lift
Pin Groove
E Ring #5133-62
Washer 21/32 x 1 x 21 Ga.
Bearing Nylong
Grip Handle Bicycle
Button Plunger Black
Link Asm Lift L,H.
Link Asm Lift R.H,
44
1718 20
16
15
KEY PART
NO. NO.
13 532 12 46-70
15 532 17 32-88
16 873 35 08-00
17 532 17 56-89
18 873 80 08-00
19 532 13 98-68
20 532 19 42-09
31 532 16 98-65
32 873 54 06-00
lift-rh. 1piece 3
DESCRIPTION
Retainer Spring
Link Front
Nut Jam Hex 1/2-13 unc
Trunnion BIk Zinc
Nut Lock w/wsh 1/2-13 unc
Arm Suspension Mower
Retainer Spring
Bearing, Pvt. Lift.
Nut Crownlock 3/8-24
NOTE: All component dimensions given in U,S, inches
1 inch = 25.4 mm
