Poulan Pro PP16H36RB - Seat Assembly

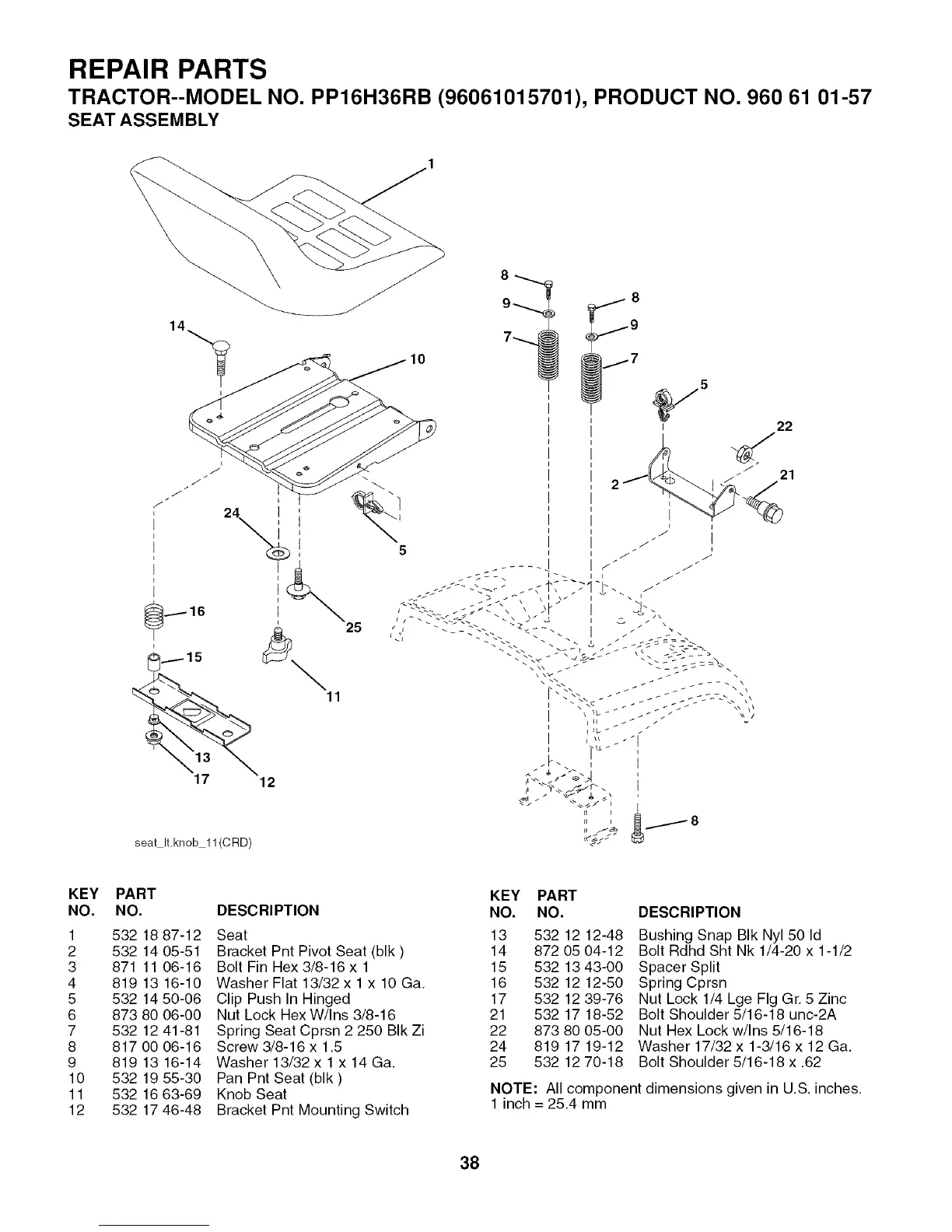

REPAIR PARTS
TRACTOR--MODEL NO. PP16H36RB (96061015701), PRODUCT NO. 960 61 01-57
SEAT ASSEMBLY
r
17 12
seat It.knob 11(CRD)
25
8
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
PART
NO.
532 18 87-12
532 14 05-51
871 11 06-16
819 13 16-10
532 14 50-06
873 80 06-00
532 12 41-81
817 00 06-16
819 13 16-14
532 19 55-30
532 16 63-69
532 17 46-48
DESCRIPTION
Seat
Bracket Pnt Pivot Seat (blk)
Bolt Fin Hex 3/8-16 x 1
Washer Flat 13/32 x 1 x 10 Ga.
Clip Push In Hinged
Nut Lock Hex W/Ins 3/8-16
Spring Seat Cprsn 2 250 BIk Zi
Screw 3/8-16 x 1.5
Washer 13/32 x 1 x 14 Ga.
Pan Pnt Seat (blk)
Knob Seat
Bracket Pnt Mounting Switch
KEY PART
NO. NO.
13 532 12 12-48
14 872 05 04-12
15 532 13 43-00
16 532 12 12-50
17 532 12 39-76
21 532 17 18-52
22 873 80 05-00
24 819 17 19-12
25 532 12 70-18
DESCRIPTION
Bushing Snap BIk Nyl 50 Id
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
Spacer Split
Spring Cprsn
Nut Lock 1/4 Lge Fig Gr. 5 Zinc
Bolt Shoulder 5/16-18 unc-2A
Nut Hex Lock w/Ins 5/16-18
Washer 17/32 x 1-3/16 x 12 Ga.
Bolt Shoulder 5/16-18 x .62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
38
