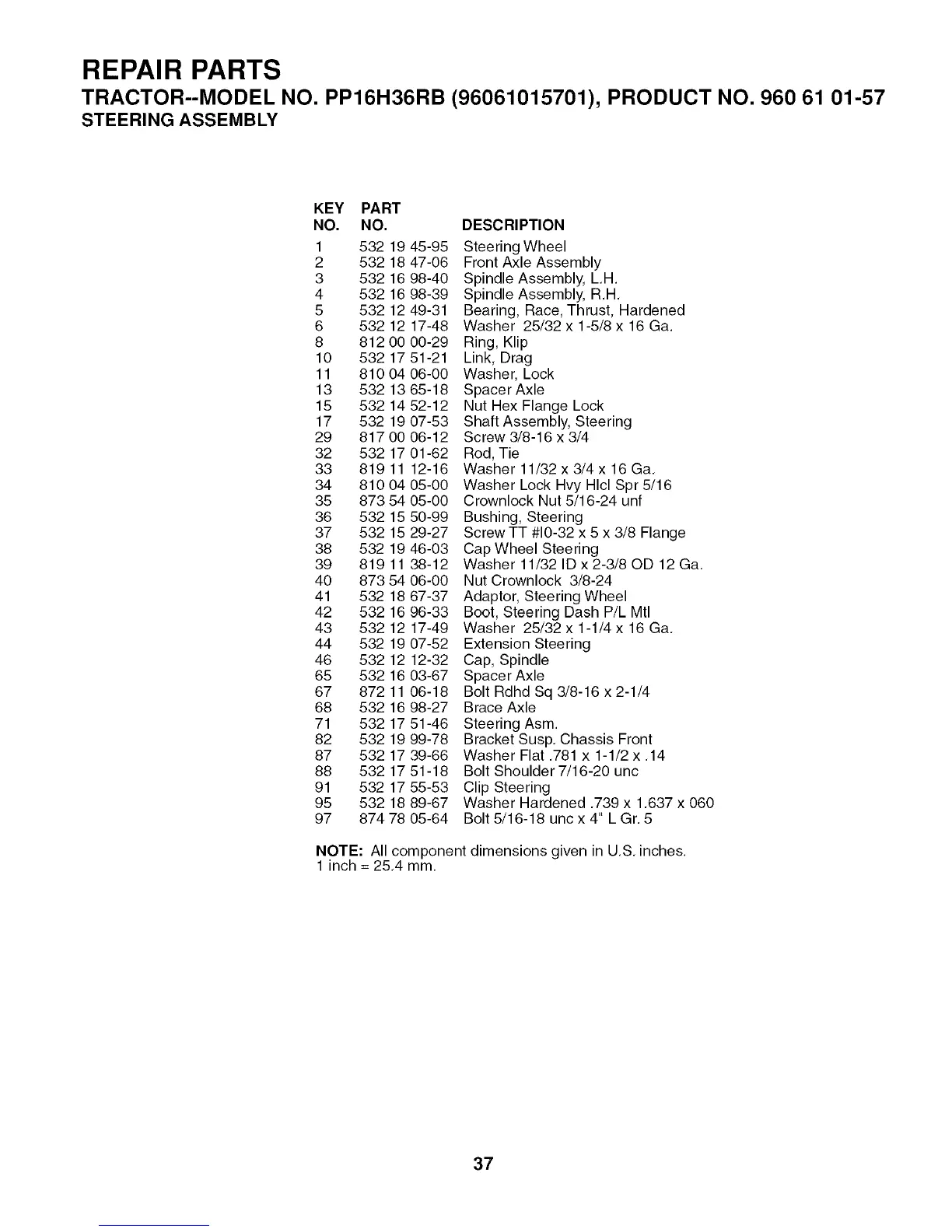

REPAIR PARTS
TRACTOR--MODEL NO. PP16H36RB (96061015701), PRODUCT NO. 960 61 01-57
STEERING ASSEMBLY
KEY PART
NO. NO.
1 532 19 45-95
2 532 18 47-06
3 532 16 98-40
4 532 16 98-39
5 532 12 49-31
6 532 12 17-48
8 812 00 00-29
10 532 17 51-21
11 810 04 06-00
13 532 13 65-18
15 532 14 52-12
17 532 19 07-53
29 8170006-12
32 532 17 01-62
33 819 11 12-16
34 810 04 05-00
35 873 54 05-00
36 532 15 50-99
37 532 15 29-27
38 532 19 46-03
39 819 11 38-12
40 873 54 06-00
41 532 18 67-37
42 532 16 96-33
43 532 12 17-49
44 532 19 07-52
46 532 12 12-32
65 532 16 03-67
67 872 11 06-18
68 532 16 98-27
71 532 17 51-46
82 532 19 99-78
87 532 17 39-66
88 532 17 51-18
91 532 17 55-53
95 532 18 89-67
97 874 78 05-64
DESCRIPTION
Steering Wheel
Front Axle Assembly
Spindle Assembly, L.H.
Spindle Assembly, R.H.
Bearing, Race, Thrust, Hardened
Washer 25/32 x 1-5/8 x 16 Ga.
Ring, Klip
Link, Drag
Washer, Lock
Spacer Axle
Nut Hex Flange Lock
Shaft Assembly, Steering
Screw 3/8-16 x 3/4
Rod, Tie
Washer 11/32 x 3/4 x 16 Ga.
Washer Lock Hvy Hlcl Spr 5/16
Crownlock Nut 5/16-24 unf
Bushing, Steering
Screw TT #10-32 x 5 x 3/8 Flange
Cap Wheel Steering
Washer 11/32 ID x 2-3/80D 12 Ga.
Nut Crownlock 3/8-24
Adaptor, Steering Wheel
Boot, Steering Dash P/L Mtl
Washer 25/32 x 1-1/4 x 16 Ga.
Extension Steering
Cap, Spindle
Spacer Axle
Bolt Rdhd Sq 3/8-16 x 2-1/4
Brace Axle
Steering Asm.
Bracket Susp. Chassis Front
Washer Flat .781 x 1-1/2 x .14
Bolt Shoulder 7/16-20 unc
Clip Steering
Washer Hardened .739 x 1.637 x 060
Bolt 5/16-18 unc x 4" L Gr. 5
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 ram.
37
