Poulan Pro PR271 - Control Panel; Discharge Chute Parts

25
KEY PART
NO. NO. DESCRIPTION

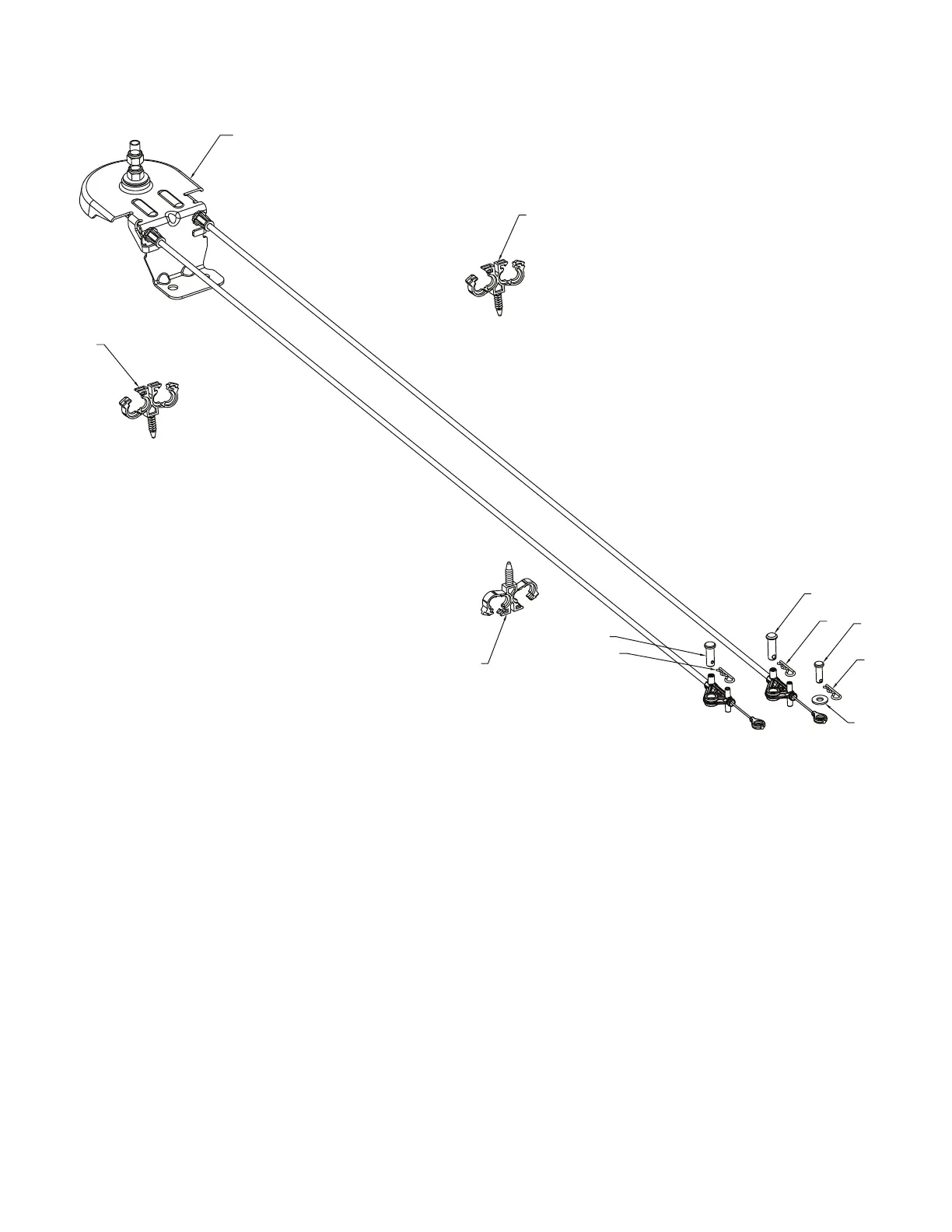

REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
3
4
4
4
5
5
5
6
7
05.08.010-A
1 587 80 34-01 CABLE CHUTE ROTATOR ASM
2 581 32 94-01 PIN CLEVIS 5/6 X 7/8
3 877 10 08-12 PIN CLEVIS 1/4 X 3/4
4 532 42 33-03 HAIRPIN SOFT ZINC
5 584 65 22-01 CLIP CONDUIT DOUBLE
6 586 68 21-01 WASHER
7 587 13 08-01 PIN CLEVIS 5/16 X 1
