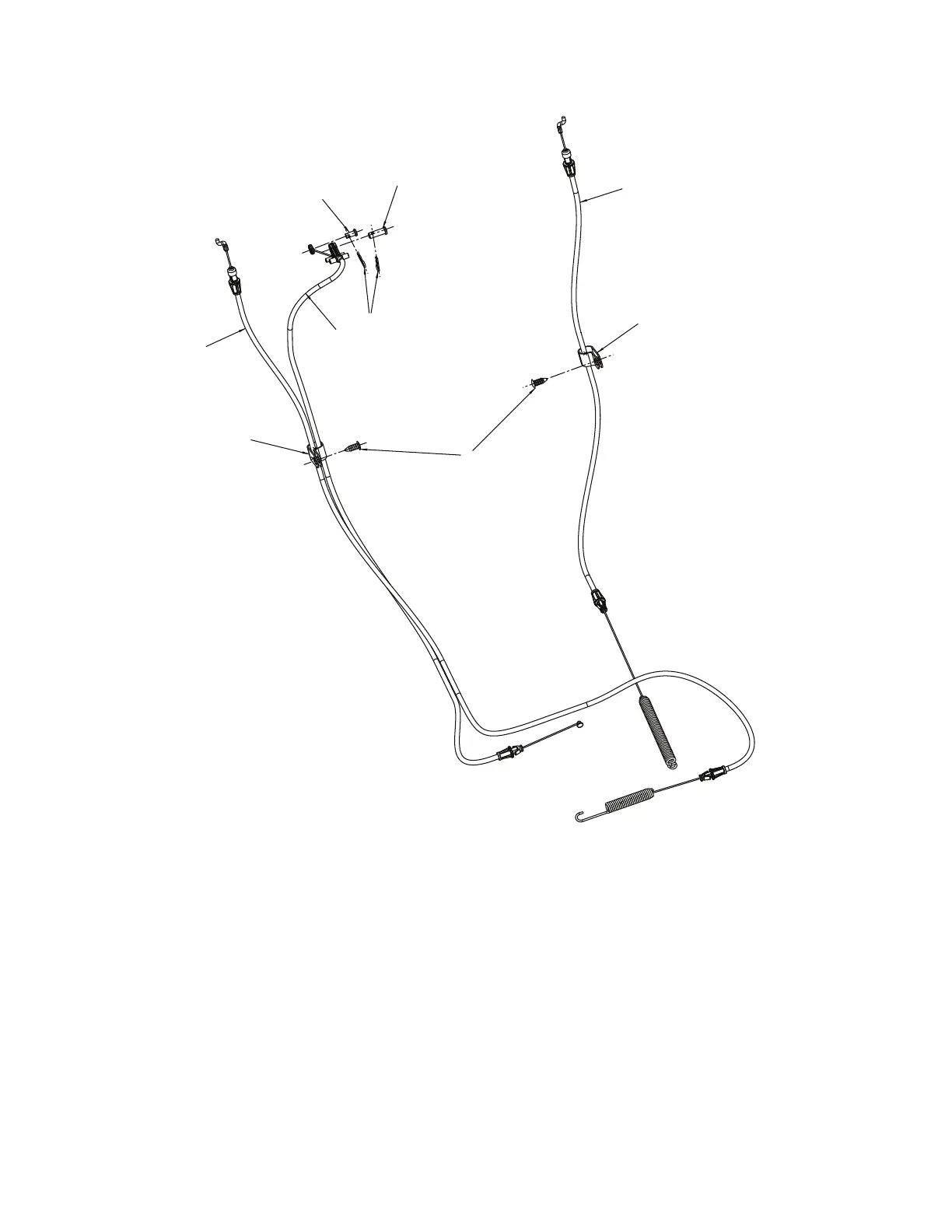

REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
3
4
4
1
2
5
6
7
8
05.08.011-C
1 582 51 90-01 CABLE CONTROL DRIVE
2 588 11 38-01 CABLE CONTROL AUGER
3 588 12 23-01 CABLE CONTROL SPEED
4 532 19 79-91 CLIP CABLE
5 532 42 81-24 FASTENER PUSH .250
6 581 32 94-01 PIN CLEVIS 5/16
7 532 42 33-03 HAIRPIN
8 585 80 83-01 PIN CLEVIS 1/4
