4
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions are given in U.S. inches.
1 inch = 25.4 mm

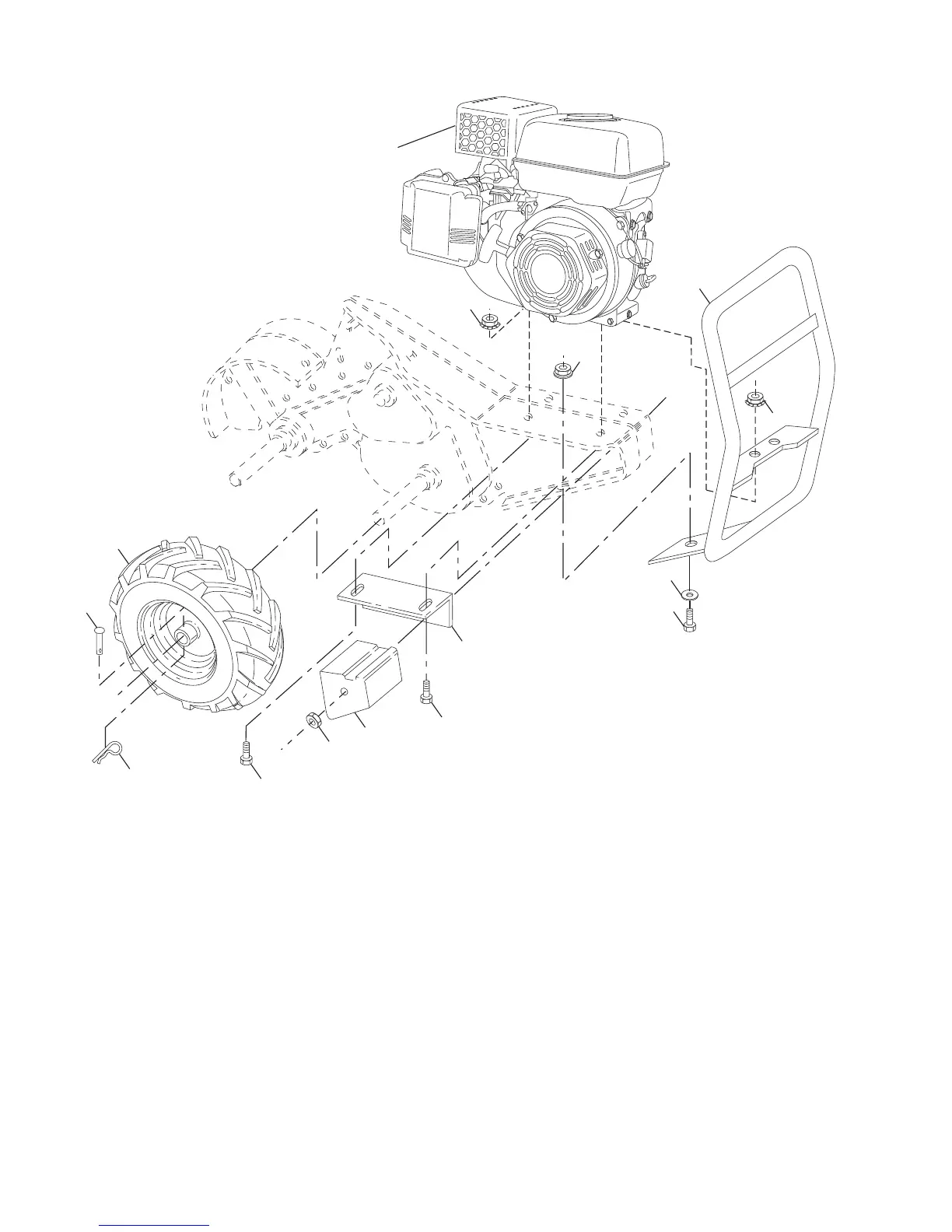

FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700)
MAINFRAME, LEFT SIDE
1 532 18 51-90 Bumper
2 873 97 05-00 Nut, Lock Hex Flange
3 819 11 11-16 Washer 11/32 X11/16 x 16 Ga.
4 874 76 05-12 Bolt, Hex 5/16-18 x 3/4
5 532 10 23-32 Bracket Reinforcement RH
7 532 10 21-73 Counter Weight,
10 874 76 05-24 Bolt, 5/16-18 x 1-1/2
11 532 12 47-88 Clip, Hairpin
12 532 12 68-75 Rivet, Drilled
13 532 10 21-90 Tire
532 44 18-69 Rim
532 12 47-18 Tire Valve
15 - - - - - - - - Engine, LCT PLMHK14600124P
(Order parts from engine manufacturer)
22 874 76 05-28 Bolt, 5/16-18 x 1-3/4
44 873 51 06-00 Nut, Keps, 3/8-16
MAINFRAME?RIGHT?,#4?
