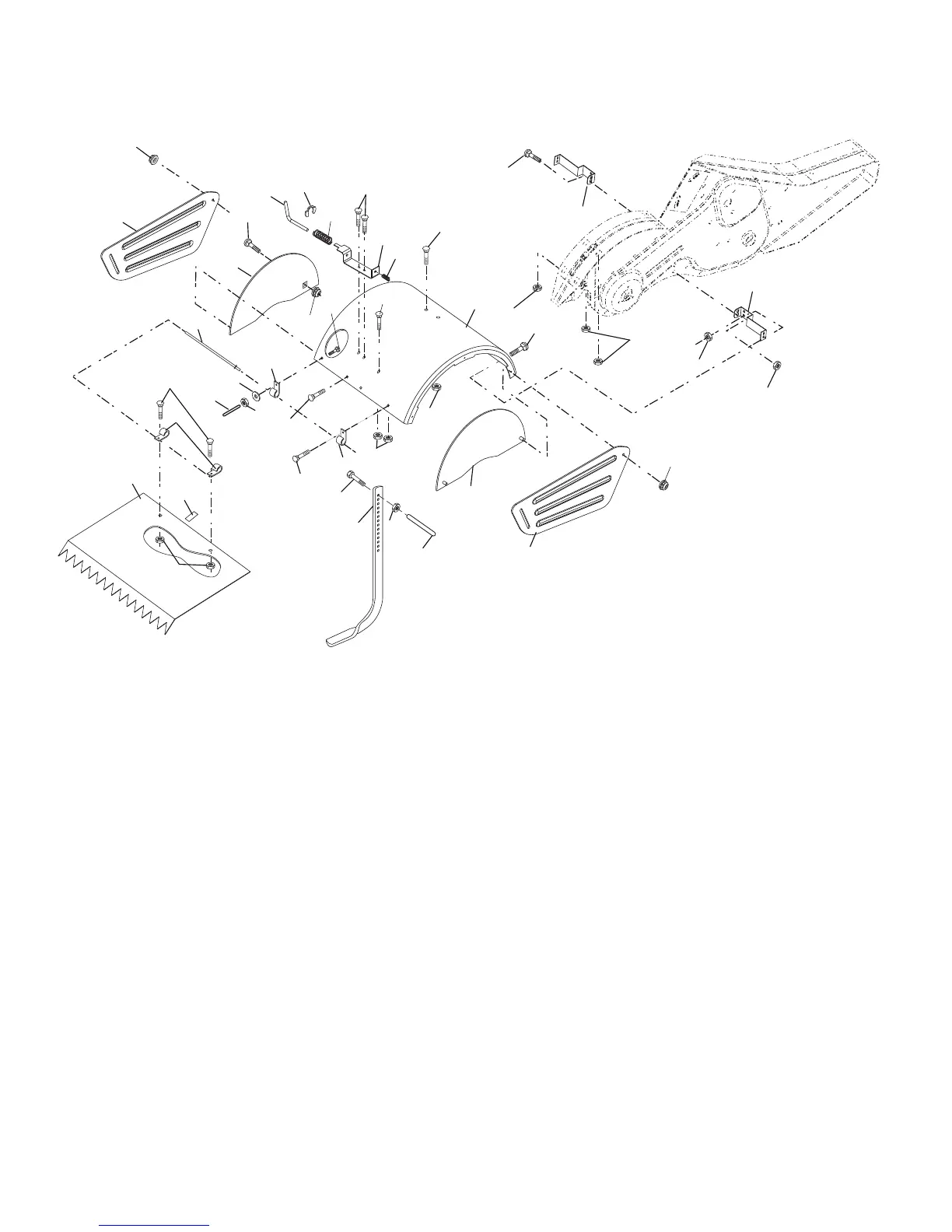

FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700)
TINE SHIELD









































TINE?SHIELD??IN?R




KEY PART
NO. NO. DESCRIPTION
23 532 00 44-40 Hinge
24 872 14 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
25 532 12 47-17 Cap, Vinyl
26 532 10 92-27 Pad, Idler
27 532 12 47-14 Shield, Leveling
28 532 12 05-88 Pin, Hinge
29 532 44 18-10 Shield, Side
30 873 97 05-00 Nut, Lock Hx Flange
32 873 22 04-00 Nut, Fin, Hex 1/4-20 unc
33 810 04 04-00 Washer, Lock Hvy Helical 1/4
35 872 11 05-05 Bolt, Carr. 5/16-18 x 5/8
37 873 80 05-00 Nut, Lock w/Ins. 5/16-16 unc
38 873 51 05-00 Nut Keps 5/16-18 unc
KEY PART
NO. NO. DESCRIPTION
1 873 90 05-00 Nut, Lock Hex Flange 5/16-18
2 532 18 67-02 Shield, Side, Outer L. H.
3 532 00 83-93 Pin, Stake, Depth
4 812 00 00-35 Ring, Klip
5 532 18 08-47 Bolt 5/16-18 x 3/4
6 532 00 83-94 Spring
7 532 00 83-92 Bracket, Latch
8 532 12 47-36 Spring, Depth Stake
9 532 12 47-36 Shield, Tine
13 872 11 05-10 Bolt, Carr. 5/16-18 x 1-1/4 Gr. 5
14 532 12 43-11 Bracket, Shield Tine
15 532 18 67-03 Shield, Side, Outer R.H.
16 873 90 04-00 Nut, Flange Hex 1/4-20 unc
18 872 04 04-10 Bolt, Carriage 1/4-20 x 1-1/4 r. 5
19 532 10 27-01 Grip
20 873 22 06-00 Nut, Hex 3/8-16
21 532 10 21-56 Stake, Depth
22 874 93 06-32 Bolt, Hex 3/8-16 x 2
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
