Poulan Pro Pro PRRT900 - Mainframe, Left Side

3
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

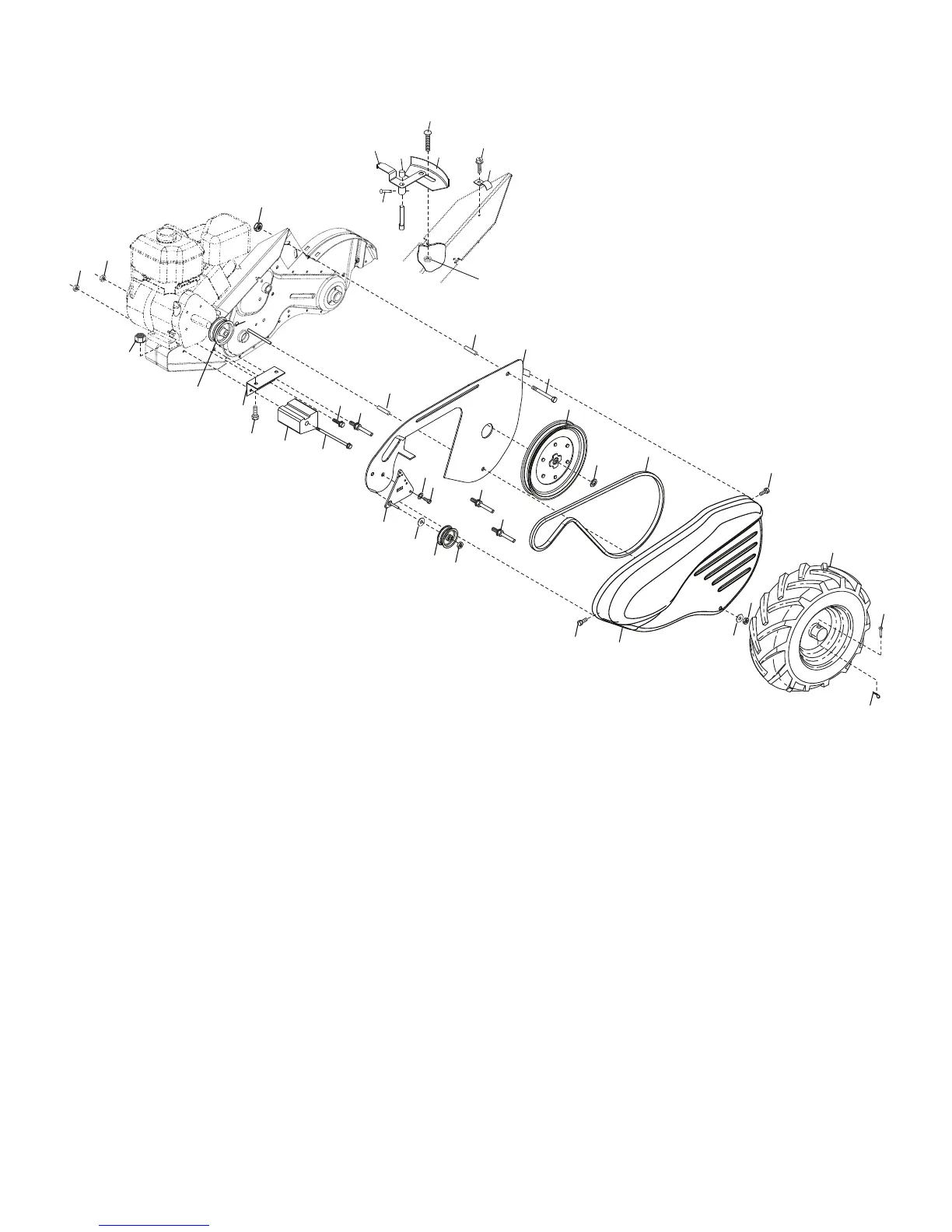

FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700)
MAINFRAME, LEFT SIDE
NOTE: All component dimensions are given in U.S. inches.
1 inch = 25.4 mm
3 873 22 06-00 Nut, Hex 3/8-16
4 532 43 24-20 Shield, Inner Belt Guard RT
5 532 16 43-29 Screw, Shift Lever
6 532 11 01-11 Lever, Shift
7 872 11 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 532 00 87-00 Plate, Shift Indicator
9 532 08 67-77 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2
10 532 00 94-84 Clip
12 873 51 04-00 Nut, Keps Hex 1/4-20 unc
13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8
14 532 15 61-17 Spacer, Split 0.327 x 0.42 x 1.220
15 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
16 532 14 51-02 Sheave, Transmission
19 812 00 00-28 Retainer, Ring
21 532 11 06-52 Spacer, Split
22 874 77 05-08 Bolt, Hex 5/16-24 x 1/2
23 532 10 21-90 Tire
532 44 18-69 Rim
532 12 47-18 Tire, Valve
24 532 12 68-75 Rivet, Drilled
25 532 12 47-88 Clip, Hairpin
26 532 16 77-78 Guard, Belt
27 532 13 28-01 Belt, V
28 532 10 46-79 Pulley, Idler
29 812 00 00-32 Ring, Klip
30 532 15 92-29 Bracket, Idler
31 532 10 23-84 Bolt, 3/8-16 unc x 12
32 532 10 21-41 Shaft, Idler Arm
33 874 76 06-16 Bolt, 3/8-16 unc x 1
34 532 10 23-83 Counterweight, L. H.
36 532 10 23-31 Bracket, Reinforcement, L. H.
37 532 13 08-12 Sheave, Engine
38 874 76 05-44 Bolt, 5/16-18 x 2-3/4
39 532 14 00-62 Cap, Plunger Blk
40 532 17 04-88 Screw
44 873 80 05-00 Nut, 5/16-18
65 873 97 05-00 Nut, Lock Hex Flange
66 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
67 874 76 05-24 Bolt, 5/16-18 unc x 1-1/2
68 873 51 06-00 Nut, Keps 3/8-16 unc
69 532 16 41-73 Keeper, Belt, Engine
68
65
68
65
67
34
31
30
28
3
40
26
15
66
44
40
27
19
16
38
4
21
14
32
69
69
33
36
13
37
39
6
5
8
12
7
9
10
29
22
mainframe_left_25
24
23
25
