Poulan Pro Pro PRRT900 - Transmission

5
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions are given in U.S. inches.
1 inch = 25.4 mm
FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700)

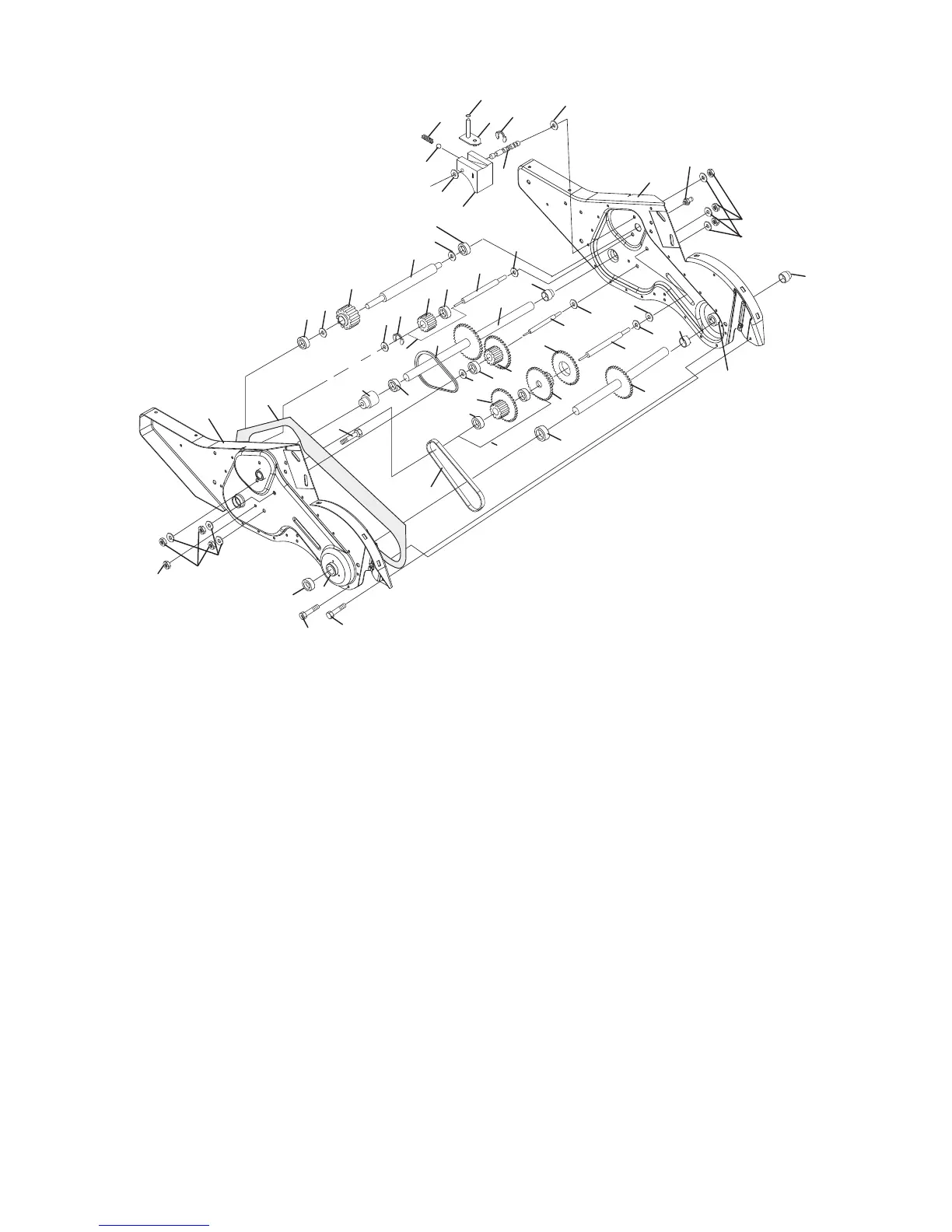

TRANSMISSION
12
13
15
16
14
9
9
8
5
18
23
22
21
19
18
3
2
31
7
6
5
4
11
10
29
30
28
18
32
33
34
18
48
60
24
44
18
42
43
41
49
40
39
37
38
37
50
36
20
25
27
35
25
24
44
51
58
53
52
53
transmission_19.5b_r1
62
1 532 18 85-54 Transmission Assembly
(In cludes Key Nos. 2-53)
2 532 18 84-82 Gearcase, L.H. w/Bearing
(In cludes Key No. 4)
3 532 43 10-22 Gasket, Gearcase
4 532 00 50-20 Bearing, Needle
5 532 00 13-70 Washer, 5/8 x 1.10 x 1/32
6 532 13 73-35 Pinion, Input
7 532 14 51-01 Shaft, In put
8 532 12 47-92 Bearing, Needle
9 532 15 44-67 Washer, Seal
10 532 12 46-97 Ball, Steel
11 532 10 03-71 Spring, Shift, Fork
12 532 10 61-60 O-Ring
13 532 14 21-45 Asm. Bracket Shift
14 532 00 83-53 Fork, Shift
15 812 00 00-39 Ring, Klip
16 532 15 44-66 Shaft, Shift
18 532 00 43-58 Washer
19 812 00 00-40 Ring, Klip
20 532 10 21-14 Gear, As sem bly, Reverse Idler
(Includes Key Nos. 21 and 22)
21 532 10 21-15 Gear, Re verse Idler
22 532 00 68-03 Bearing, Needle
23 532 10 21-11 Shaft, Re verse Idler
24 810 04 07-00 Washer, Lock 7/16
25 873 61 07-00 Nut, Hex 7/16-20
27 532 14 30-09 Bearing, Shaft, Ground Drive L.H.
28 532 10 63-90 Spacer 0.765 x 1.125 x 1.23
29 532 10 21-34 Chain #35-50 Pitch
30 532 15 07-37 Ground Shaft Assembly
31 532 14 30-08 Bearing, Shaft, Ground Drive R.H.
32 532 10 63-88 Spacer 0.70 x 1.00 x 1.150
33 532 10 21-21 Sprocket and Gear Assembly
34 532 10 21-12 Shaft, Re duc tion (2nd)
35 532 10 21-01 Screw, Whiz, Lock 5/16-18 x 3-1/2
36 532 15 43-55 Sprocket Assembly w/Bearing
(Includes Key Nos. 37 and 38)
37 532 12 47-91 Bearing, Needle
38 532 15 43-56 Sprocket, Tine
39 532 10 53-45 Gear, Clus ter, Red 1st & 2nd
40 532 10 53-46 Gear, Re verse
41 532 00 83-58 Shaft, Re duc tion (1st)
42 532 00 42-20 Washer, Thrust
43 532 10 61-46 Spacer 1.01 x 1.75 x 0.760
44 532 15 52-36 Seal Asm, Oil
48 532 18 84-85 Gearcase, R.H. w/Bearing
(In cludes Key No. 8)
49 532 43 14-85 Shaft, Tine
50 532 10 61-47 Chain, Roller #50-50 Pitch
51 817 72 04-08 Screw 1/4-20 x 1/2
52 873 22 05-00 Nut, Hex 5/16-18
53 532 16 51-40 Kit, Bearing
58 532 17 95-20 Bolt Shoulder
60 532 18 32-26 Fitting Grease
62 532 43 10-15 Spacer 1.015 x 1.50 x .650
- - 532 00 60-66 Grease, Plastilube #1
