Once your battery is fully charged, connected and
powered, your trolley is ready to use.
Note: Your trolley includes a power save mode to extend
the life of your battery. After 5 minutes of sitting idle, the
trolleys display will turn o. To wake up, press the display
or rotate the control dial.
Battery Gauge
Located on the left side of the display. The charge state
of your battery will determine how much of the bar will
illuminate.
As you progress through the round the inner bar of the
gauge will drop. When the bar has fully extinguished it
indicates that the battery is at. When your battery is new,
the bar may only drop a small amount during the entire
round. As your battery ages, you may lose more.
If the bar is completely extinguished; (1) you may not have
fully charged your battery (2) your battery is nearing the
end of its useful life and should be replaced.
Touch Display
Press the display with your nger within the highlighted
area, shown right. Touch to operate menus and settings.
Swipe left and right to toggle between GPS measurement
modes. Swipe up and down to navigate menus.
Note: you can operate the display in wet weather although
keeping the display clear of water will provide the best
performance.
Motor Controls
Central Control Dial:
Rotate to adjust the speed of the trolley from 0 to 9.
Press to pause and resume the motor at your selected
speed.
Press and hold to activate the automatic distance function.
Power Indicator:
Displays whether power is being applied to the drive
system. (Green - ON) (Red - OFF)
Speed Setting:
Rotate the control dial to adjust the speed of the trolley
from 0 - 9. Press control dial to start/pause and resume
your selected speed.
Note: the motor has a 15-minute time out function and
will pause the motor after running continuously for this
duration. Press the control dial to resume.
Page 7

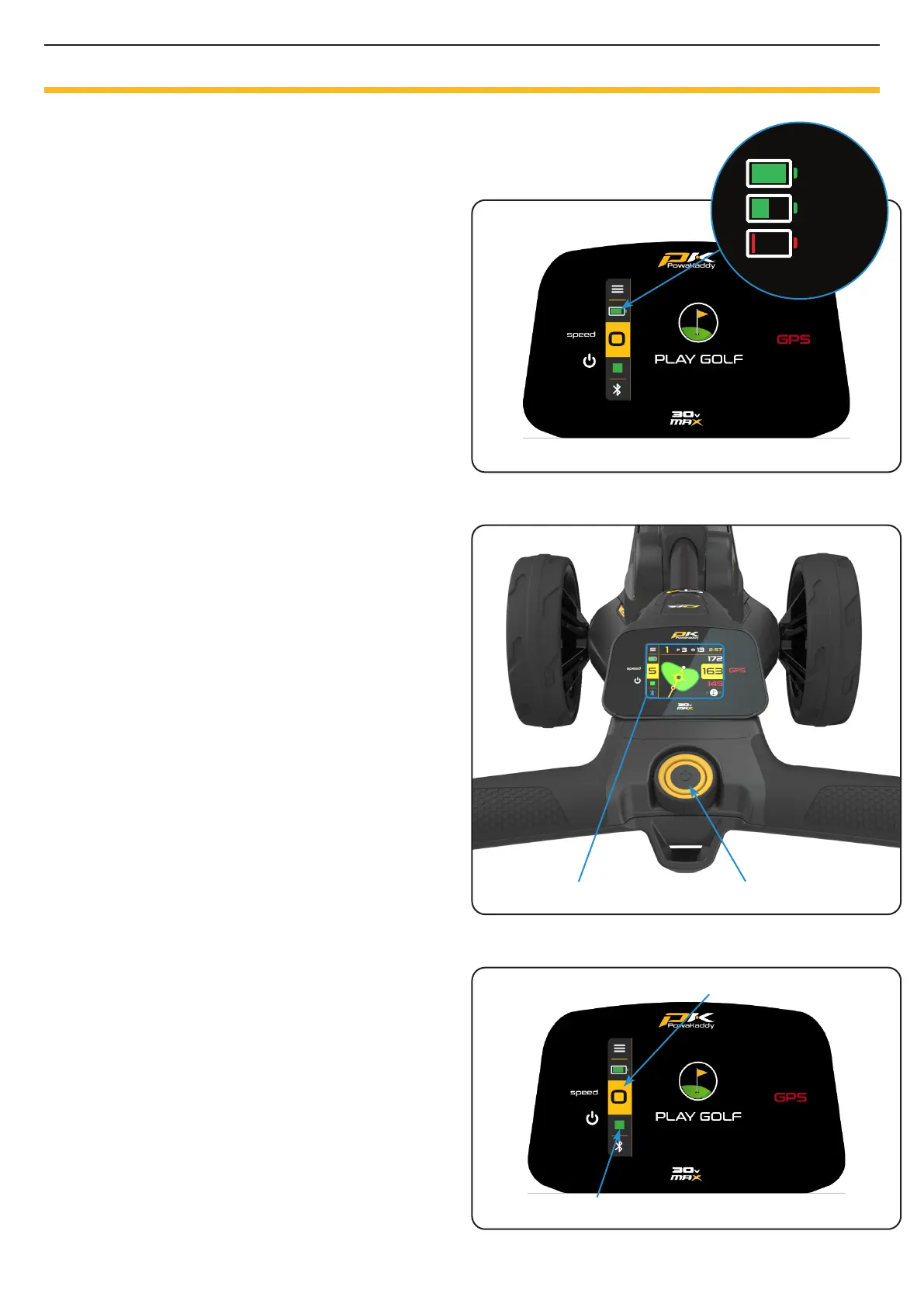

CONTROLS OVERVIEW
Battery Gauge
Touch Area Central Control Dial
Power Indicator
Speed Setting
Full
Charge
Half
Charge
Empty
