POWER DRIVE SYSTEMS
DUNLITE UVR100 AUTOMATIC VOLTAGE REGULATOR
6
REMOTE VOLTAGE CONTROL
Terminals PP
The UVR100 regulator has remote voltage facilities where the voltage range can be varied up to 10%.
Remove bridge from PP and fit an external 5K 2W potentiometer. Turn RV1 voltage adjusting
potentiometer on the regulator fully clockwise so as to have full voltage range adjustment on the external
potentiometer.
It is advisable to use screen cable for the remote potentiometer connection as this will prevent noise from
being transmitted to the AVR and causing voltage stability problems.

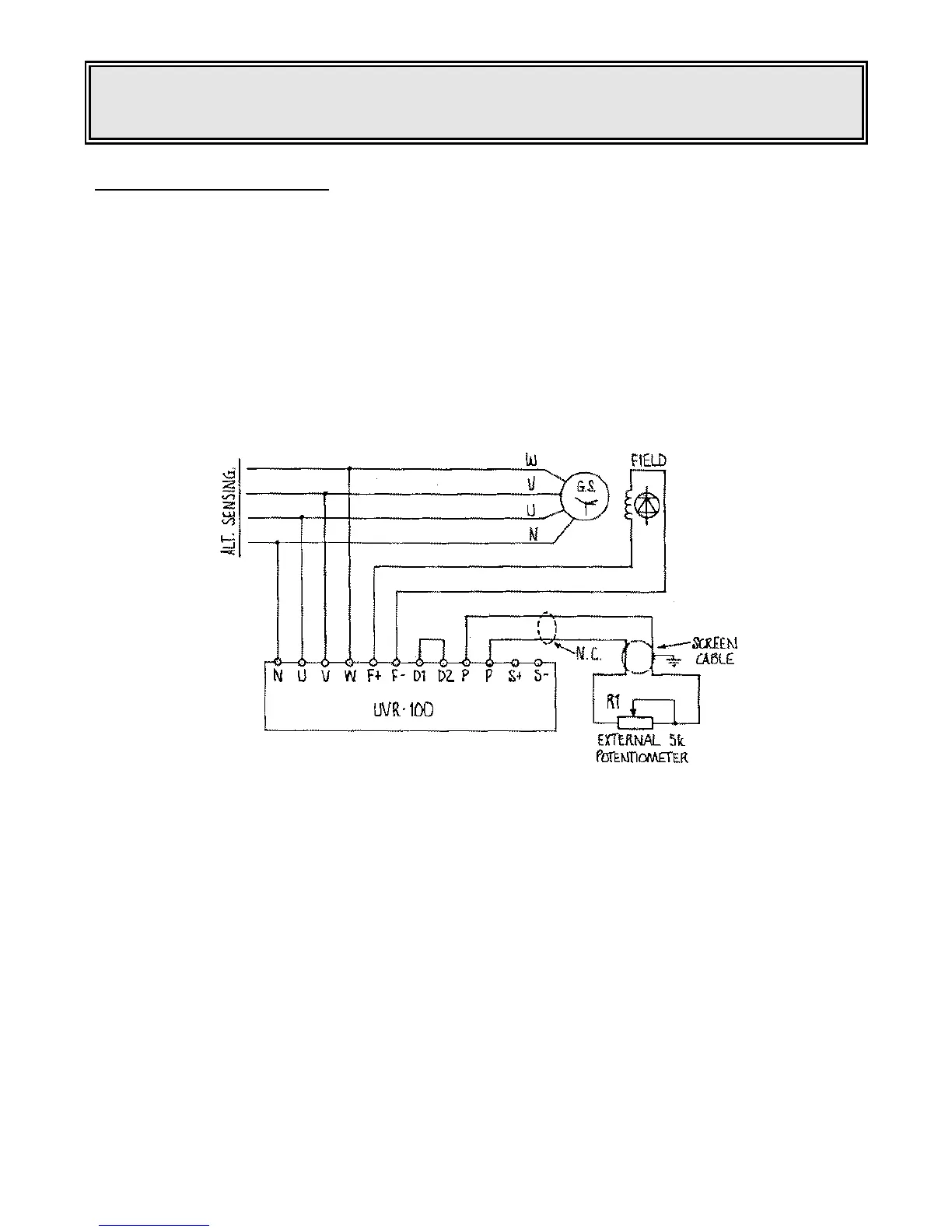

See Figure 3.
Figure 3
