6

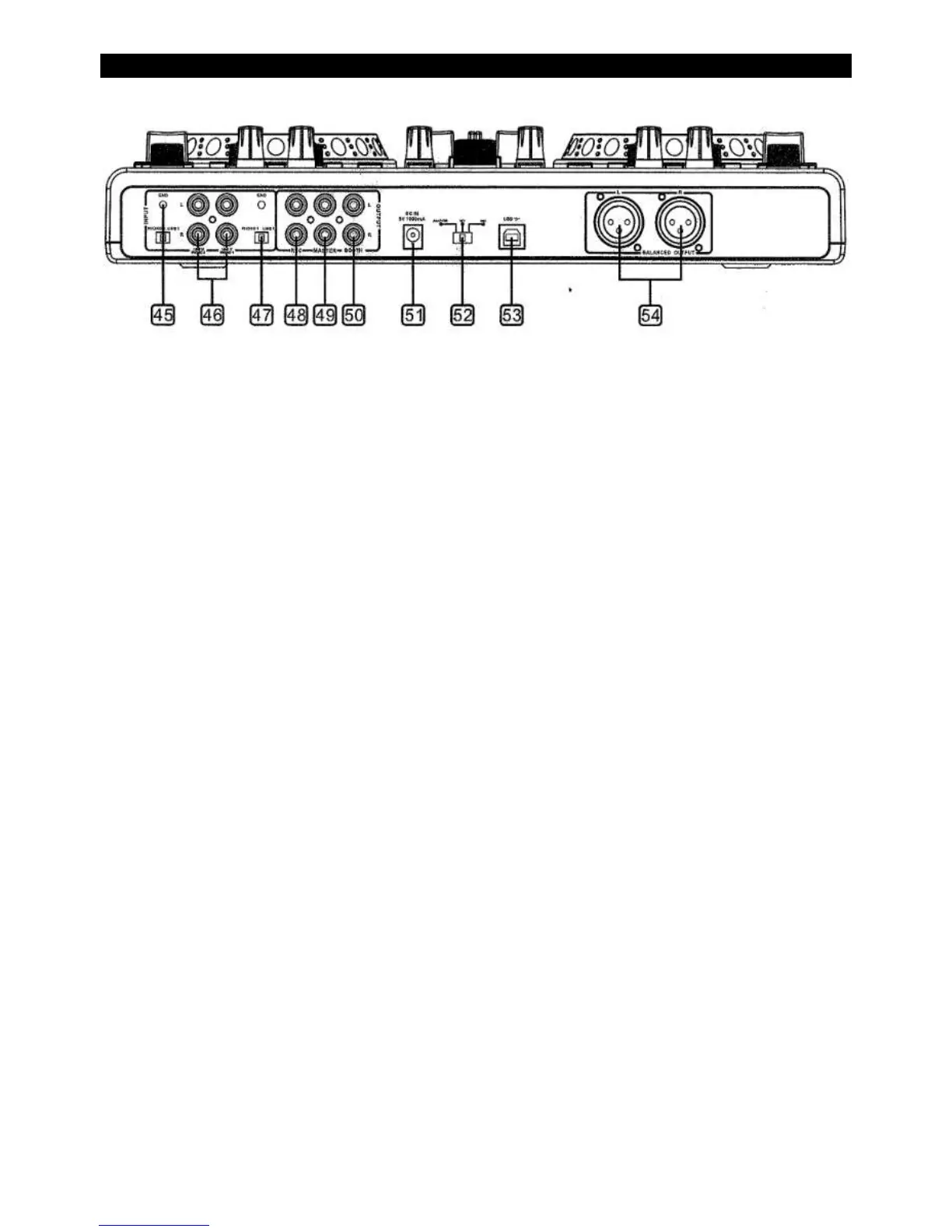

REARPANEL
45. Grounding screw
If you intend to use a turntable, you will need to ground the RCA cable(s) by screwing in the grounding
fork(s) to the grounding screw located on the rear panel of the mixer.
46. Convertible line/phone RCA input
The unit has a convertible line/phone RCA input that accepts a standard dual L&R RCA connection.
47. Phone/Line switch
This small switch allow you to convert the RCA input connection between a phone (turntable) input or a
Line Level (MP3, CD, cassette deck, etc.)input The unit has a convertible Line/phone RCA.
48. Recording output REC
Stereo output (RCA) for connecting a recording unit. The recording level is independent of the output
controls: master control, master level and booth volume.
49. Master output, unbalanced
Un-balanced stereo output (RCA) for connecting an amplifier or other units with line level inputs. The
output supplies an audio signal coming from the computer or the signal of an external source at the line
input depending on the position of the selector switch PC/Line.
50. Output booth
Stereo output (RCA) for connecting a further amplifier, e.g. for the monitoring system or PO application in a
secondary root. The output supplies an audio signal coming from the computer or the signal of an external
source at the line input depending on the position of the selector switch PC/Line.
51. Power input
For connecting the unit alternatively to power supply via the adapter connection (power adapter not
included).
52. Power selector switch
Position adaptor: power supply is via the included power unit position off: controller is power off position
USD: power supply is via the USB connection
53. Power input
For connecting the unit to power supply via the USB connection.
54. Master output, balanced
Independently adjustable balanced stereo output (XLR) of the master signal for connecting an amplifier or
other units with line level inputs. The output supplies an audio signal coming from the computer or the
signal of an external source at the line input-depending on the position of the selector switch PC/Line.
