Select PWE_O5DD.GSD file.
Then, create a new project and insert a master and a slave.

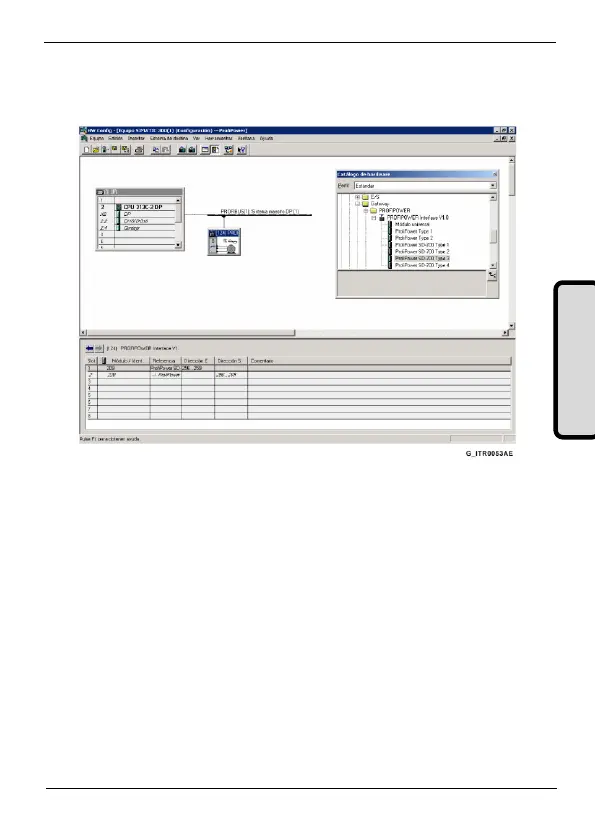

Figure 4.2 Screen 2 of GSD file installation
Once inserted the slave, a module should be assigned to this slave,
and should be configured correctly. For that reason, it is
fundamental to know how many registers are going to be written and
how many registers are going to be read.
All of the modules available in the Profibus board are described in
the following section.
