PROGRAMMING FOR STEP 7
5.2. Monitoring and Modification of Modbus
Registers
The following figure shows a value table created with Step7 for
monitoring and modifying Modbus registers. This table corresponds to
a Profibus board configuration with the Profipower SD700 Type 3
Module.

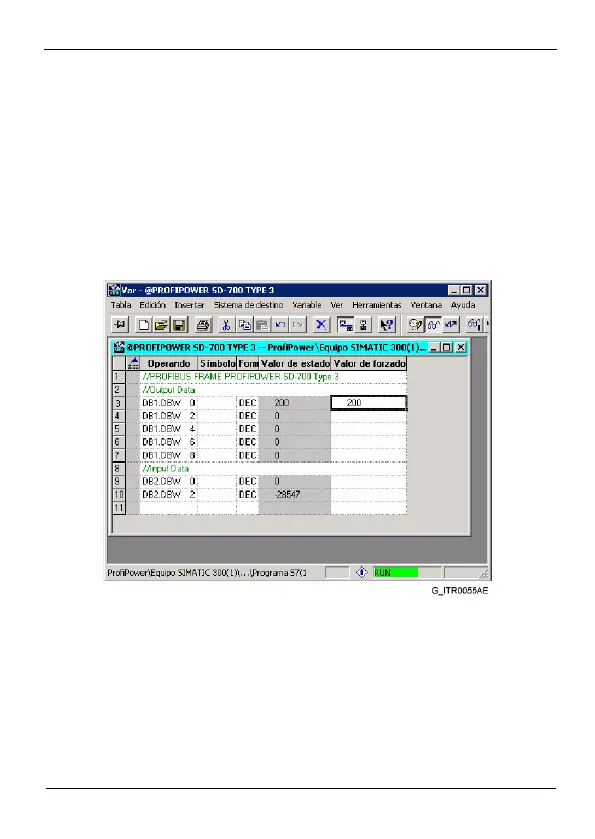

Figure 5.1 Monitoring and modification of Modbus registers
