SD700 – PROFIBUS
POWER ELECTRONICS
28
TRIAL RUN
4.2. Trial Run with Siemens (Step 7 Set-up)
4.2.1. Installation of GSD File
Install GSD file with the hardware configuration tool of the SIMATIC
administrator.

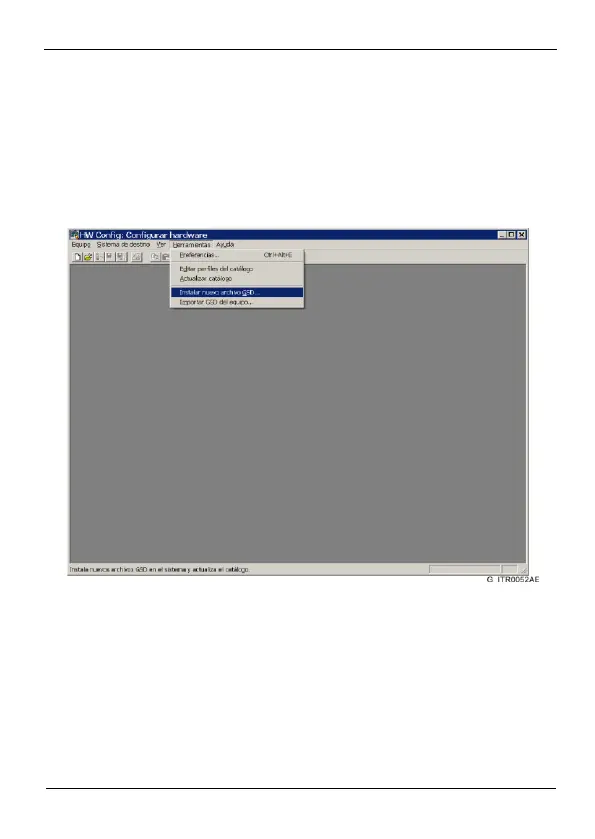

Figure 4.1 Screen 1 of GSD file installation
