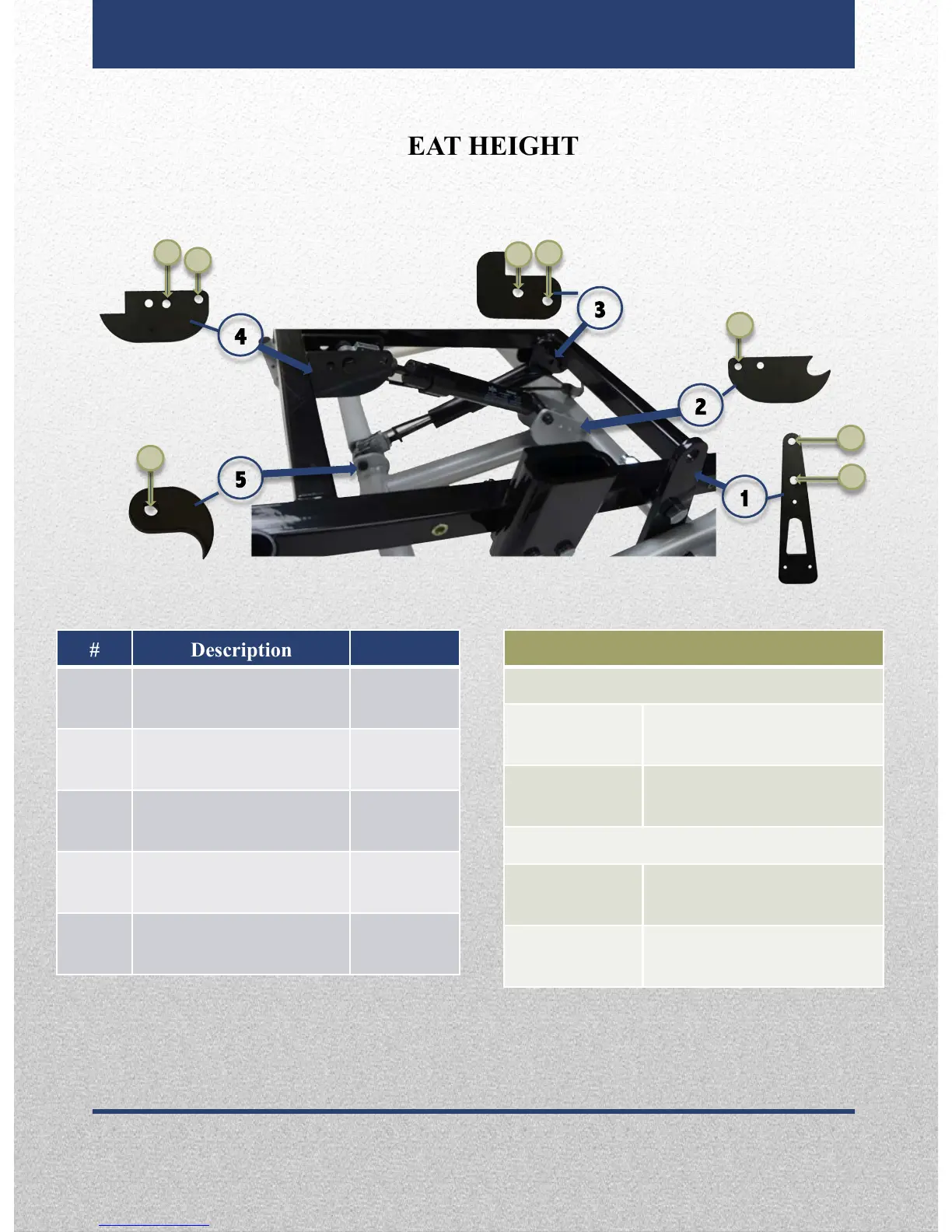

CYLINDER SET UP FOR SEAT HEIGHT BY FRAME
# Description Quantity
1 Frame Height
Adjustment Bracket
2
2 Lower Frame Cylinder
Mount Bracket (Rear)
2
3 Upper Frame Cylinder
Mount Bracket (Rear)
2
4 Upper Frame Cylinder
Mount Bracket (Front)
2
5 Lower Frame Cylinder
Mount Bracket (Front)
2
4
5
2
1
3
Seat Height Adjustments By Frame
Standard Frame
Frame
Bracket (1)
Cylinder
Mount
1A 5A/3A (Right Cylinder 500N)
4B/2A (Left Cylinder 400N)
Low Frame
Frame
Bracket (1)
Cylinder
Mount
1B 5A/3B (Right Cylinder 500N)
4A/2A (Left Cylinder 400N)
A
B
A
A
B
A
B
REAR
FRONT
A
Weight Setup
0-165 lbs: 400 N (left) x 500 N (right)
165-225 lbs: 200 N (left) x 1000 N (right)
