Power smart 196cc - WIRING DIAGRAMS; Wiring Diagrams for Electric Start Engines

24

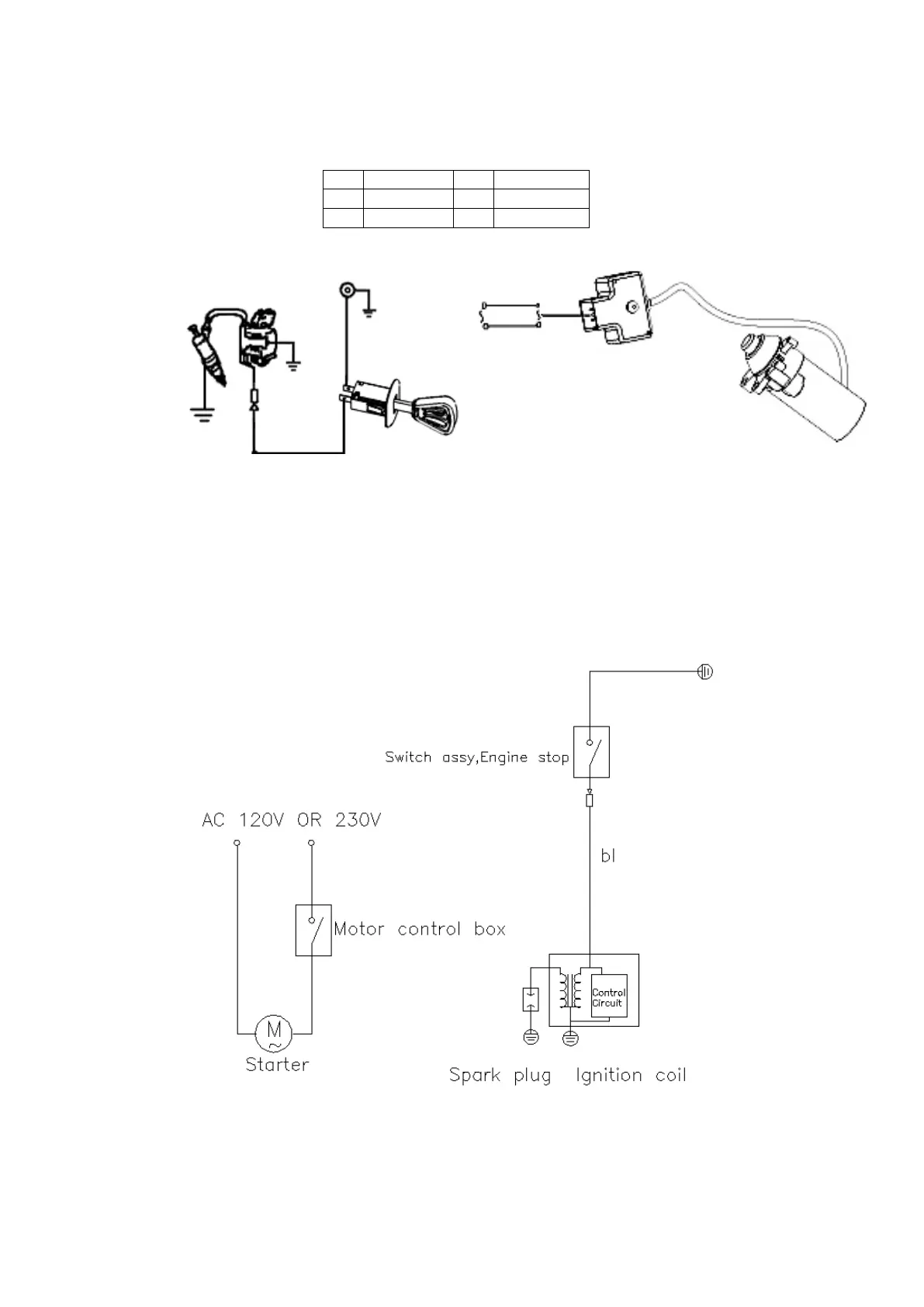

11. Wiring Diagrams
Engine Type With 120V or 230V Electric starter
Bl BLACK Br BROWN
Y YELLOW R RED
W WHITE G GREEN
TRANSISTORIZED
IGNITION
UNIT
IDLE SPEEG SWITCH
ENGINE SWITCH
SPARK PLUG
Circuit
