3. CONTROLS
1)Engine Switch
The engine switch enables and disables the ignition system.
The engine switch must be put in for the engine to run.
Putting out the engine switch to stops the engine.
2) Choke Lever
The choke lever opens and closes the choke valve in the carburetor.
The CLOSE position enriches the fuel mixture for starting a cold engine.
The OPEN position provides the correct fuel mixture for operation after starting, and for
restarting a warm engine.

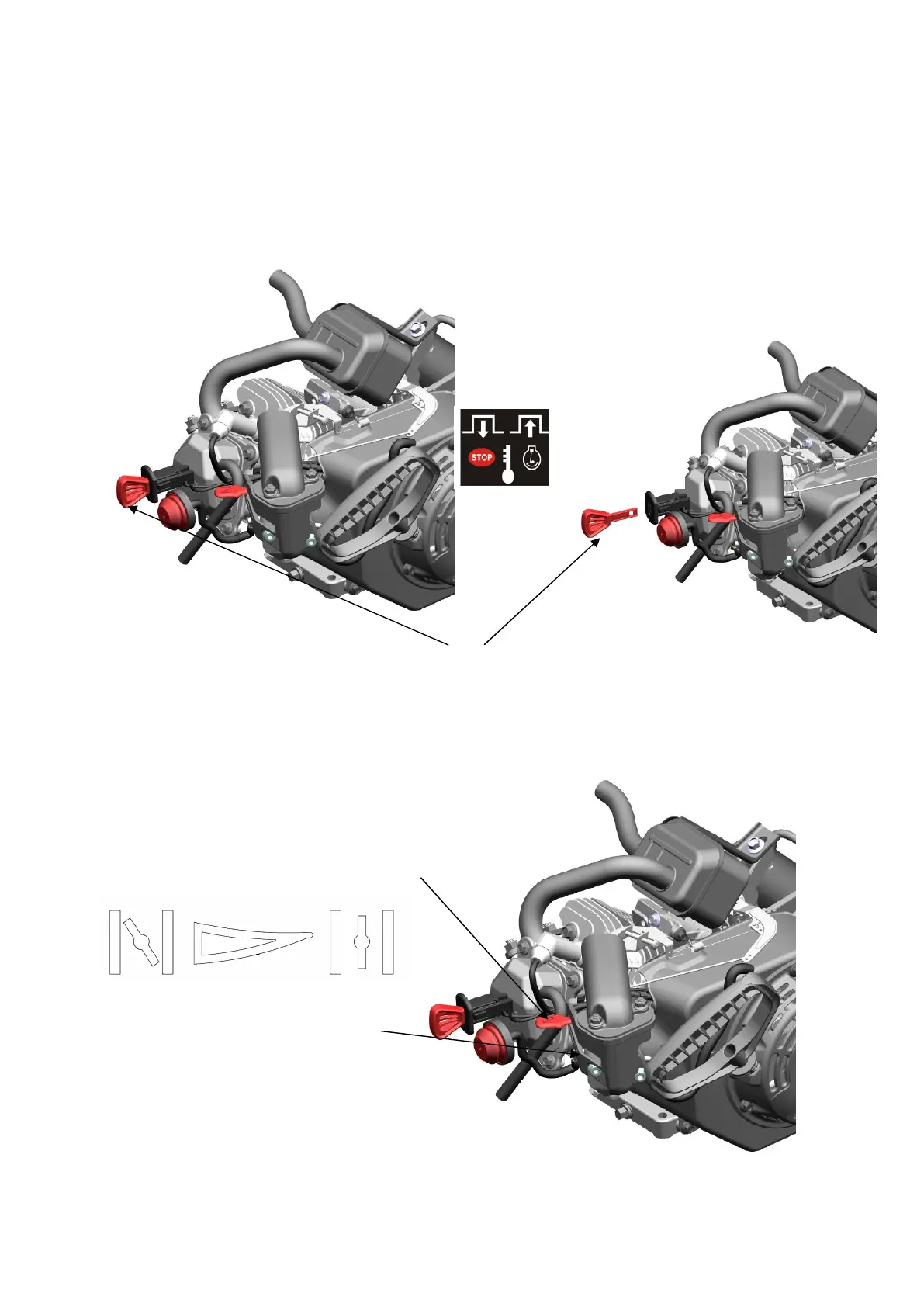

CHOKEL LEVER
IN-ON
ENGINE SWITCH
OUT-OFF
CHOKEL VALVE POSITION SYMBOL
CLOSE OPEN

Power smart 196cc Specifications

General

Type	Single cylinder, 4-Stroke, Forced Air Cooling, OHV
Bore×Stroke(mm)	68×54
Displacement(cc)	196
Net power(kW/3600rpm)	4.1
Net torque (N·m/rpm)	12.4/2500
Fuel consumption (g/kW·h)	≤395
Speed Fluctuating Ratio	≤10%
Compression Ratio	8.5:1
P.T.O shaft rotation	Anti-clockwise(from P.T.O. side)
Oil capacity(L)	0.6
Noise(≤)	70dBA
Lubricating mode	Splash
Starting Mode	Recoil start / Electric starting
Valve Clearance	input valve：0.10~0.15mm, output valve：0.15~0.20mm
Spark plug clearance	0.7~0.8mm
Igniting Mode	Transistorized magneto Ignition
Air cleaner	No filter

Weight and Dimensions

Dimension(L×W×H) (mm)	382×354×276
