Power smart DB7624E User Manual

27

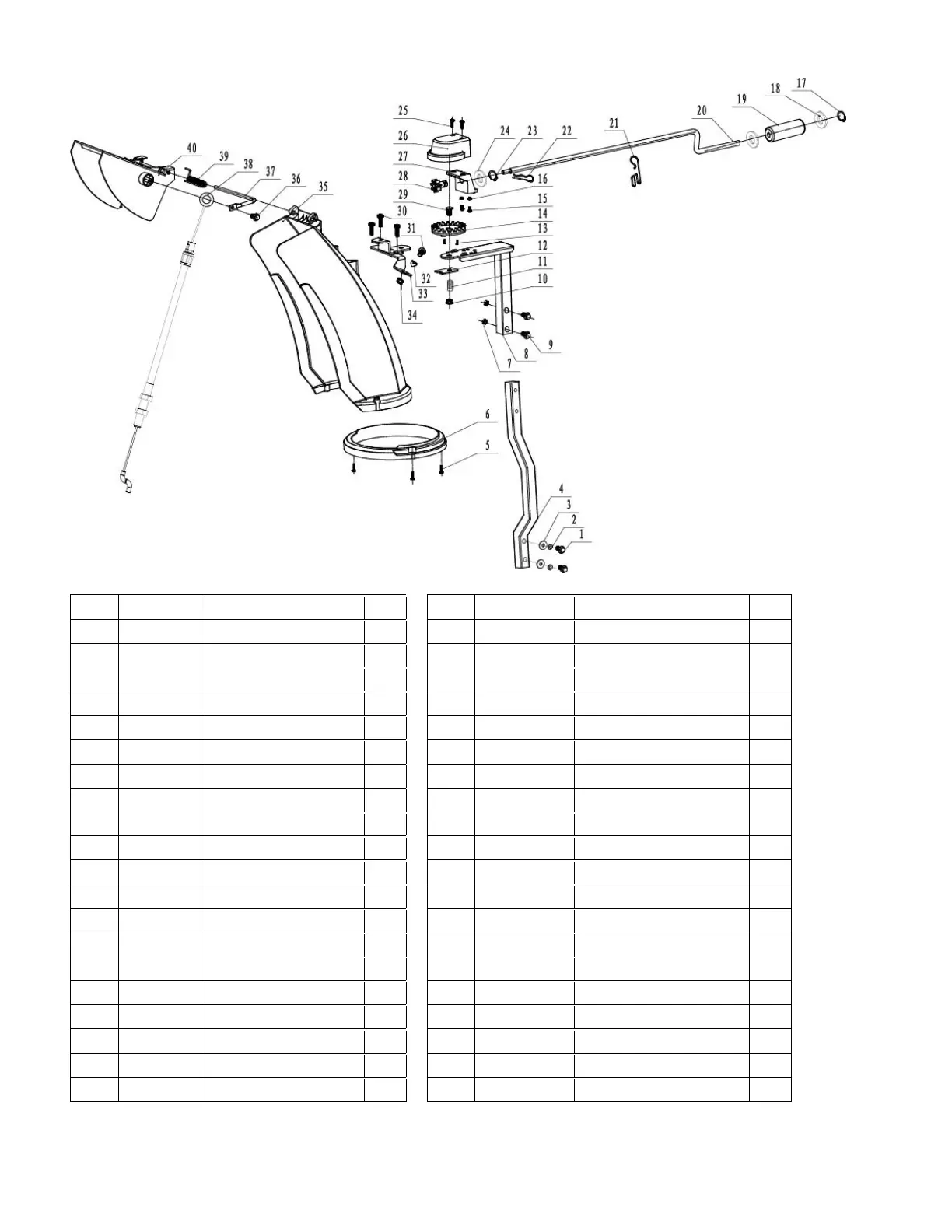

Chute Assembly
Item Stock # Description Qty Item Stock # Description Qty
1
303020275
Bolt M8x40 2 21
303130339
Clip 1
2
303041022
Spring Washer 8 2 22
303160737
Cutter Pin 1
3
303042023
Flat washer 8 2 23 303050032 Snap Ring 13 1
4
303080523
Support Tube 1 24 303042130 Flat Washer 13 1
5
303010176
Screw 3 25
303010270
Screw 4x14 2
6 203010820 Discharge Chute Seat 1 26
203010825
Steering Gear Cover 1
7
303030087
locknut M6 2 27
203010818
Gear Holder 1
8 303180953 Chute Direction Base 1 28
303060131
Steering Pinion Gear 1
9
303020546
Flange Bolt M6x40 2 29 303020165 Square Neck Bolt M8×55 1
10 303030077 Locknut M8 1 30
303010176
Screw 6x16 3
11 303130325 Spring 1 31
303020246
Flange Bolt M6×16 1
12 303071021 Bracket 1 32 303071025 Tension Bracket 1
13
303010270
Screw 4x14 2 33
303071017A
Gear Bracket 1
14 203021301 Steering Gear 1 34
303030032
Locknut M6 1
15 303020246 Flange Bolt M6x16 2 35 203050376 Discharge Chute 1
16 303030032 Locknut M6 2 36
303010176
Screw 6x16 1
17 303050029 Snap Ring 10 1 37 303160657 Fixed Link 1
18 303042004 Flat Washer 10 2 38
302080047
Chute Deflector Cable 1
19 203020371 Chute Direction Knob 1 39 303130324 Tension Spring 1
20 303160662 Z-lever 1 40 203050377 Chute Deflector 1
