26

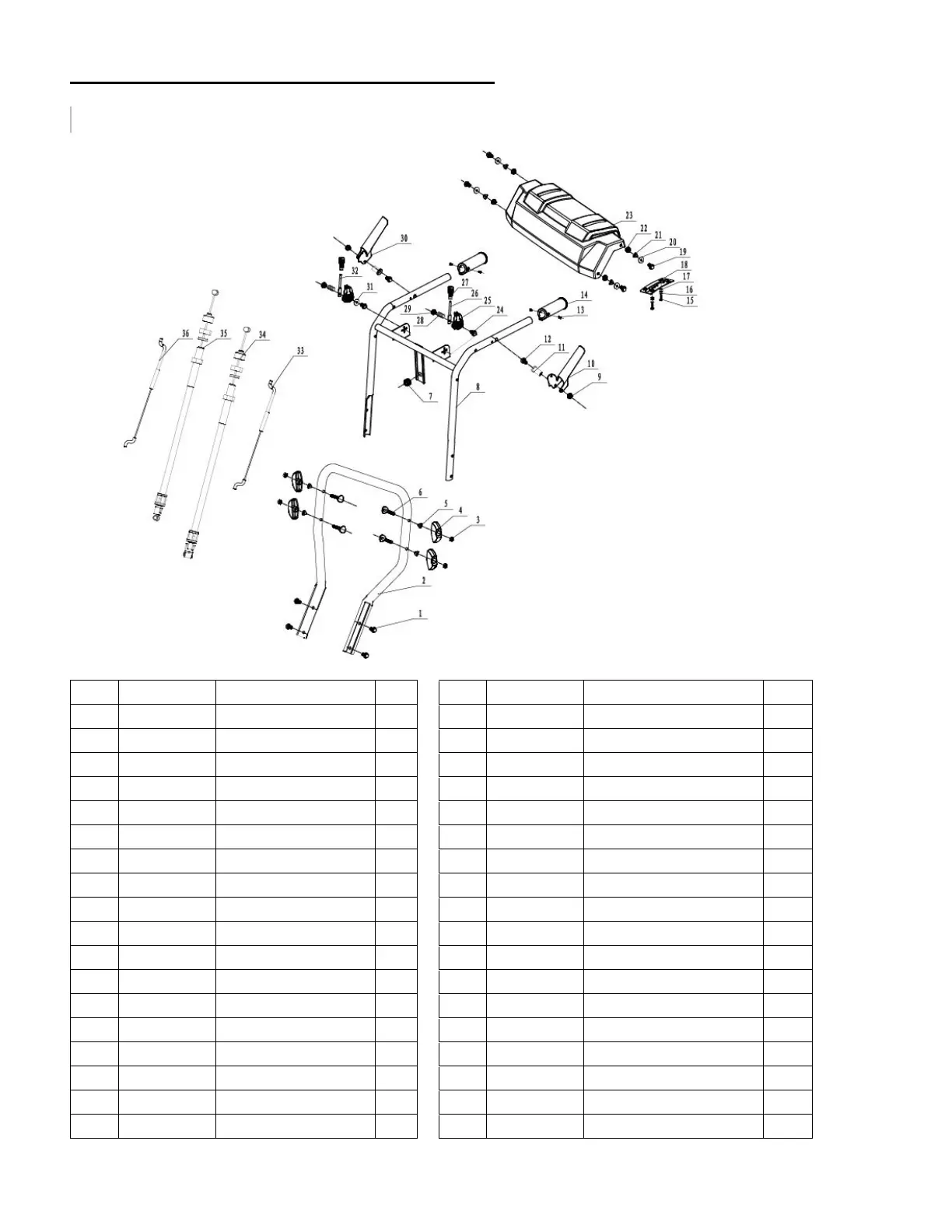

EXPLODED VIEW AND PARTS LIST
Panel Assembly
Item Stock # Description Qty
Item Stock # Description Qty
1
303020240
Flange Screw M8×20 4
19 303020275 Flange Screw M8x40 4
2
303080530
Lower Handle 1
20 303042013 Flat Washer 8 4
3
303030026
Nut M8 4
21 303043010 Saddle Washer 8 4
4
203020865
Knob 4
22 303030036 locknut M8 4
5
303043010
Saddle Washer 8 4
23 203050373 Operation Panel 1
6
303020139
T-screw M8X55 4
24
303020312
Flange Screw M8×55 2
7 203020881 Rubber Washer 1
25 203021099 Cable Holder 2
8 303180951 Upper handle 1
26 303071016 Control Rod 1
9 303030025 Cap Nut M6 2
27 203070079 Knob 2
10 303070273B Auger Control 1
28 303130074 Press Spring 2
11 303160235 Spacer 2
29
303020380
Locknut M8 2
12 303020297 Flange Screw M6×4 2
30 303070272B Drive Control 1
13 303010237 Screw ST4x10 4
31 203020380 Tooth Washer 1
14 203070007 handle Grip 2
32
303160748
Shift Control Rod 1
15 303010176 Screw M6x16 2
33
303200103
Upper Auger Cable 1
16 303042042 Flat Washer 6 2
34
303200104
Shift Control Cable Right 1
17 303160746 Cushion Cover 2
35
303200105
Shift Control Cable Left 1
18 303071057 Shift Plate 1
36
303200106
Upper Drive Cable 1
To Next Page
