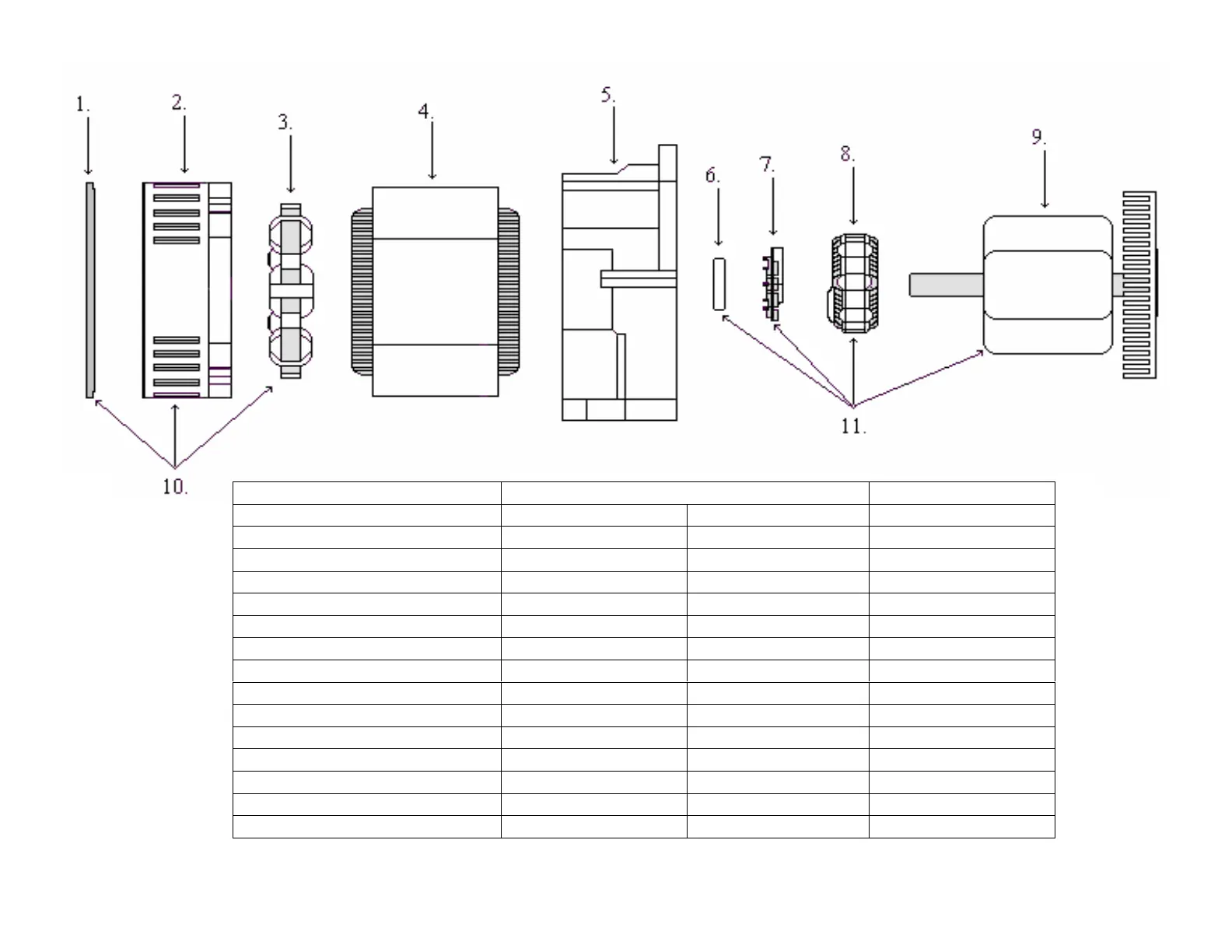

Power Tech Generators PT-8000 User Manual

DESCRIPTION PART NUMBER
8KW 10KW 12KW
1. BEARING PLATE 02BR-CR 02BR-CR 02BR-CR
2. END BELL 02H7810 02H10KW-CR 02H10KW-CR
3.EXCITER STATOR 02STA8EXC 02STA10EXCR 02STA12EXCR
4. MAIN STATOR 02STAMNCD8 02STACI7210 02STAMN12
5. BELL HOUSING ** 02BHTPU7 02BHTPU7 02BHTPU7
6. ROTOR BEARING 02BRG6206 02BRG6206 02BRG6206
7. DIODE PLATE 02PLD8CD 02PLD8CD 02PLD8CD
8. EXCITER ROTOR 02RTR8EXC 02RTR10EXCR 02RTR12EXCR
9. MAIN ROTOR 02RTRMN8EXC 02RTR10E 02RTR12E
10. END BELL ASSEMBLY 02EB8 02EB10 02EB12
11. MAIN ROTOR ASSEMBLY 02RTR8EXC-ASSY 02RTR10EXC-ASSY 02RTR12EXC-ASSY
12. END PLATE ASSEMBLY 02EP8 02EP10 02EP12
GENERATOR ASSEMBLY 02GENCD8E 02GEN10EXCR 02GEN12EXCR
VOLTAGE REGULATOR 06REG24 06REG24 06REG24
** NOTE: Item #5 BELL HOUSING is not part of the Generator End assembly.
