For Technical Support:

Visit our website at: www.power-tronics.com

Call Us at: (830) 895-4700

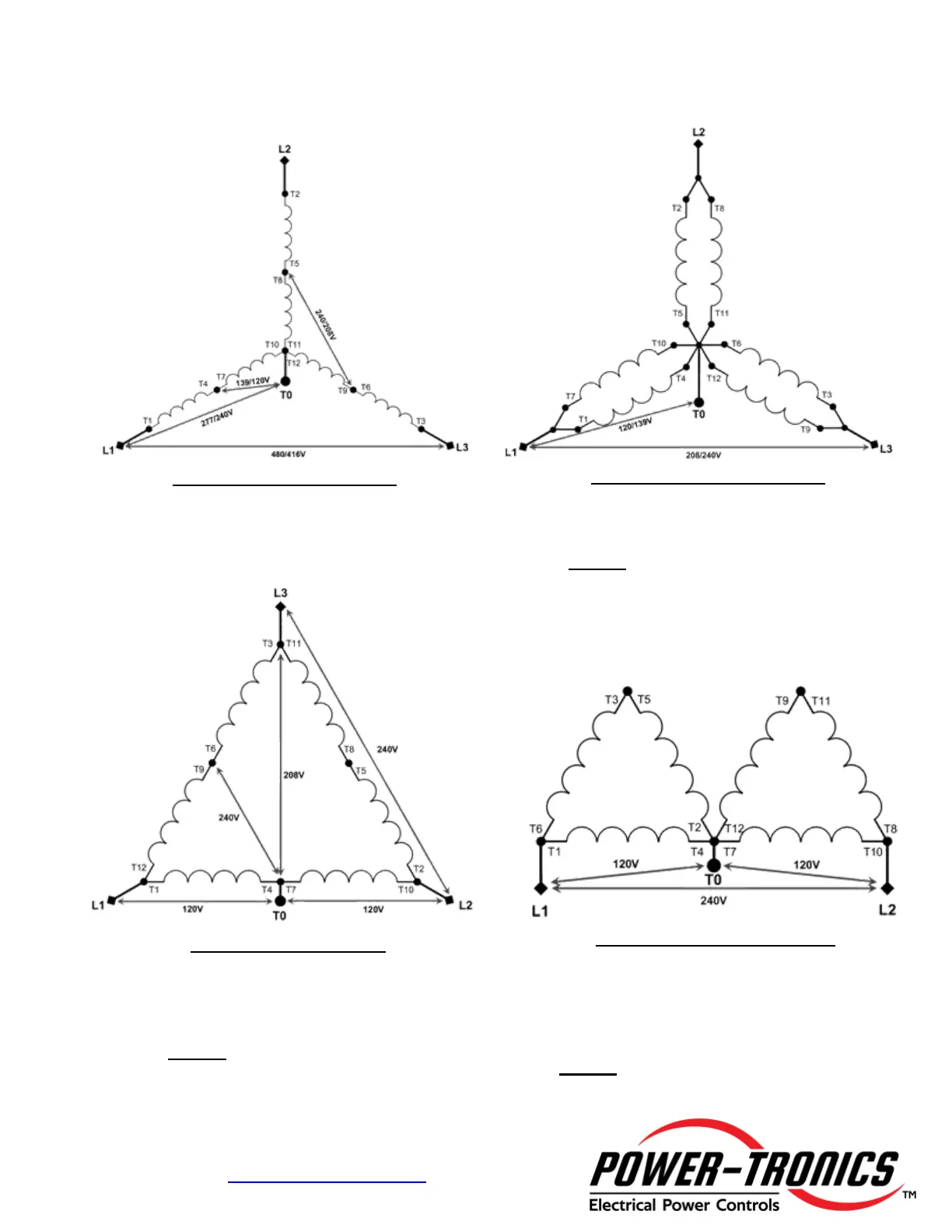

Common 12-Lead Generator Wiring Diagrams

Series Wye (416/480V 3ø)

Voltage L-L: 416/480V

Voltage L-N: 240/277V

Voltage CT – N: 120/139V

Parallel Wye (208/240V 3ø)

Voltage L-L: 208/240V

Voltage L-N: 120/139V

NOTE: 208V is Standard Voltage

Series Delta (240V 3ø)

Voltage L-L: 240V

Voltage L1/L2-N: 120V

Voltage L3 – N: 208V

NOTE: L3-N is a “High Leg”

208V instead of 120V!

Double-Delta (120/240V 1ø)

Voltage L-L: 240V

Voltage L-N: 120V

Preferred Single-Phase Connection.

Don’t Use Zig-Zag if Possible.

NOTE: Derate generator by 1/3 rated

capacity when using this connection!
